Five Heddle Weave Stainless Steel Wire Screen 10um To 200um

  • Five Heddle Weave Stainless Steel Wire Screen 10um To 200um
  • Five Heddle Weave Stainless Steel Wire Screen 10um To 200um
  • Five Heddle Weave Stainless Steel Wire Screen 10um To 200um
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Delivery Time 40 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Excellent Flow Rate Product Name Five - Heddle Weave Wire Mesh
Material Stainless Steel Standard AISI, DIN
Surface Bright Silver Weaving Type Five Heddle Weave
Absolute Filter Rating 10um To 200um Roll Width 0.1m To 1.2m
Roll Length 30m Standard Application Cleaning, Slitting, Shearing, Calendaring, Stretching & Annealing.
Highlight

TENGLU 10um stainless steel wire screen

,

TENGLU 200um stainless steel wire screen

,

200um Five Heddle Weave stainless wire cloth
Leave a Message
Product Description

Five Heddle Weave Wire Mesh With Excellent Flow Rate Stainless Steel Dutch Wire Mesh

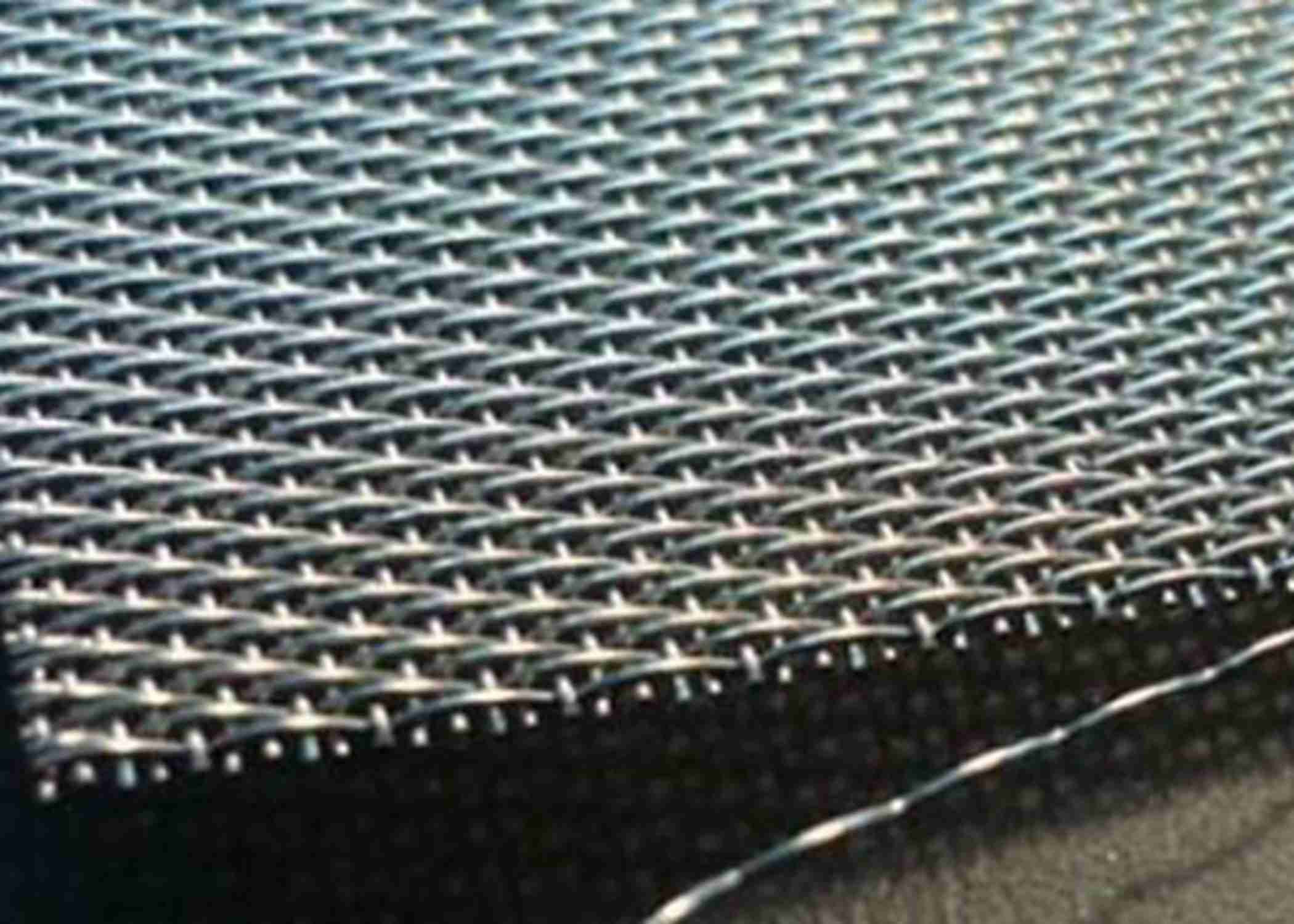

Five Heddle Woven Stainless Steel Wire Cloth Introduction



Five Heddle Weave Wire Mesh is fabricated by passing every warp wire alternately up and down each single and four Shute wires and vice versa. The pattern is staggered on successive warp wires, providing a facade of parallel diagonal lines. This weave permits the use of comparatively heavier wires in the specific mesh count than recommended in other weaves. It is extensively used in supporting the heavier loads.



Five Heddle Weave Wire Mesh offers a rectangular opening. Its exclusive design supports improved drainage and flow features. The smooth surface on one side is commonly used in the petroleum and chemical filtration industries.



It is a special weaving pattern that makes it feasible to produce open meshes with high flow rates and superior mechanical stability. Simultaneously, it offers a smooth surface for easy eradication of produced cake and convenient cleaning of filter cloth.





Specifications



Standard Width: 1.0m or 48"

Standard Length: 30m or 100ft



Mesh/Inch Wire Diameter Weight Thickness
Warp Weft Warp (mm) Weft (mm) kg/㎡ mm
132 85 0.14 0.2 1.47 0.44
107 132 0.16 0.14 1.3 0.44
107 125 0.16 0.14 1.27 0.45
107 59 0.16 0.16 1.09 0.45
80 60 0.2 0.2 1.4 0.55
77 40 0.24 0.24 1.65 0.68
65 36 0.3 0.3 2.27 0.84
55 36 0.3 0.3 2.05 0.84
48 45 0.4 0.4 3.79 1.11
48 45 0.29 0.29 2 0.83
48 25 0.3 0.3 1.64 0.82
30 18 0.5 0.5 3 1.48
28 17 0.47 0.47 2.53 1.41
24 20 0.6 0.6 3.96 1.7
15 13 0.9 0.9 5.67 2.6


Other size according to your requirements.



SS304, SS316 Series Five Heddle Weave Wire Mesh With Excellent Flow Rate



Material:



SS304, SS304L, SS316, SS316L. Pure metal, heating alloy, nickel alloy materials are available.



Weave Type:

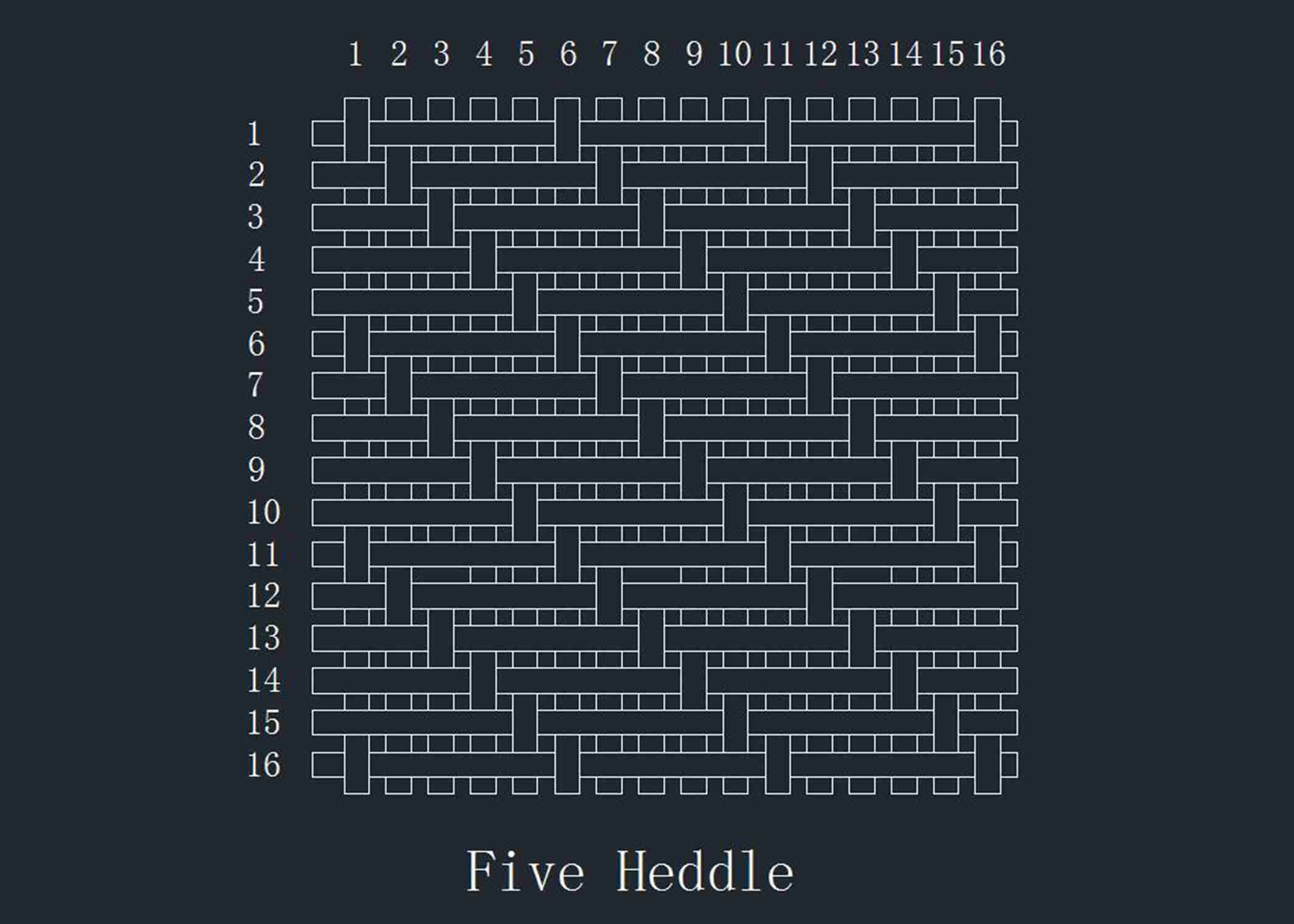

Each warp wire alternately goes under and above each one and four weft wires, and each weft wire goes under and above each one and four warp wires alternately.

SS304, SS316 Series Five Heddle Weave Wire Mesh With Excellent Flow Rate



Features:



It is feasible to produce open meshes with high flow rates and superior mechanical stability. Simultaneously, it offers a smooth surface for easy eradication of produced cake and convenient cleaning of filter cloth.



Applications:



Five Heddle Weave Mesh is used as pressure and vacuum filters and filter candles. Commercial woven wire mesh is used in the petroleum filtration in the chemical houses. It is suitable for drum filter equipment and disc filters where the filter cake removal and cleaning is done in the continuous cycles. It is used in the mining industry, waster water processing and processed water filtration. The smooth surface on one side is commonly used in the petroleum and chemical filtration industries.



Packing:



Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.





Robusta Wire Mesh Excellent Filtration Stainless Steel Dutch Wire Mesh 3



Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
