0.1m To 1.2m Stainless Steel Dutch Wire Mesh Wear Resistance

  • 0.1m To 1.2m Stainless Steel Dutch Wire Mesh Wear Resistance
  • 0.1m To 1.2m Stainless Steel Dutch Wire Mesh Wear Resistance
  • 0.1m To 1.2m Stainless Steel Dutch Wire Mesh Wear Resistance
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Delivery Time 40 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Mechanical Stability Product Name Reverse Plain Dutch Weave Wire Mesh
Material Stainless Steel Standard AISI, DIN
Surface Bright Silver Weaving Type Reserve Plain Dutch Weave (RPDW)
Absolute Filter Rating 10um To 200um Roll Width 0.1m To 1.2m
Roll Length 30m Standard Application Filtration Industry
Highlight

0.1m Stainless Steel Dutch Wire Mesh

,

0.1m Wear Resistance Stainless Steel Dutch Wire Mesh

,

0.1m 1.2m stainless wire mesh
Leave a Message
Product Description

Reverse Plain Dutch Weave (RPDW) High Mechanical Stability Stainless Steel Dutch Wire Mesh



Stainless steel reverse dutch wire mesh Introduction:



Reverse Dutch Weave Wire Mesh involves in plain weave pattern, with many wires in warp direction having a thin diameter and relatively few wires in weft direction having a large diameter.



Reversed plain dutch weaves or PZ microdur weave combine the properties of fine metal wire meshes with high mechanical stability which, are key properties for the specialized requirements of solid-liquid filtration. In many cases, reversed plain dutch weave mesh is referred to as reverse woven plain dutch weave mesh or robusta mesh. Applications include pre-coat filters, filter candles, vacuum filters and spring filters.





Robusta Mesh Specifications



Mesh/Inch

(Warp x Weft)

Wire Diameter

(Warp x Weft)

 Absolute Filter Rating(um)
(mm) (inch)
63 x 18 0.40 x 0.60 0.0157 x 0.0236 220
72 x 15 0.45 x 0.55 0.0177 x 0.0216 200
107x 20 0.24 x 0.60 0.0094 x 0.0236 210
130 x 35 0.20 x 0.40 0.0079 x 0.0157 80
132 x 16 0.24 x 0.60 0.0094 x 0.0236 200
132 x 32 0.20 x 0.40 0.0079 x 0.0157 105
140 x 40 0.19 x 0.38 0.0075 x 0.015 100
152 x 24 0.30 x 0.40 0.0118 x 0.0157 160
170 x 40 0.20 x 0.45 0.0079 x 0.0177 130
171 x 46 0.15 x 0.30 0.0059 x 0.0118 85
175 x 40 0.15 x 0.38 0.0079 x 0.0157 70
175 x 50 0.15 x 0.30 0.0059 x 0.0118 60
180 x 120 0.088 x 0.10 0.0035 x 0.004 75
200 x 120 0.08 x 0.10 0.0031 x 0.004 70
280 x 70 0.09 x 0.21 0.0035 x 0.0083 40
290 x 75 0.09 x 0.20 0.0035 x 0.0079 55
400 x 125 0.066 x 0.10 0.0026 x 0.0039 50
600 x 100 0.04 x 0.14 0.00157 x 0.0055 25
600 x 125 0.042 x 0.125 0.00165 x 0.0049 20
615 x 102 0.04 x 0.16 0.00157 x 0.0063 42
615 x 130 0.04 x 0.13 0.00157 x 0.0051 22
625 x 133 0.04 x 0.13 0.00157 x 0.0051 17
720 x 150 0.036 x 0.10 0.0014 x 0.0039 17
850 x 155 0.03 x 0.10 0.0012 x 0.004 10

Othere specifications according to your requests.



Features:



Stainless steel reverse dutch wire mesh offers good wear-resistance, acid-resistance, heat-resistance and corrosion resistance. Key property of reversed plain dutch weave mesh is high mechanical stability.



Material: AISI/SUS304, 304L, 316 or 316L.



Width of roll: 100mm to 1200mm.



Weaving Methods:



Reverse Plain Dutch Weave(RPDW), is referred to as reverse woven plain dutch weave or Robusta mesh.

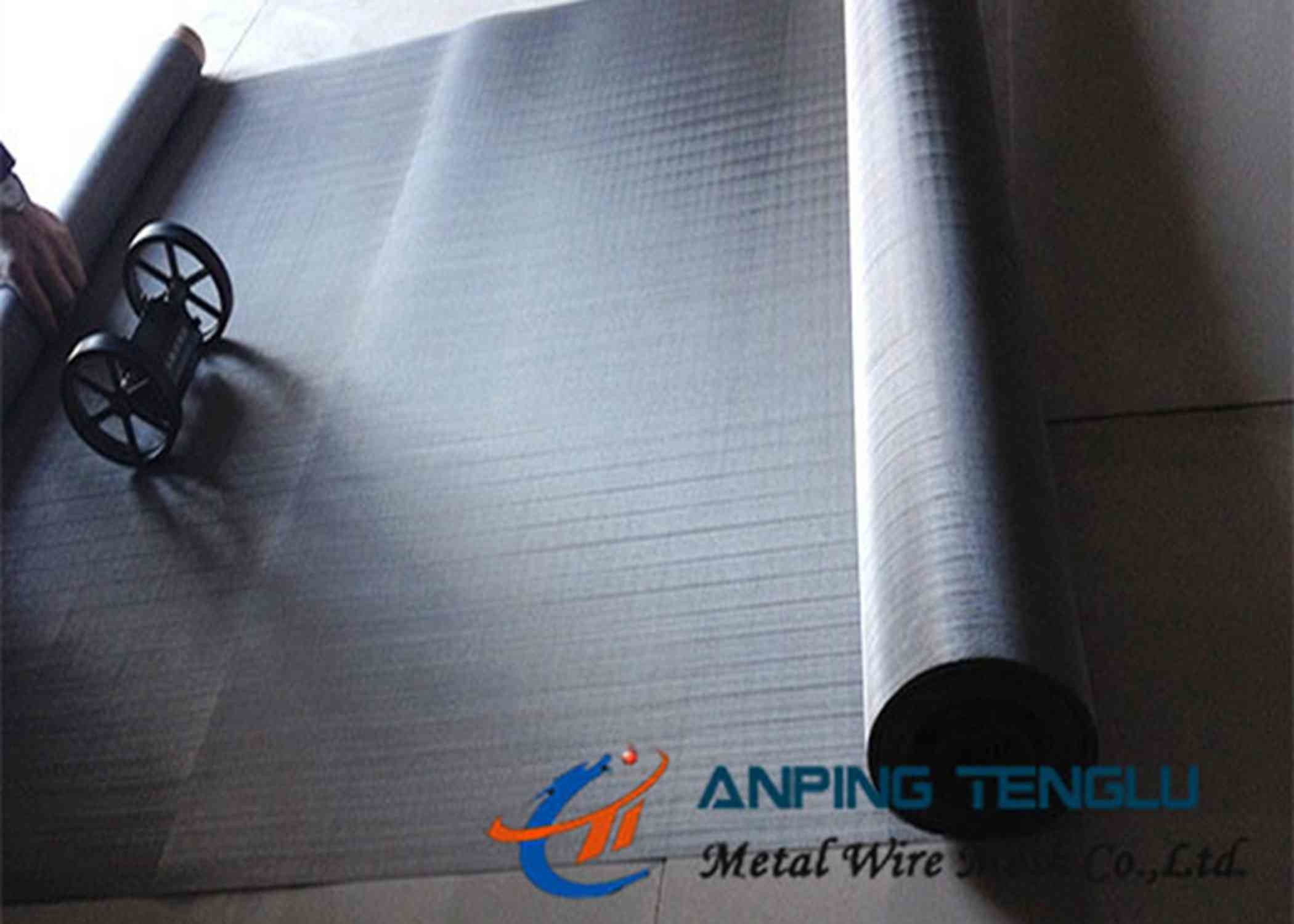

Reverse Plain Dutch Weave(RPDW) Wire Mesh With High Mechanical Stability



Application:


Reverse Dutch Wire Mesh is widely used in aerospace, petroleum, chemical industry, chemical fiber, machinery, plastic products, scientic research, conveying and other industries.



Reverse Plain Dutch Weave(RPDW) Wire Mesh With High Mechanical Stability

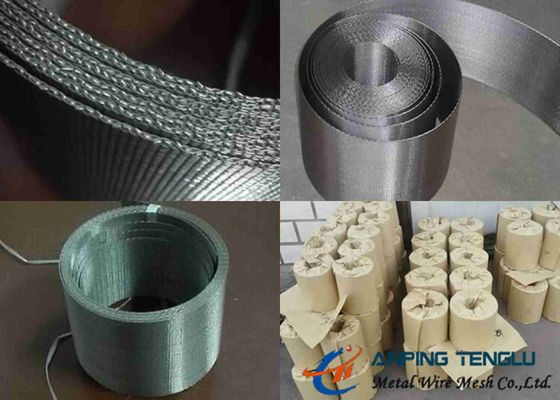

Packing:



Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.





Robusta Wire Mesh Excellent Filtration Stainless Steel Dutch Wire Mesh 3



Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
