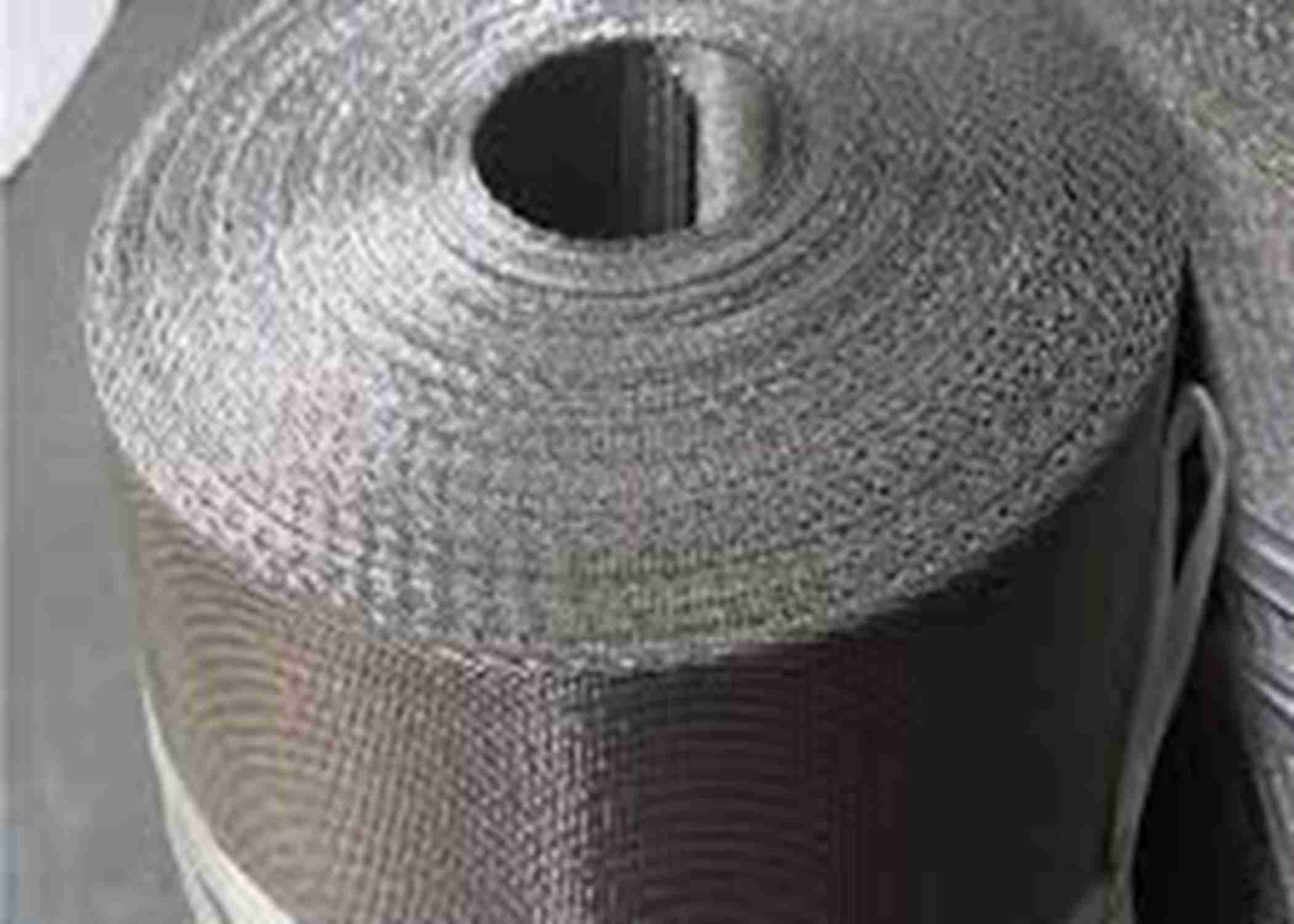

SS300 0.015-1.8mm Stainless Steel Dutch Wire Mesh Bright Silver

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Delivery Time 40 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Excellent Filtration Performance Product Name Dutch Wire Mesh Strip
Material Stainless Steel Standard AISI, DIN
Surface Bright Silver Weaving Type Dutch Weave
Wire Diameter 0.015-1.8mm Roll Width 40mm To 500mm
Roll Length 10m To 20m, Or Customized Application Filtration Industry
High Light

1.8mm Stainless Steel Dutch Wire Mesh

,

0.015mm Stainless Steel Dutch Wire Mesh

,

SS300 stainless steel screen

Leave a Message
Product Description

SS300 Series Dutch Weave Filter Cloth Strip Stainless Steel Dutch Wire Mesh



Stainless Steel Mesh Strip Introduction:


Stainless Steel Mesh Strip, also called stainless steel mesh belt. Can be ised in ribbon style continuous screen changers for plastic extrusion, melt filtration.



Specifications:



Sheet1: Specifications of Plain Dutch Weave Wire Mesh

Mesh/Inch

Warp×Weft

Wire Diameter

Warp×Weft

(mm)

Aperture Size
μm

Weight

kg/㎡

Thickness

(mm)

7×40 0.9×0.71 347 6.65 2.32
7×44 0.71×0.63 319 5.55 1.97
8×45 0.8×0.6 310 5.7 2.00
8.5×60 0.63×0.45 296 4.16 1.53
8×85 0.45×0.315 275 2.73 1.08
10×90 0.45×0.28 249 2.57 1.01
10×76 0.5×0.355 248 3.24 1.21
12×86 0.45×0.315 211 2.93 1.08
12×64 0.56×0.4 3.89 1.36
12.5×76 0.45×0.355 192 3.26 1.16
14×100 0.40×0.28 182 2.62 0.96
14×110 0.355×0.25 177 2.28 0.855
14×76 0.45×0.355 173 3.33 1.16
16×100 0.4×0.28 160 2.7 0.96
17×120 0.355×0.224 155 2.19 0.803
16×120 0.28×0.224 145 1.97 0.728
20×140 0.315×0.20 133 0.715
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.20 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.60 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.70 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.60 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135


Sheet2: Specifications of Twill Dutch Weave Wire Mesh

Mesh/Inch

Warp×Weft

Wire Diameter

Warp×Weft

(mm)

Aperture Size
μm

Weight

kg/㎡

Thickness

(mm)

20×270

0.25×0.2

119

3.14

0.65

20×200

0.355×0.28

118

4.58

0.915

24×300

0.28×0.18

110

3.01

0.64

20×150

0.45×0.355

101

6.02

1.16

30×340

0.28×0.16

89

2.84

0.60

30×270

0.28×0.20

77

3.41

0.68

40×540

0.18×0.10

70

1.73

0.38

40×430

0.18×0.125

63

2.09

0.43

50×600

0.125×0.09

51

1.47

0.305

50×500

0.14×0.11

47

1.83

0.364

65×600

0.14×0.09

36

1.59

0.32

70×600

0.14×0.09

31

1.61

78×760

0.112×0.071

1.25

0.254

78×680

0.112×0.08

29

1.37

0.272

80×680

0.112×0.08

28

1.38

90×850

0.10×0.063

26

1.12

0.226

90×760

0.10×0.071

24

1.23

0.242

100×850

0.10×0.063

22

1.14

0.226

130×1500

0.063×0.036

21

0.64

0.135

100×760

0.10×0.071

20

1.25

0.242

130×1200

0.071×0.045

18

0.80

0.161

130×1100

0.071×0.05

17

0.87

0.171

150×1400

0.063×0.04

15

0.71

0.143

160×1500

0.063×0.036

0.67

0.135

165×1500

0.063×0.036

14

174×1700

0.063×0.032

13

0.62

0.127

165×1400

0.063×0.04

0.73

0.143

174×1400

0.063×0.04

11

0.74

203×1600

0.05×0.032

10

0.58

0.114

216×1800

0.045×0.03

0.53

0.105

203×1500

0.056×0.036

9

0.67

0.128

250×1900

0.04×0.028

8

0.51

0.096

250×1600

0.05×0.032

0.63

0.114

285×2100

0.036×0.025

7

0.44

0.086

300×2100

0.036×0.025

6

317×2100

0.036×0.025

5

325×2300

0.036×0.024

4

363×2300

0.032×0.022

0.40

0.076

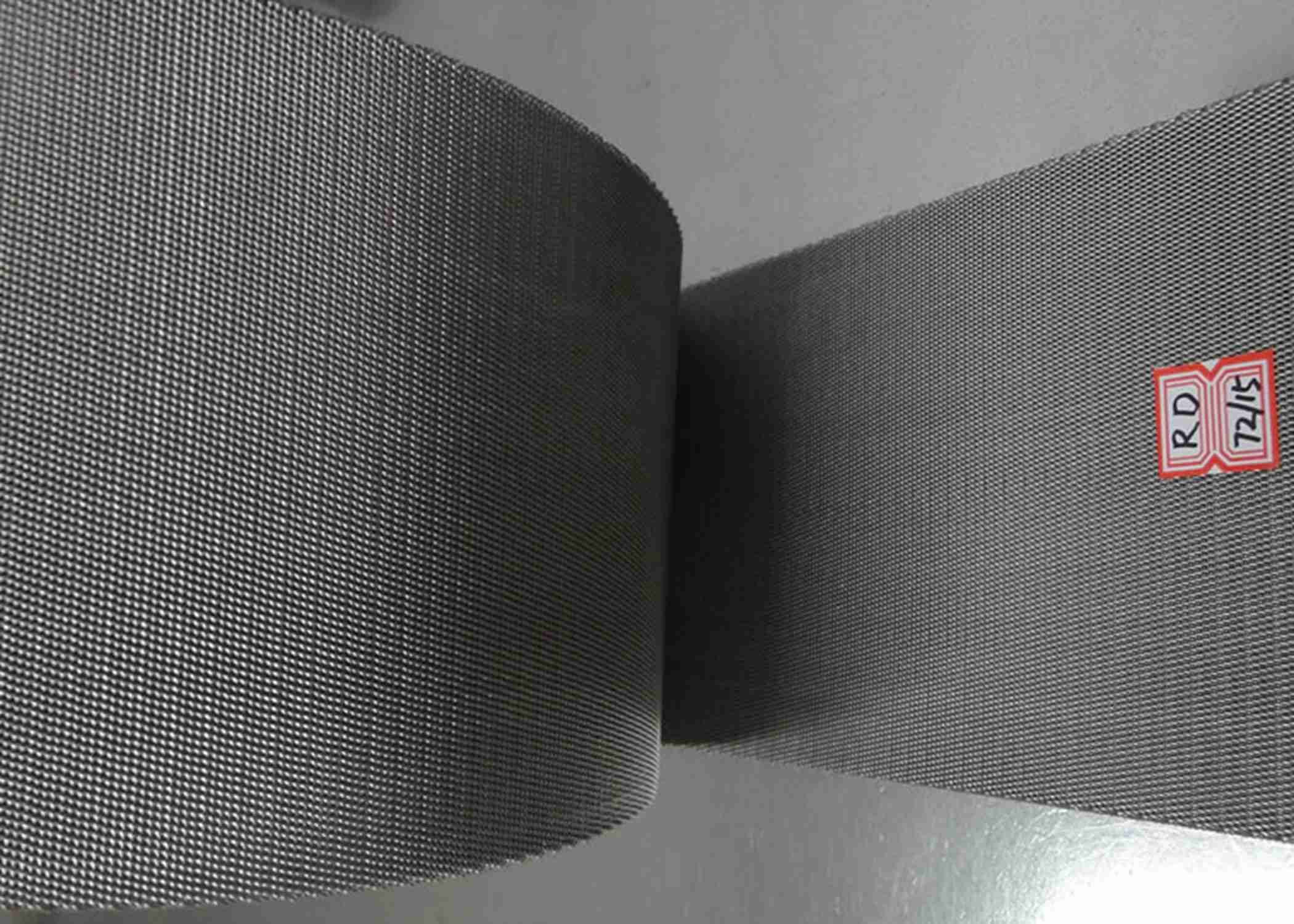

SS300 0.015-1.8mm Stainless Steel Dutch Wire Mesh Bright Silver 0



Material: 302, 304, 304L, 316, 316L , 430, 309, 310S.

Peformance: Corrosion resistance, acid resistance, alkali resistance, high temperature resistance, good filter performance, strong tension and wearability.

Weave Pattern:


Stainless Steel Mesh Strip With Material SS302, 304, 304L, 316, 316L , 430, 309, 310S.

Application:



it is used for sieving and filtration in acid and alkali environment, mud mesh in petroleum industry, sieving filter mesh in chemical fiber, acid washing mesh in electro galvanized industry, we can produce design and produce according to customre request, also OEM is acceptable.

Packing:



Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.





Robusta Wire Mesh Excellent Filtration Stainless Steel Dutch Wire Mesh 3



Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
