Robusta Wire Mesh Excellent Filtration Stainless Steel Dutch Wire Mesh



Stainless steel reverse dutch wire mesh Introduction:



Reverse Dutch Weave Wire Cloth is a very strong woven product. This mesh is ideal for making filter belts, and applications where fine filtration and great strength are required. Normally woven as a plain weave, but in reverse manner to Plain Dutch Weave. The weft wires are of greater diameter than the warp wires, and consequently the warp mesh count is greater than the weft mesh count. This woven wire cloth is extremely strong, is easily cleaned and has a high flow rate. Also known as Robusta.


The apparent difference of Reverse Dutch Weaving compared with standard Dutch weave lies in the thicker warp wires and less weft wires. Reverse Dutch woven stainless steel wire cloth offers finer filtration and finds popular application in petroleum, chemical, food, pharmacy and other fields. Through constant technological innovation and improvement, we can produce stainless steel wire mesh of various specification in reverse Dutch weaving patterns.



Robusta Wire Mesh Specifications



Mesh/Inch

(Warp x Weft)

Wire Diameter

(Warp x Weft)

 Absolute Filter Rating(um)
(mm) (inch)
63 x 18 0.40 x 0.60 0.0157 x 0.0236 220
72 x 15 0.45 x 0.55 0.0177 x 0.0216 200
107x 20 0.24 x 0.60 0.0094 x 0.0236 210
130 x 35 0.20 x 0.40 0.0079 x 0.0157 80
132 x 16 0.24 x 0.60 0.0094 x 0.0236 200
132 x 32 0.20 x 0.40 0.0079 x 0.0157 105
140 x 40 0.19 x 0.38 0.0075 x 0.015 100
152 x 24 0.30 x 0.40 0.0118 x 0.0157 160
170 x 40 0.20 x 0.45 0.0079 x 0.0177 130
171 x 46 0.15 x 0.30 0.0059 x 0.0118 85
175 x 40 0.15 x 0.38 0.0079 x 0.0157 70
175 x 50 0.15 x 0.30 0.0059 x 0.0118 60
180 x 120 0.088 x 0.10 0.0035 x 0.004 75
200 x 120 0.08 x 0.10 0.0031 x 0.004 70
280 x 70 0.09 x 0.21 0.0035 x 0.0083 40
290 x 75 0.09 x 0.20 0.0035 x 0.0079 55
400 x 125 0.066 x 0.10 0.0026 x 0.0039 50
600 x 100 0.04 x 0.14 0.00157 x 0.0055 25
600 x 125 0.042 x 0.125 0.00165 x 0.0049 20
615 x 102 0.04 x 0.16 0.00157 x 0.0063 42
615 x 130 0.04 x 0.13 0.00157 x 0.0051 22
625 x 133 0.04 x 0.13 0.00157 x 0.0051 17
720 x 150 0.036 x 0.10 0.0014 x 0.0039 17
850 x 155 0.03 x 0.10 0.0012 x 0.004 10

Othere specifications according to your requests.

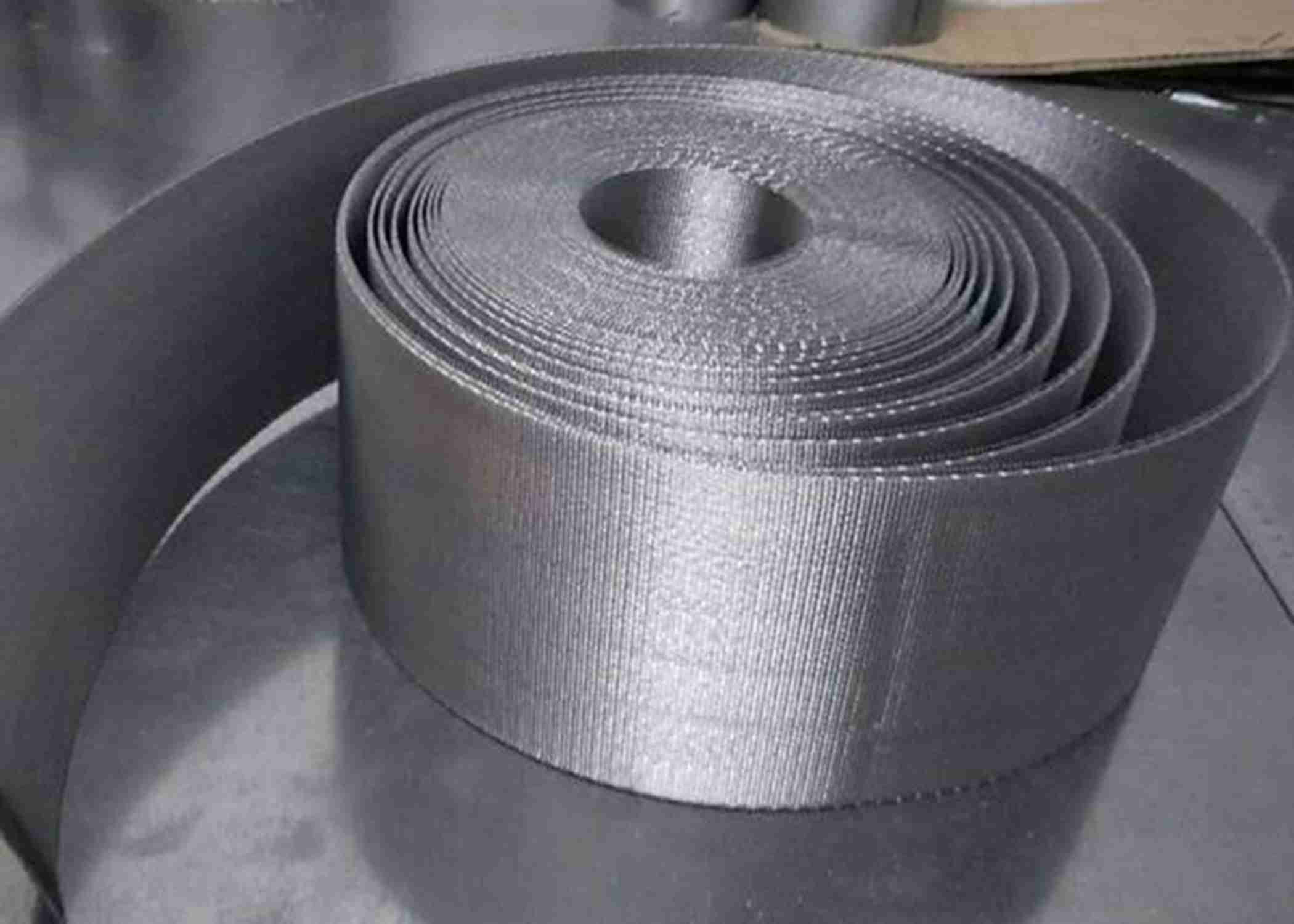

DIN 10um To 200um Stainless Steel Dutch Wire Mesh Reverse Dutch 0



Material: AISI/SUS304, 304L, 316 or 316L.



Width of roll: 100mm to 1200mm.



Weaving Methods: reverse plain dutch weave

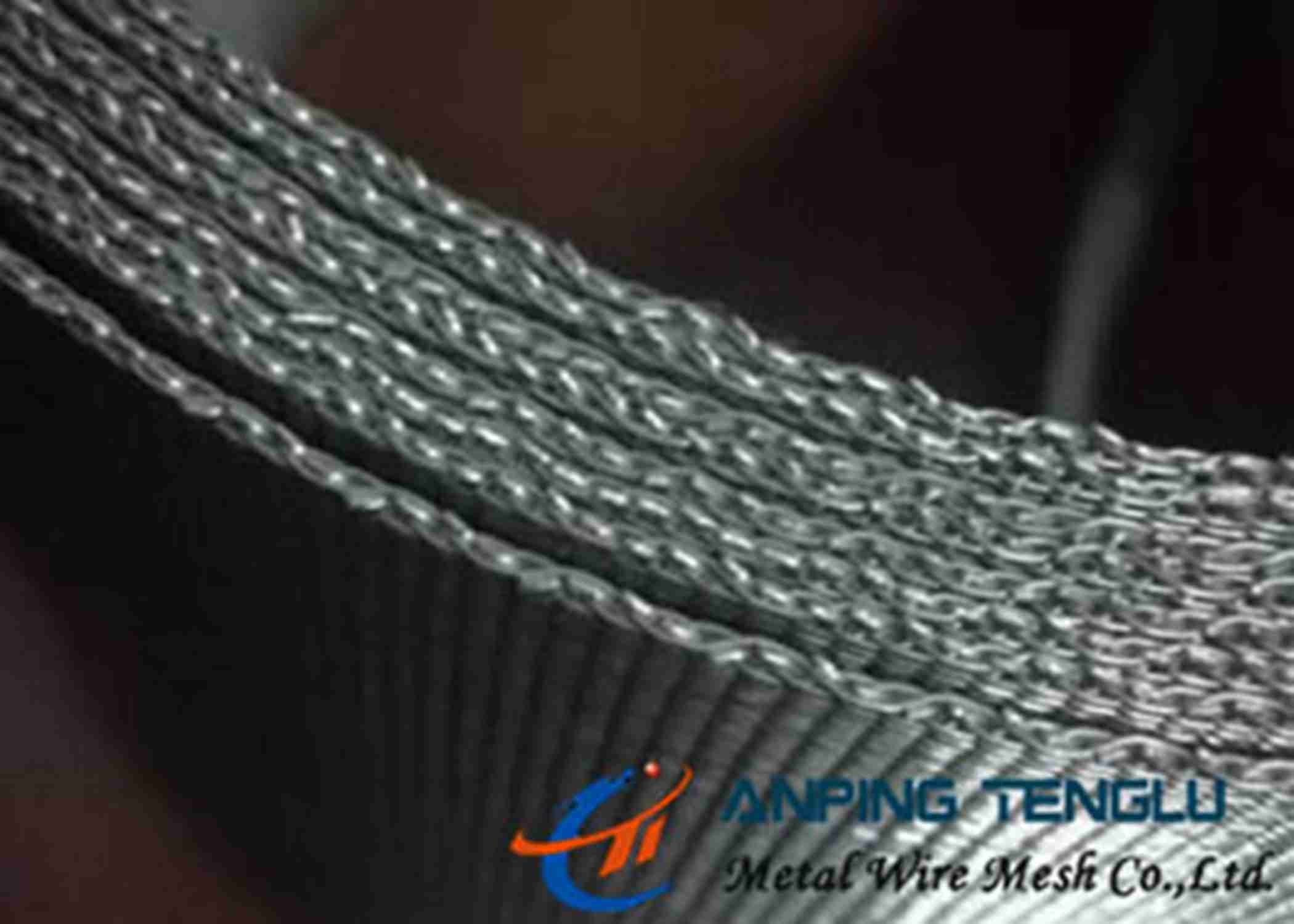

DIN 10um To 200um Stainless Steel Dutch Wire Mesh Reverse Dutch 1





Features:



Stainless steel reverse dutch wire mesh offers good wear-resistance, acid-resistance, heat-resistance and corrosion resistance. It also has fine filtration and highly durable construction.



Application:
Reverse Dutch Wire Mesh is widely used in aerospace, petroleum, chemical industry, chemical fiber, machinery, plastic products, scientic research, conveying and other industries.

DIN 10um To 200um Stainless Steel Dutch Wire Mesh Reverse Dutch 2





Packing:



DIN 10um To 200um Stainless Steel Dutch Wire Mesh Reverse Dutch 3



Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
