Bullet Proof Stainless Steel Security Screen Mesh 0.5mm to 1.9mm SS316 For Window Door

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 rolls
Price 4.5-80 us dollar/square meter
Packaging Details Waterproof paper is used to separate the inner two sheets of net, and the outer one is packed in wooden cases
Supply Ability 50 0000 square meters per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Bullet Proof, Strength Firm Product Name Stainless Steel Security Screen Mesh
Material Stainless Steel Cert ISO9001:2015
Color White, Black, Grey, Etc Wire Diameter 0.5mm To 1.9mm
Mesh 8 To 14mesh Surface Treatment Powder Coated, PVC Coated
Width 1.2m, 1.5m Or Customized Applications Security Window Screens, Security Door Screens
High Light

Bullet Proof Stainless Steel Security Screen Mesh

,

0.5mm Stainless Steel Security Screen Mesh

,

SS316 stainless wire mesh screen

Leave a Message
Product Description

Bullet proof window screen,Stainless Steel 316 Window Door Mesh Security Screen


ss316 security screen introduction:



316 marine grade stainless steel mesh is a plain woven security screen with square holes fabricated from high tensile AISI316 stainless steel wire, the wires with black premium-grade powder coated for better corrosion-resistant have the high tensile strength more than 900 MPa. And the wires are very strong and not sliding in the mesh screen.



Using 316 stainless steel mesh for anti-theft security window and door screen, allowing greater visibility and airflow, offers superior strength and security. That means you are placing a strong guarding on your house or office – you are safe.



316 marine stainless steel security screen meets Australian standards, and through the following test: dynamic impact test, neutral salt spray test, anti-oxidation test, knife shear test, fire test, swimming pool safety.



Material:


1). Marine grade 316 stainless steel wire ( advantage products)
2). High tensile marine grade 316 stainless steel wire ( core products)



Specifications:



Material: 316 Marine Grade Stainless Steel Wire.
Wire diameter: 0.8 mm.
Mesh count: 10 mesh, 11 mesh, 12 mesh, 14 mesh, 18 mesh.
Security screen panel width: 0.75 m, 0.9 m, 1.2 m, 1.5 m.
Length: 2 m, 2.4 m, 3 m or 31.5 m.
Finish: black polyester coated (engineered corrosion and moisture resistant).
Color: black, gray, silver, light gray.
Packing:
25 pcs or 50 pcs per wooden box; with a piece of water proof paper between two pieces of screens, then in carton/wooden box/pallet.
In fumigation-free wooden cases.



Mesh/Inch Wire Diameter Aperture Open Area Weight
mm mm % Kgs/㎡
8 0.80 2.375 55.95 2.56
10 0.90 1.640 41.68 4.05
10 0.50 1.740 46.92 3.20
12 0.70 1.416 44.79 2.94
14 0.60 1.214 44.79 2.52
14 0.50 1.314 52.47 1.75



Mesh/Inch Wire Diameter Aperture Open Area Weight
Inch Inch % Kgs/㎡
8 0.0314 0.0935 55.95 2.56
10 0.0354 0.0645 41.68 4.05
10 0.0314 0.0685 46.92 3.20
12 0.0275 0.0557 44.79 2.94
14 0.0236 0.0478 44.79 2.52
14 0.0196 0.0517 52.47 1.75

Coating Color:

Black, Gray, White epoxy coated etc

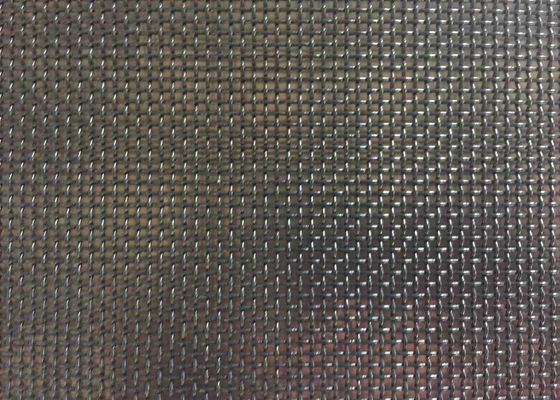

Bullet Proof Stainless Steel Security Screen Mesh 0.5mm to 1.9mm SS316 For Window Door 0

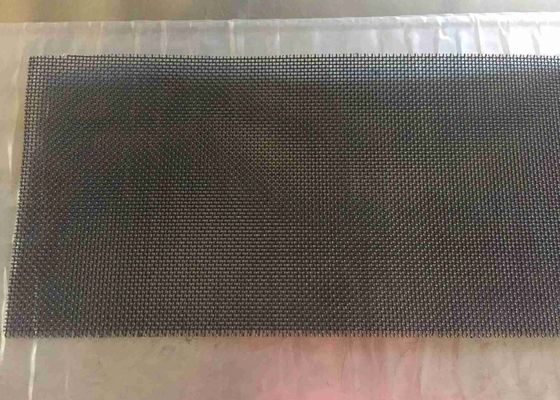

Bullet Proof Stainless Steel Security Screen Mesh 0.5mm to 1.9mm SS316 For Window Door 1

Bullet Proof Stainless Steel Security Screen Mesh 0.5mm to 1.9mm SS316 For Window Door 2



Bullet Proof Stainless Steel Security Screen Mesh 0.5mm to 1.9mm SS316 For Window Door 3

Bullet Proof Stainless Steel Security Screen Mesh 0.5mm to 1.9mm SS316 For Window Door 4

Packing of stainless steel security screen:

 Bullet Proof Stainless Steel Security Screen Mesh 0.5mm to 1.9mm SS316 For Window Door 5


Applications:



Can be installed on hinged, sliding, or double doors, and security windows.
Used in industry protection, community, villa, swimming pool.
Used for decorative crafts.


Bullet Proof Stainless Steel Security Screen Mesh 0.5mm to 1.9mm SS316 For Window Door 6Bullet Proof Stainless Steel Security Screen Mesh 0.5mm to 1.9mm SS316 For Window Door 7

About us

Bullet Proof Stainless Steel Security Screen Mesh 0.5mm to 1.9mm SS316 For Window Door 8


Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
