0.25'' 0.5'' Stainless Steel Welded Wire Mesh Firm Structure

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 200 Pcs
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Features Firm Structure Material SS304 Or SS316
Color Bright Silver Surface Treatment Polished
Type Welded Hole Shape Square Hole Or Slot Hole
External Shape Disc Main Mesh Size 1", 1/2", 1/4"
Disc Diameter Up 48" Application Filtration
High Light

0.5in stainless steel welded wire mesh


0.25in stainless steel welded wire mesh


Firm Structure stainless steel welded mesh

Leave a Message
Product Description

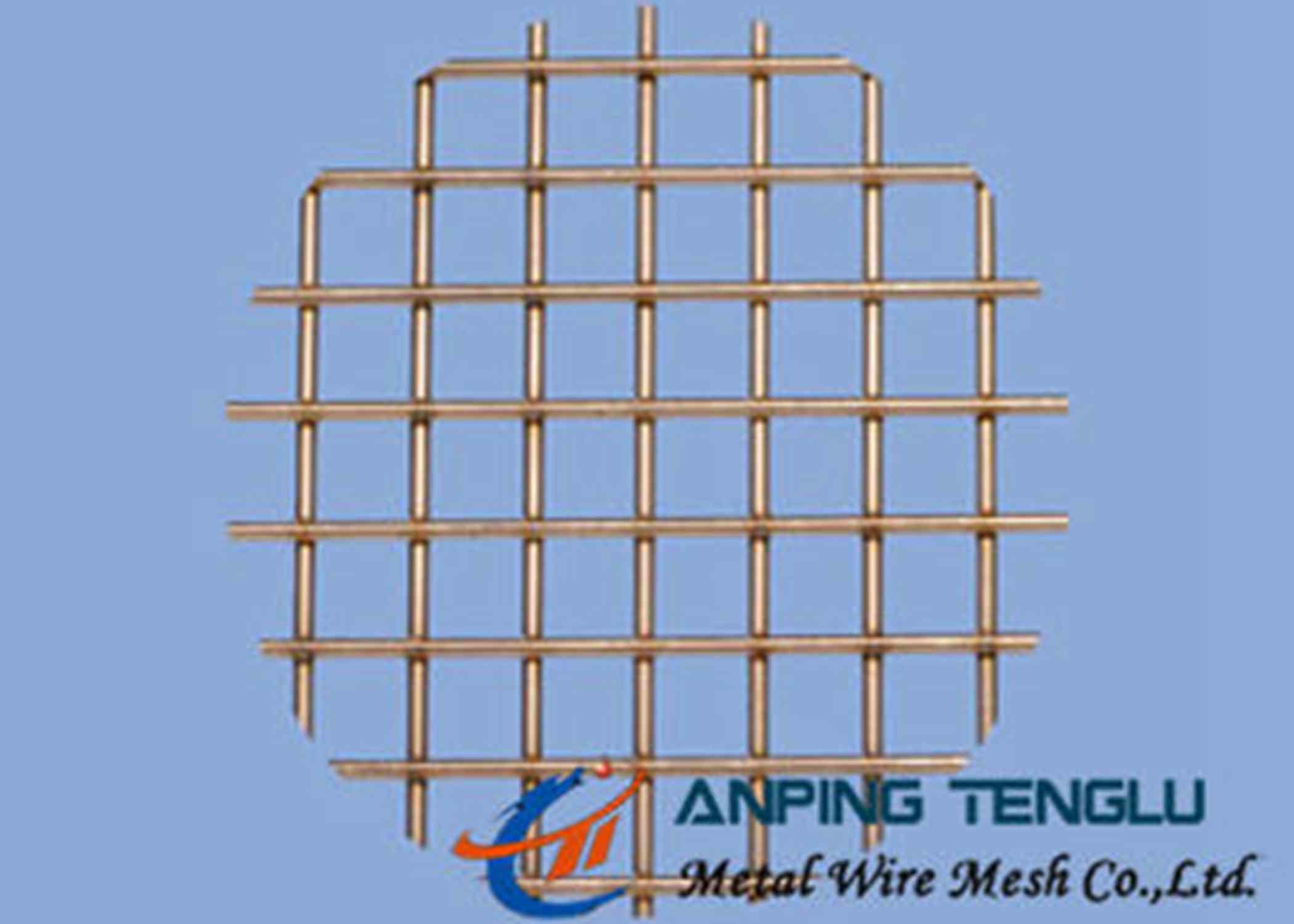

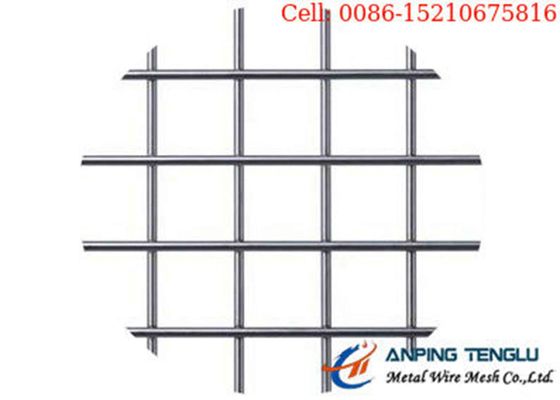

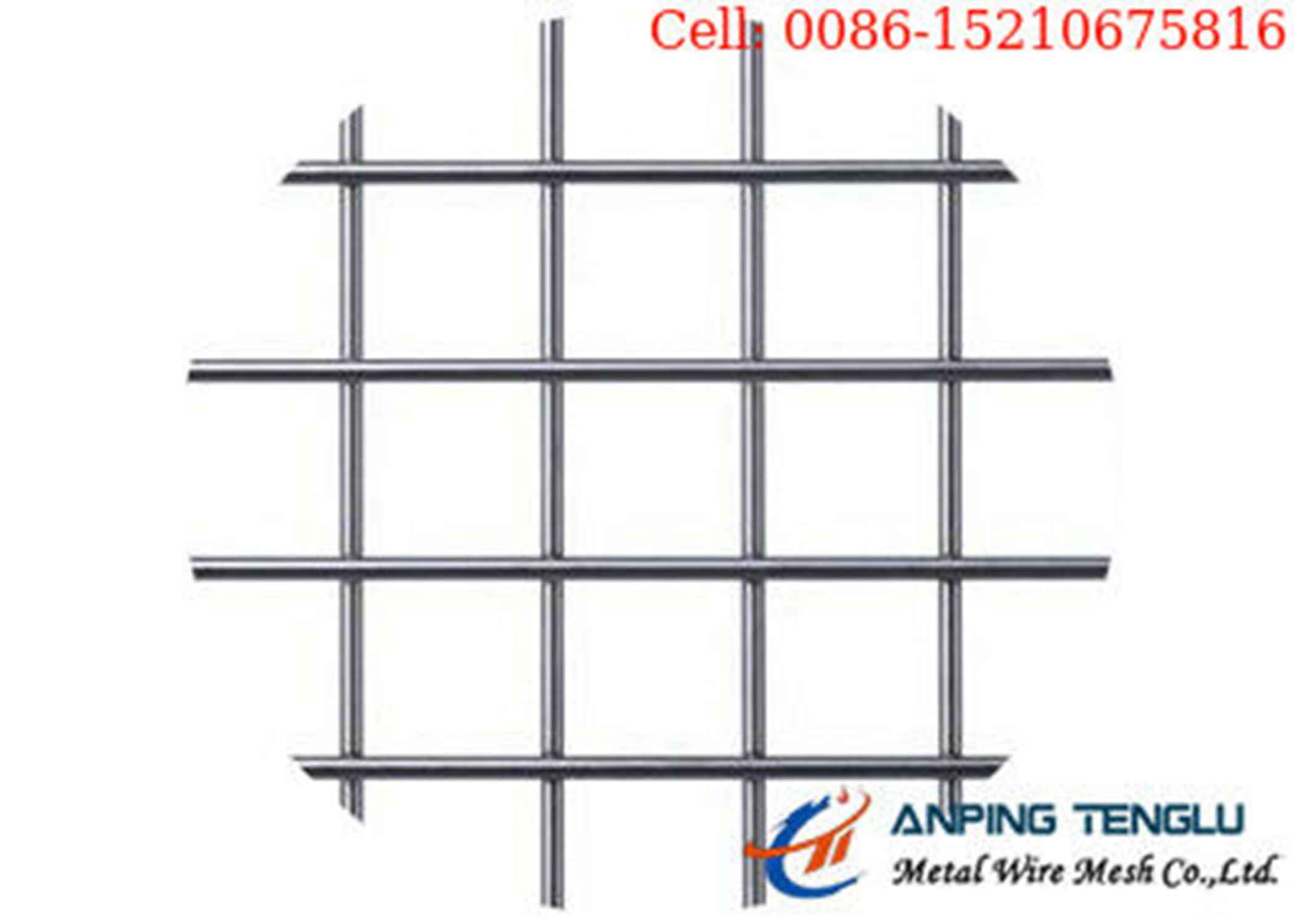

Stainless Steel Cut As Disc Shape Firm Structure SS Welded Wire Mesh


Stainless Steel Welded Wire Mesh Disc Introduction


Stainless Steel Welded Wire Mesh is also called stainless steel welded mesh, it is a grid that consists perpendicular wire strands, which are welded at each intersection, the joining of the wires at the intersection is achieved by electric resistance welding.


Welded Wire Mesh Stainless Steel Filter Disc is cut from stainless steel welded wire meshes, mainly with 1", 1/2", 1/4" mesh sizes. Stainless steel 304, 304L, 316, 316L grades are very common materials in our factory. With it's firm structures it will not loose or scattered when cut welded wire mesh into small pieces.


Surface Treatment:






Stainless Steel Welded Mesh offer excellent characteristics such as corrosion resistance, oxidation resistance, acid resistance, alkali resistance, aging resistance, sunshine resistance and weather resistance. Besides this kind of product has flat even surface and strong structure, therefore this product has a long service life. Good material life of up to several decades.




Compared with other wire meshes, stainless steel welded mesh has many good properties, such as strong structure, beautiful outlook, corrosion resistance, acid resistance, alkali resistance and long service life, it is not easy to loosen even be cut into parts or exerted force on the parts. Products through sophisticated automation technology processing machinery is made of flat surface, solid structure, strong integrity, even if the cut or in part under pressure not happen slack phenomenon.



Industrial fan & machine guards;
Small critter control;
Air vents & soffit screens;
Food applications;
Industrial separation, etc.




Welded Wire Mesh Filter Discs

Mesh Size


Wire Diameter




Opening Area



(Stainless Steel)

1” 0.047 0.953 90% SS304
1” 0.047 0.953 90% SS316
1” 0.022 0.978 95% SS304
1” 0.022 0.978 95% SS316
1/2” 0.047 0.453 82% SS304
1/2” 0.047 0.453 82% SS316
1/2” 0.063 0.437 76% SS304
1/2” 0.063 0.437 76% SS316
1/2” 0.022 0.478 91% SS316
1/4” 0.028 0.222 78% SS304
1/4” 0.032 0.218 76% SS304
1/4” 0.032 0.218 76% SS316
1/4” 0.047 0.203 66% SS304
1/4” 0.022 0.228 83% SS316L

Other Specifications as your requests.


Welded Wire Mesh Stainless Steel Filter Discs, SS304, SS304L, SS316, SS316L




Wrapped with plastic bags or plastic films, then put into cartons/wooden cases.
