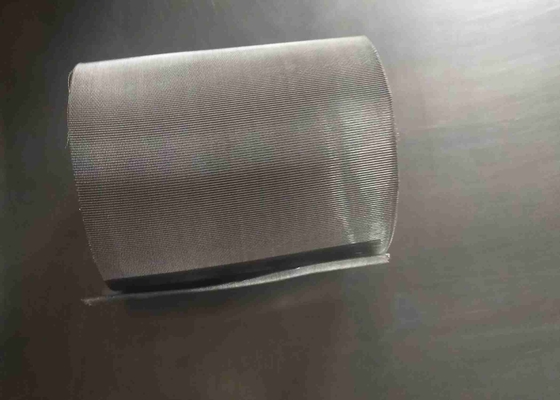

Reverse Dutch Weave Wire Cloth 132*17 200*40 Mesh Stainless Steel Dutch Wire Mesh

  • Reverse Dutch Weave Wire Cloth 132*17 200*40 Mesh Stainless Steel Dutch Wire Mesh
  • Reverse Dutch Weave Wire Cloth 132*17 200*40 Mesh Stainless Steel Dutch Wire Mesh
  • Reverse Dutch Weave Wire Cloth 132*17 200*40 Mesh Stainless Steel Dutch Wire Mesh
Place of Origin Hengshui,China
Brand Name QIANPU
Minimum Order Quantity 1 roll
Price Negotiable according to quantity of order
Packaging Details 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Supply Ability 3000 rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Dutch Wire Mesh Material Stainless Steel 304 316
Cert ISO9001 Standard AISI
Woven Type Plain Dutch, Twill Dutch, Reverse Dutch Wire Diameter 0.02-2.0mm
Width 0.5-2m Technique Woven
Color Silver Useage Filteration
High Light

dutch weave wire mesh

,

dutch weave screen mesh
Leave a Message
Product Description

 Reverse Dutch Weave Wire Cloth 132*17 200*40 Mesh Stainless Steel Dutch Wire Mesh



Product Description



Material: Plain steel, stainless steel(304, 316, 316L), aluminum, copper, brass, bronze, etc.


Features: Heat resisting,Corrosion resisting, Acid resisting


Applications: Mainly used for filtering and sieving, extensively used in petroleum, chemical industry, enviroment protection, mine, airspace, paper-making, electronic, metallurgy etc.



Plain Weave Stainless Steel Wire Mesh Cloth for Filter - Most Common Type



Plain weave stainless steel wire mesh is made of a weft wire and a warp wire with same diameter woven together. Each warp wire crosses alternately above and below every weft wire and vice versa, forming a rectangle or square opening.
With good resistance to corrosion and abrasion, stainless steel wire cloth can be made into filter in petroleum, chemical fiber, food processing, electroplating industries, etc. And it is also used for window screen or decoration.


Specifications of plain weave stainless steel wire mesh:



Materials: stainless steel 302, 304, 304L, 310, 316, 316L, 321, 410, 410L, super duplex stainless steel, duplex stainless steel or customized.

Mesh patterns: square, rectangle.

Surface treatment: pickling and passivation, polishing.

Packing:

Rolls wrapped with craft paper and then put into carton or on pallet;

Sheets in wooden boxes or on pallets.



Specifications of Plain Weave Stainless Steel Wire Mesh
Mesh Wire Diameter (mm) Opening (mm) Weight (kg/m2)
1 2 23.4 2.0
2 1.5 11.2 2.25
3 1.0 7.466 1.5
4 0.9 5.45 1.62
5 0.8 4.28 1.6
6 0.7 3.53 1.47
7 0.6 3.02 1.26
8 0.5 2.675 1.0
9 0.5 2.322 1.125
10 0.8 1.74 3.2
11 0.7 1.609 2.695
12 0.6 1.516 2.16
13 0.5 1.453 1.625
14 0.4 1.414 1.12
15 0.4 1.293 1.2
16 0.35 1.237 0.98
17 0.35 1.144 1.041
18 0.35 1.061 1.10
19 0.35 0.986 1.16
20 0.4 0.97 0.97
21 0.3 0.909 0.945
22 0.3 0.854 0.99
23 0.25 0.854 0.718
24 0.25 0.858 0.48
25 0.2 0.816 0.50
26 0.2 0.076 0.52
27 0.2 0.740 0.54
28 0.3 0.607 1.26
29 0.3 0.575 1.30
30 0.3 0.546 1.35
40 0.25 0.385 1.25
50 0.2 0.308 1.0
60 0.15 0.273 0.675
70 0.14 0.222 0.686
80 0.12 0.197 0.576
90 0.11 0.172 0.544
100 0.10 0.154 0.50
120 0.08 0.131 0.384
150 0.07 0.099 0.367
380 0.02 0.046 0.076
400 0.018 0.0455 0.0648



Plain weave stainless steel wire mesh features:



The most common type;

Good resistance to acid and alkali, and corrosion;

Abrasion, high temperature resistant;

Durable and high strength;

Easy to clean and maintain;

Flat and shiny surface.



Plain weave stainless steel wire mesh applications:



Used for filter or sieve in mining, chemical fiber, pharmaceutical industries, such as mud mesh, pickling mesh;

Made into window screen, fruit basket, infill panel, etc


Twill Weave Stainless Steel Wire Mesh for Screen, Mud or Pickling Mesh



Twill weave stainless steel wire mesh possesses the processing that each weft wire passes over and under two warp wires and vice versa, forming a beautiful appearance. And the wire diameter for warp wire and weft wire is mostly the same.
Twill weave stainless steel wire cloth resists to acid, alkali, high temperature and is durable and solid. It can be used for strainer screen to filter liquid, gas, solid in various industries. Of course, it also can be designed into infill panel, fruit and vegetable basket, etc.


Specifications of twill weave stainless steel wire mesh:



Materials: 302, 304, 304L, 310, 316, 316L, 321, 410, 410L, 430, 904L, super duplex stainless steel, duplex stainless steel or customized.

Width: 0.5-1.5 m.

Roll length: 30 m a roll or customized.

Surface treatment: pickling and passivation, polishing.

Packing:

Rolls wrapped with craft paper and then put into carton or on pallet;

Sheets in wooden boxes or on pallets.



Specifications of Twill Weave SS Wire Mesh
Items Mesh Wire Diameter (mm) Mesh Aperture (mm) Material (AISI)
SSTW01 250 × 250 0.040 0.063 SUS316
SSTW02 300 × 300 0.040 0.044
SSTW03 325 × 325 0.035 0.043 SUS316L
SSTW04 350 × 350 0.030 0.042
SSTW05 400 × 400 0.030 0.033
SSTW06 450 × 450 0.028 0.028
SSTW07 500 × 500 0.025 0.026



Twill weave stainless steel wire mesh features:



Excellent resistance to the rust and corrosion;

Resist to the chemical and harsh weather;

Accurate filtration rating;

Durable and has high friction coefficient;

High strength and beautiful appearance.



Twill weave stainless steel wire mesh applications:



Sieve or filter liquid, gas, solid;

Used in oil, chemical fiber, plating industries or medical equipment, food processing;

Made into infill panel, vegetable basket, decoration.



Stainbless Steel Dutch Wire Mesh Used in Fuel Filter, Aerospace, Rubber Industry



Stainless Steel Dutch Wire Mesh has different warp and weft wire numbers and diameter: more weft numbers and thicker warp wire. And it is classified into plain dutch weave and twill dutch weave.
With high filter precision, dutch weave ss wire mesh can sieve and filter solid, liquid, gas in corrosive environment. And it has great strength and is used in petroleum, aerospace, chemical, medicine, food or water treatment industries.


Specifications of stainless steel dutch wire mesh:



Materials: stainless steel 202, 302, 304, 304L, 310S, 316, 316L, 321, 410, 430, super duplex stainless steel, duplex stainless steel, etc.

Weaving method: plain dutch weave, twill dutch weave.

Surface treatment: pickling and passivation, polishing.

Packing:

Rolls wrapped with craft paper and then put into carton or on pallet;

Sheets in wooden boxes or on pallets.



Specifications of Stainless Steel Plain Dutch Wire Mesh
Mesh/Inch (warp×weft) Wire Dia. warp×weft (mm) Normal size (μm) Effective
area%		 Weight kg/sq.m Cloth thickness
(mm)
7×44 0.71×0.63 319 14.2 5.55 1.97
8×45 0.8×0.6 310 15.5 5.7 2.00
8×60 0.63×0.45 296 20.3 4.16 1.53
8×85 0.45×0.315 275 27.3 2.73 1.08
10×90 0.45×0.28 249 29.2 2.57 1.01
10×76 0.5×0.355 248 21.8 3.24 1.21
12×86 0.45×0.315 211 20.9 2.93 1.08
12×64 0.56×0.40 211 16.0 3.89 1.36
12×76 0.45×0.355 192 15.9 3.26 1.16
14×100 0.40×0.28 182 20.3 2.62 0.96
14×110 0.4×0.25 177 22.2 2.28 0.855
14×76 0.45×0.355 173 14.3 3.33 1.16
16×100 0.40×0.28 160 17.7 2.7 0.96
17×120 0.355×0.224 155 22.4 2.19 0.803
16×120 0.28×0.224 145 19.2 1.97 0.728
20×140 0.315×0.20 133 21.5 1.97 0.715
20×170 0.25×0.16 130 28.9 1.56 0.57
20×110 0.355×0.25 126 15.3 2.47 0.855
22×120 0.315×0.224 115 15.5 2.20 0.763
25×140 0.28×0.20 100 15.2 1.96 0.68
24×110 0.355×0.25 97 11.3 2.60 0.855
28×150 0.28×0.18 92 15.9 1.87 0.64
30×150 0.25×0.18 82 13.5 1.79 0.61
30×140 0.315×0.20 77 11.4 2.21 0.715
35×190 0.224×0.14 74 16.8 1.47 0.504
35×170 0.224×0.16 69 12.8 1.62 0.544
40×200 0.18×0.135 63 15.4 1.24 0.43
50×250 0.14×0.11 50 15.2 1 0.36
60×500 0.14×0.055 51 34.1 0.70 0.252
50×270 0.14×0.10 50 15.2 0.98 0.34
65×390 0.125×0.071 42 19.1 0.78 0.267
60×300 0.14×0.09 41 14.1 0.96 0.32
80×700 0.125×0.04 40 38.1 0.60 0.205
60×270 0.14×0.10 39 11.2 1.03 0.34
77×560 0.14×0.05 38 27.5 0.74 0.24
70×390 0.112×0.071 37 16.3 0.74 0.254
65×750 0.10×0.036 36 37.1 0.43 0.172
70×340 0.125×0.08 35 13.2 0.86 0.285
80×430 0.125×0.063 32 16.6 0.77 0.251
118×750 0.063×0.036 23 21.5 0.38 0.135





Specifications of Stainless Steel Twill Dutch Wire Mesh
Weft × Warp (inch) Aperture Size (μm) Available Area (%) Thickness (mm)
20 × 270 119 17.6 0.65
20 × 200 118 12.1 0.915
24 × 300 110 19.6 0.64
20 × 150 101 7.5 1.16
30 × 340 89 17.9 0.60
30 × 270 77 11.2 0.68
40 × 540 70 23.5 0.38
40 × 430 63 15.4 0.43
50 × 600 51 17.2 0.305
50 × 500 47 12 0.364
65 × 600 36 12 0.32
70 × 600 31 10.1 0.32
78 × 760 31 13.5 0.254
78 × 680 29 10.3 0.272
80 × 680 28 9.8 0.272
90 × 850 26 12.7 0.226
90 × 760 24 9.6 0.242
100 × 850 22 10 0.226
130 × 1500 21 18.6 0.135
100 × 760 20 7.4 0.242
130 × 1200 18 12 0.161
130 × 1100 17 9.4 0.171
150 × 1400 15 11.4 0.143
160 × 1500 15 12.4 0.135
165 × 1500 14 11.4 0.135
174 × 1700 13 12.9 0.127
165 × 1400 13 8.8 0.143
174 × 1400 11 7.4 0.143
203 × 1600 10 9.3 0.114



Stainless steel dutch wire mesh features:



Solid and stable structure;

Good resistance to corrosion, abrasion, high temperature;

Resist to acid, alkali, rust;

High filter precision.



Stainless steel dutch wire mesh applications:



Filter or sieve food, medicine, chemical fiber, fuels, powders, etc;

Used for precision pressure filter, fuel filter, vacuum filter;

Used in hydraulic systems, aerospace, water treatment, metallurgy industries.

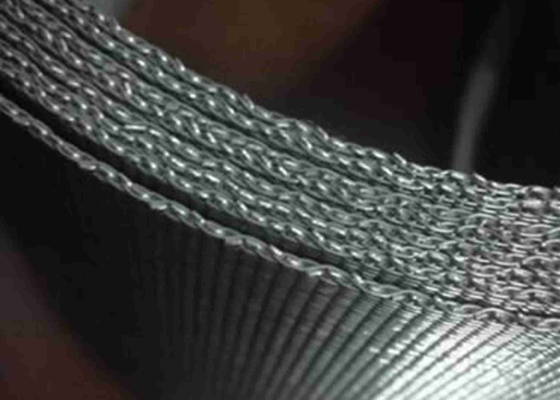

Stainless Steel Reverse Dutch Wire Mesh is Durable and Solid



Stainless Steel reverse dutch wire mesh is a specially designed filter product with different diameter wires: thicker weft than warp. And it has high tensile strength and is more durable and solid than the common weave wire mesh.
Reverse dutch wire mesh is widely used for filter with outstanding filtration performance and rust and corrosion resistance. It also play an important role in machinery, plastic products, chemical fiber, food or medicine industries, etc.


Specifications of stainless steel reverse dutch wire mesh:



Materials: stainless steel 202, 302, 304, 304L, 310S, 316, 316L, 321, 410, 430, super duplex stainless steel, duplex stainless steel, etc.

Surface treatment: pickling and passivation, polishing.

Packing:

Wrapped with moisture-proof paper or plastic paper;

In wooden boxes or pallets.



Specifications of Stainless Steel Reverse Dutch Wire Mesh
Mesh (Weft × Warp) Wire Diameter (mm) Weight (kg/m2)
72 × 15 0.45 × 0.55 4.8
120 × 16 0.35 × 0.45 4.3
132 × 18 0.35 × 0.45 4.3
152 × 24 0.35 × 0.45 4.5
160 × 17 0.27 × 0.45 3.6
170 × 17 0.27 × 0.45 3.89
180 × 19 0.26 × 0.45 4.05
200 × 40 0.17 × 0.27 2.17
260 × 40 0.15 × 0.25 2.09
325 × 40 0.13 × 0.24 1.95



Stainless steel reverse dutch wire mesh features:



High hardness and tensile strength;

Zero aperture;

Excellent filtration performance;

Good resistance to acid and alkali;

Rust and corrosion resistance;

Beautiful surface.



Stainless steel reverse dutch wire mesh applications:



Used for filter disc, filter tube, fine filter media;

Play a role in chemical, petroleum, plastic products, metallurgy, aerospace, food processing industries.


Stainless Steel Crimped Wire Mesh Can Roast Meat, Ensure ety



Stainless steel crimped wire mesh is crimped before weaving, and it has solid structure, good loading capacity and beautiful appearance.
Crimped wire mesh is widely used for vibrating screen, quarry screen, filter, infill panel, barbecue grill, and shows its ability in chemical, petroleum, mining industries, livestock breeding, etc.


Specifications of stainless steel crimped wire mesh:



Materials: stainless steel 301, 302, 304, 304L, 316, 316L, 321.

Mesh width: up to 2000 mm.

Aperture width: 10-120 mm in the case of multi-notch meshes and 4-40 mm in the case of single-notch meshes.

Weaving method: crimped before weaving.

Surface treatment: pickling and passivation, polishing, galvanized.

Frame:

Cut the edges;

Bent edges;

Sheathed hooks.



Specifications of Stainless Steel Crimped Wire Mesh
Wire Gauge
SWG		 Wire Diameter
mm		 Mesh/Inch Aperture
(mm)		 Weight
(kg/m2)
6 4.8 1 20.6 11.5
8 4.05 2 9 16.5
10 3.2 2 10 10.5
12 2.6 3 5.9 10.5
14 2.0 3 6.5 6
16 1.6 4 5 5.5
17 1.4 5 5.1 5.0
18 1.2 5 4 3.6
19 1.0 6 3.2 3.0
21 0.8 7 2.8 2.3
22 0.7 8 2.5 2



Stainless steel crimped wire mesh features:



High tensile strength and stable structure;

Good resistance to corrosion and abrasion;

Beautiful and shiny surface;

Durable and has good loading capacity.



Stainless steel crimped wire mesh applications:



Used for vibrating screen, test sieve;

Filter and sieve materials in mine, oil refining, construction, chemical industry, food process and other industries;

Made into decorative infill panel, protective mesh, barbecue grill, baking rack.





Stainless steel wire mesh weave type



 Reverse Dutch Weave Wire Cloth 132*17 200*40 Mesh Stainless Steel Dutch Wire Mesh 0



Reverse Dutch Weave Wire Cloth 132*17 200*40 Mesh Stainless Steel Dutch Wire Mesh 1

Delivery Time


We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.


Mutual Benefit


If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.

Reverse Dutch Weave Wire Cloth 132*17 200*40 Mesh Stainless Steel Dutch Wire Mesh 2

Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen



Reverse Dutch Weave Wire Cloth 132*17 200*40 Mesh Stainless Steel Dutch Wire Mesh 3

Reverse Dutch Weave Wire Cloth 132*17 200*40 Mesh Stainless Steel Dutch Wire Mesh 4

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.


Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.



Tags:

0.1m Stainless Steel Dutch Wire Mesh

Five Heddle Weave stainless wire cloth

Wear Resistance Stainless Steel Dutch Wire Mesh
