Reverse Dutch Weave Screen Mesh 20 Micron Plain Stainless Steel Wire Screen
Place of Origin | Anping of China |
---|---|
Brand Name | QIANPU |
Certification | ISO |
Minimum Order Quantity | 1 roll |
Price | Negotiable according to quantity of order |
Packaging Details | 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements. |
Supply Ability | 3000 rolls per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Dutch Weave Wire Mesh | Material | Stainless Steel 304 316 |
---|---|---|---|
Woven Type | Plain Dutch, Twill Dutch, Reverse Dutch | Width | 0.5-2m |
Wire Diameter | 0.5-8mm | Color | Silver |
Feature | Corrosion Resistance | Aplication | Chemical Industry |
High Light | dutch weave screen mesh,plain dutch weave mesh |

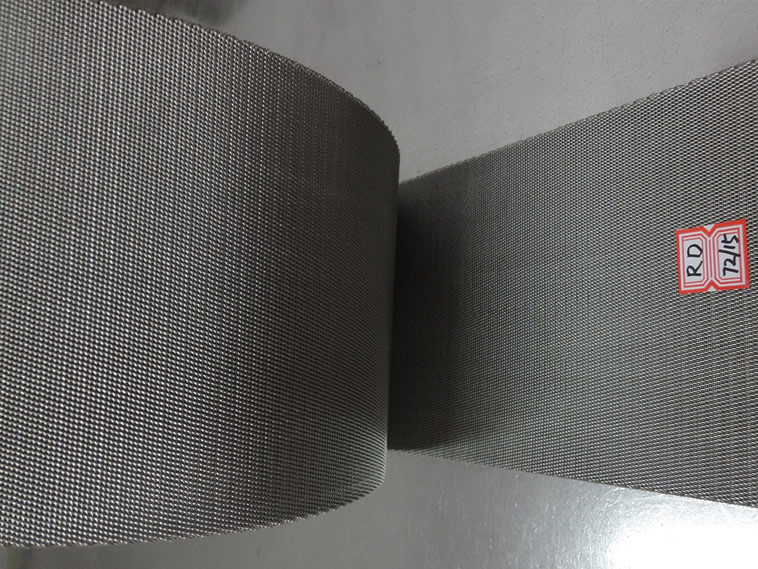

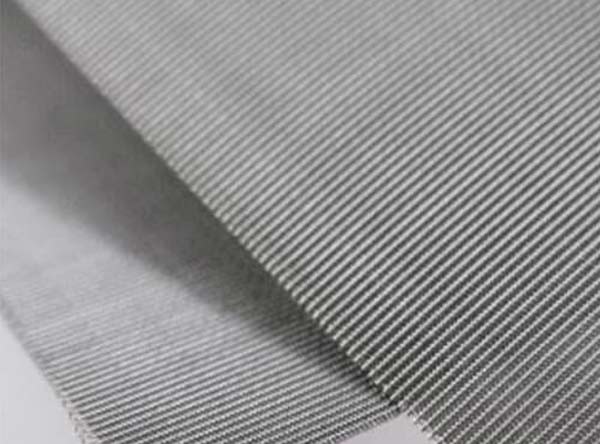

Reverse Dutch Weave Screen Mesh 20 Micron Plain Stainless Steel Wire Screen
We produce stainless steel wire mesh from first class stainless steel wire material in SUS/AISI 201 202 302 304 310 310S 316 316L 321 430 etc.
Stainless steel wire mesh with its excellent resistance against acid, alkali, heat and corrosion, find extensively uses in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.
Product infomation:
1) product range : usually,manufactured in 30m ( up to 200) long and in width of 36 48 1m 1.2m 1.5m 2.0m etc. or cut to length panels as per client’s requirement.
2) Packing: water-proof paper ,woven bag and also can be made as per client requirement
3) weave:This type of mesh is available in Plain Weave, Twill Weave ; Plain Dutch Weave, Dutch Twill Weave.
4) mesh counts: 1 mesh to 635 mesh.
5) sample: available.
Plain Dutch weave
Mesh
|
Wire Diameter mm
|
Filtration Fineness um
|
Weight / m2 kg
|
8x62
|
0.63x0.45
|
300
|
5.42
|
10x79
|
0.50x0.35
|
250
|
3.16
|
12x64
|
0.50x0.40
|
280
|
3.2
|
14x88
|
0.40x0.30
|
220
|
2.5
|
15x100
|
0.40x0.27
|
210
|
2.35
|
20x120
|
0.30x0.23
|
160
|
1.9
|
24x110
|
0.35x0.25
|
150
|
2.35
|
24x140
|
0.27x0.19
|
110
|
1.7
|
30x150
|
0.25x0.17
|
80
|
1.55
|
30x180
|
0.25x0.15
|
70
|
1.4
|
40x200
|
0.19x0.13
|
60
|
1.2
|
50x250
|
0.15x0.11
|
50
|
0.95
|
60x300
|
0.13x0.09
|
45
|
0.75
|
70x350
|
0.12x0.08
|
35
|
0.7
|
80x400
|
0.12x0.07
|
34
|
0.7
|
70x500
|
0.12x0.06
|
32
|
0.65
|
100x600
|
0.10x0.05
|
30
|
0.6
|
Dutch twilled weave
Mesh
|
Wire Diameter mm
|
Filtration Fineness um
|
Weight
(kg/sq.m)
|
20x200
|
0.335x0.28
|
118
|
4.58
|
20x260
|
0.25x0.20
|
119
|
3.14
|
24x300
|
0.28x0.18
|
110
|
3.01
|
30x250
|
0.28x0.20
|
77
|
3.41
|
30x340
|
0.28x0.16
|
89
|
2.84
|
40x560
|
0.18x0.10
|
70
|
1.73
|
80x700
|
0.12x0.08
|
30
|
1.26
|
80x780
|
0.12x0.07
|
28
|
1.22
|
90x780
|
0.10x0.07
|
26
|
1.24
|
100x780
|
0.10x0.07
|
25
|
1.13
|
120x1100
|
0.07x0.05
|
18
|
0.86
|
165x800
|
0.07x0.05
|
25
|
0.58
|
165x1400
|
0.07x0.04
|
14
|
0.75
|
200x600
|
0.06x0.04
|
28
|
0.5
|
200x1400
|
0.06x0.04
|
12
|
0.72
|
200x1600
|
0.06x0.035
|
11
|
0.7
|
200x1800
|
0.06x0.03
|
10
|
0.7
|
250x2000
|
0.045x0.028
|
8
|
0.65
|
325x2300
|
0.035x0.026
|
5
|
0.57
|
325x2500
|
0.035x0.023
|
4
|
0.52
|
400x2800
|
0.03x0.018
|
3
|
0.46
|
400x3000
|
0.03x0.16
|
2.
|
0.43
|
400x3500
|
0.03x0.15
|
1
|
0.38
|
Delivery Time
We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Mutual Benefit
If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
