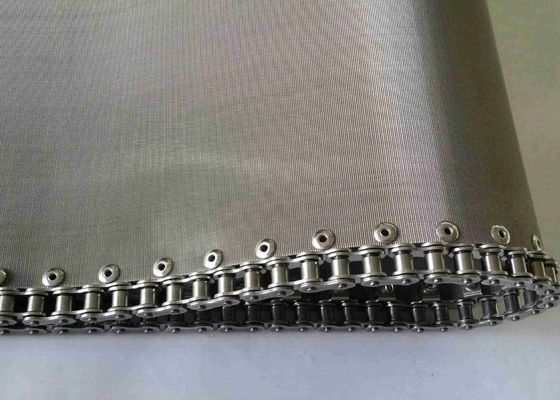

150 Micron Stainless Steel Plain Dutch Woven Cloth Fine Wire Mesh Silver Color
| Place of Origin | Anping of China |
|---|---|
| Brand Name | QIANPU |
| Certification | ISO |
| Minimum Order Quantity | 1 roll |
| Price | Negotiable according to quantity of order |
| Packaging Details | 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements. |
| Delivery Time | 2weeks |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 3000 rolls per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Plain Dutch Weave Mesh | Material | Stainless Steel 304 316 |
|---|---|---|---|
| Standard | AISI, DIN, SUS, Etc | Woven Type | Plain Dutch, Twill Dutch, Reverse Dutch |
| Mesh Count | 24x110 | Wire Diameter | 0.35x0.25 |
| Filtration Rating | 150 Micron | Color | Bright Silver |
| Feature | Corrosion Resistance | Application | Filtration Industry |
| Highlight | dutch weave screen mesh,plain dutch weave mesh |
||
Product Description
150 Micron Stainless Steel Plain Dutch Woven Cloth Fine Wire Mesh Silver Color
150 micron conduct stainless steel plain dutch woven cloth fine wire mesh filter disc screen, Dutch Weave Wire mesh
Stainless steel wire mesh or wire cloth can be plain weave, twill weave, Dutch plain weave or Dutch twill weave, while square woven wire mesh is made by either plain weave or twill weave. Woven wire mesh with equal mesh count horizontally or vertically has square opening, hence also called square opening wire mesh, or single layer wire mesh.

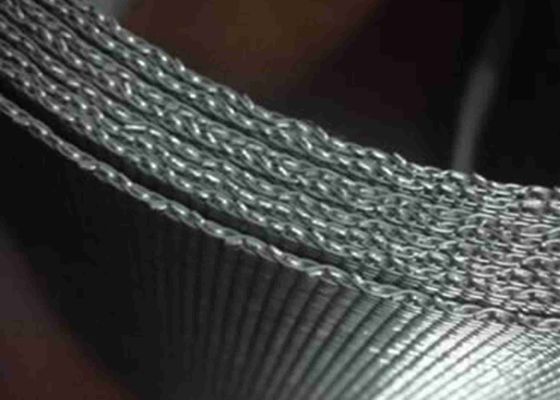

The structure of Dutch woven cloth has different mesh counts in weft and warp direction. Suitable match of wire dia. and mesh count can realize the filtration density that are unrealizable for square mesh. Common dutch woven wire cloth has more weft wires than warp wires, and the warp wire dia. is usually bigger than that of the warp wires; Due to its unique structure and weave pattern, dutch woven wire cloth is more used in fine filtration than normal s.s. square mesh.Present densest dutch woven cloth can have the mesh opening size as small as 3 microns.So we also call dutch woven mesh micron-grade filter cloth.
Materials:
304,304L,316,316L Stainless steel wire, Nickel wire, Brass wire, Low-Carbon Steel wire and Special Alloy wire.
Plain Dutch weave Specfications:
|
Mesh
|
Wire Diameter mm
|
Filtration Fineness um
|
Weight / m2 kg
|
|
8x62
|
0.63x0.45
|
300
|
5.42
|
|
10x79
|
0.50x0.35
|
250
|
3.16
|
|
12x64
|
0.50x0.40
|
280
|
3.2
|
|
14x88
|
0.40x0.30
|
220
|
2.5
|
|
15x100
|
0.40x0.27
|
210
|
2.35
|
|
20x120
|
0.30x0.23
|
160
|
1.9
|
|
24x110
|
0.35x0.25
|
150
|
2.35
|
|
24x140
|
0.27x0.19
|
110
|
1.7
|
|
30x150
|
0.25x0.17
|
80
|
1.55
|
|
30x180
|
0.25x0.15
|
70
|
1.4
|
|
40x200
|
0.19x0.13
|
60
|
1.2
|
|
50x250
|
0.15x0.11
|
50
|
0.95
|
|
60x300
|
0.13x0.09
|
45
|
0.75
|
|
70x350
|
0.12x0.08
|
35
|
0.7
|
|
80x400
|
0.12x0.07
|
34
|
0.7
|
|
70x500
|
0.12x0.06
|
32
|
0.65
|
|
100x600
|
0.10x0.05
|
30
|
0.6
|
Dutch twilled weave Specfications:
|
Mesh
|
Wire Diameter mm
|
Filtration Fineness um
|
Weight
(kg/sq.m)
|
|
20x200
|
0.335x0.28
|
118
|
4.58
|
|
20x260
|
0.25x0.20
|
119
|
3.14
|
|
24x300
|
0.28x0.18
|
110
|
3.01
|
|
30x250
|
0.28x0.20
|
77
|
3.41
|
|
30x340
|
0.28x0.16
|
89
|
2.84
|
|
40x560
|
0.18x0.10
|
70
|
1.73
|
|
80x700
|
0.12x0.08
|
30
|
1.26
|
|
80x780
|
0.12x0.07
|
28
|
1.22
|
|
90x780
|
0.10x0.07
|
26
|
1.24
|
|
100x780
|
0.10x0.07
|
25
|
1.13
|
|
120x1100
|
0.07x0.05
|
18
|
0.86
|
|
165x800
|
0.07x0.05
|
25
|
0.58
|
|
165x1400
|
0.07x0.04
|
14
|
0.75
|
|
200x600
|
0.06x0.04
|
28
|
0.5
|
|
200x1400
|
0.06x0.04
|
12
|
0.72
|
|
200x1600
|
0.06x0.035
|
11
|
0.7
|
|
200x1800
|
0.06x0.03
|
10
|
0.7
|
|
250x2000
|
0.045x0.028
|
8
|
0.65
|
|
325x2300
|
0.035x0.026
|
5
|
0.57
|
|
325x2500
|
0.035x0.023
|
4
|
0.52
|
|
400x2800
|
0.03x0.018
|
3
|
0.46
|
|
400x3000
|
0.03x0.16
|
2.
|
0.43
|
|
400x3500
|
0.03x0.15
|
1
|
0.38 |
Features:
1. Warp wire has bigger dia than shute wire
2. Shute wires are possibly bound close to each other
3. High accuracy
4. Nominal or no pressure loss while filtration
5. Supreme filtration surface
6. More stable than square and rectangular wire mesh
Applications:
Our product maintains the highest quality standards and is ISO 9001:2015 certified. All of our wire mesh products can be supplied meeting ASTM standards. It is stocked in the several specifications to assure quick delivery.
We offer a broad range of plain Dutch weave mesh that is highly recommended for its large surface structure. The product has competency to obtain high flow levels and nominal pressure drop. These are commonly used for filter candles in edible oil refining, large mechanical loads for pre-coat filters, food and pharmaceutical filtration. We deliver the greater quality plain Dutch weave mesh that is highly reckoned in woven wire filter cloths.
Delivery Time
We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Mutual Benefit
If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
