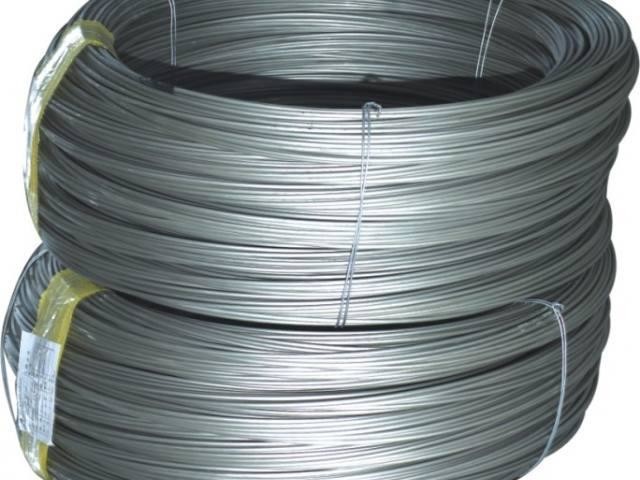

410 430 Stainless Steel Wire Coil 0.13mm For Cold Upsetting

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 ton
Price Negotiable
Packaging Details wooden carton
Delivery Time 14 working days
Payment Terms T/T, Western Union, L/C
Supply Ability 400 tons per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 304L 316 316L Application Manufacturing
Sample Free Zhejiang, China (Mainland) Brand Name Toponewire Model Number 316 Wire
Surface Classification Bright; Gray; Oxidation; Burnishing; Coppering; Lead Plating And So On Hardness Classification Soft | 1/4H | 1/2H | 3/4H | H | EH |SH
High Light

430 Stainless Steel Wire Coil

,

410 Stainless Steel Wire Coil

,

0.13mm stainless steel flat wire

Leave a Message
Product Description

410/ 430 Material Stainless Steel Wire Dia 0.13mm For Cold Upsetting



304 stainless shaped Wire



A) Material Classification:



200 series: 201, 202

300 series: 304,304L,304H,316,316L

400 series: 430



B) Hardness Classification:



Soft | 1/4H | 1/2H | 3/4H | H | EH |SH



C) Surface Classification:



Bright; Gray; Oxidation; Burnishing; Coppering; Lead plating and so on



D) Purpose Classification:



For spring; cold upsetting; welding; wire rope



E )Physical Classification:



Magnetic / Nonmagnetic



F) Shape classification:



Round wire; Half Round Wire; Square wire; pressure flat wire; precision shaped wire





stainless steel binding wire Tying/Cold Heading/Architectural/Welding/Shaped Wire ISO 9001 ) wholesale price





Material: 200(Cu),201(Cu),202,301,302,304(L),314,316(L).410,430,etc



Wire diameter: 0.3- 8.0mm.



Characteristics: Shiny surface condition excellent workability





Applications:



It generally used in braiding the hose for bathing product and machinery. With it good flexibility,resistant to high temperature and resistant to corrosion,it used widely in many industries.







Diameter Tolerance & Oval Tolerance Mechanical Properties
(mm)Dia. (mm)Dia.Tolerance Oval.Tolerance
0.030-0.050 ±0.003 ≤0.003
0.050-0.080 ±0.004 ≤0.004
0.080-0.10 ±0.005 ≤0.005
0.10-0.16 ±0.007 ≤0.007
0.16-0.28 ±0.010 ≤0.010
0.28-0.50 ±0.013 ≤0.013
0.50-0.90 ±0.015 ≤0.015
0.90-1.60 ±0.02 ≤0.02
1.60-2.80 ±0.03 ≤0.03
2.80-5.00 ±0.04 ≤0.04
5.00-9.00 ±0.05 ≤0.05
9.00-12.00 ±0.06 ≤0.06
12.00-14.00 ±0.07 ≤0.07
Type (mm)Dia (N/mm2)Tensilestrength (%)Elongation
SUS304.SUS304L 0.02-0.05 880-1130 ≥10
SUS316.SUS316L 0.02-0.05 650-900 ≥8
SUS304.SUS304L
SUS309S
SUS310S
SUS316.SUS316L
SUS321
0.05-0.16 650-900 ≥20
0.16-0.50 610-860
0.50-1.60 570-820 ≥30
1.60-5.00 520-770
5.00-14.00 500-750
SUS304J3 0.05-0.16 620-870 ≥20
0.16-0.50 580-830
0.50-1.60 540-790 ≥30
1.60-5.00 500-750
5.00-14.00 490-740



Chemical Composition of Stainless Steel Wire



AISI Grade Chemical Composition(%)
  C Si Mn P S Ni Cr Mo
304 =<0.08 =<1.00 =<2.00 =<0.045 =<0.030 8.00~10.50 18.00~20.00 -
304H >0.08 =<1.00 =<2.00 =<0.045 =<0.030 8.00~10.50 18.00~20.00 -
304L =<0.030 =<1.00 =<2.00 =<0.045 =<0.030 9.00~13.50 18.00~20.00 -
316 =<0.045 =<1.00 =<2.00 =<0.045 =<0.030 10.00~14.00 10.00~18.00 2.00~3.00
316L =<0.030 =<1.00 =<2.00 =<0.045 =<0.030 12.00~15.00 16.00~18.00 2.00~3.00
430 =<0.12 =<0.75 =<1.00 =<0.040 =<0.030 =<0.60 16.00~18.00 -
430A =<0.06 =<0.50 =<0.50 =<0.030 =<0.50 =<0.25 14.00~17.00 -



410 430 Stainless Steel Wire Coil 0.13mm For Cold Upsetting 0410 430 Stainless Steel Wire Coil 0.13mm For Cold Upsetting 1



our company other stainless steel wire mesh product is as below,



410 430 Stainless Steel Wire Coil 0.13mm For Cold Upsetting 2410 430 Stainless Steel Wire Coil 0.13mm For Cold Upsetting 3410 430 Stainless Steel Wire Coil 0.13mm For Cold Upsetting 4410 430 Stainless Steel Wire Coil 0.13mm For Cold Upsetting 5



Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.



In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.













Q: Are you trading company or manufacturer?
A: We are manufacturer



Q:To quote,what informations is needed?
A:Raw material,thread diameter, width, quantity, usage,etc.



Q: How long is your delivery time?
A: It is 7-10 days if the goods are in stock; for mass order, it based on your quantity.



Q: Could you provide free sample?
A: Yes, it is available for free sample, but the customers need to pay the cost of freight,
which can be deducted in following order.



Q: What is your terms of payment?
A: 30% T/T as deposit,the balance before shippment. Or 100% L/C at sight. Or 30%deposit, 70% L/C at sight.



Q:How to confirm the quality about your products?
A:During production, a few samples can be delivered to you for quality confirmation,
but the customers need to pay the cost of freight.



Q: How do you make our business long-term and good relationship?
A: Effective communication;
Qualified products, comeptitive prices, timely delivery, considerate service, etc.
