Anti Rust 304 304L 316 316L Filter Mesh Stainless Steel

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Panesl
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden.
Delivery Time 10days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Water Well Screen Material Stainless Steel
Profile Wire Triangle Wire Support Rod Triangle Wire, Round Rod, Flat Bar, Wedge Wire
Technique Welded Mesh Slot Size 0.05mm To 10.0mm
Outer Diameter 25mm To 1500mm Length To 10m
Screen Shape Tube Or Pipe Applications Sieving And Filtration
High Light

316L Filter Mesh Stainless Steel

,

316 filter mesh stainless steel

,

304L stainless steel filters

Leave a Message
Product Description

Water Well Screen, Cylindrical Wire Mesh Screen Filter, Stainless Steel with Anti-Rust



Wedge Wire Screen Introduction:



Wedge Wire Screen Tube is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic specialized wedge wire screen machine. Each profile wire and support rod is contacted by resistance welding. This screen tube is with features of firm in structure, good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped, the screen slot is narrow in the above and wide in the below, and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration. It is widely used in oil-water separation, water treatment, sugar process, rotating pulping.



Materials: carbon steel and stainless steel (302, 304, 304L, 316, 316L, etc).



Specifications:



Slot Size

(mm)

Profile Wire(mm) Support Rod(mm)
Triangle Wire Triangle Wire Round Rod Flat Bar Wedge Wire
0.05 0.5×1, 1×2 - - -
0.10 - - -
0.15 - - -
0.20 2, 3 - -
0.25 2, 3 - -
0.3 1.5×4, 2.2×3.5, 2.2×4.5, 2.8×5 2, 3 - -
0.4 2.2×3.5, 2.2×4.5, 2.8×5.0, 3.1×6.0, 2.8×6.5, 3.4×7.5 3, 4, 5, 6 - -
0.5 2×25, 3×25, 4×25 3×5, 4×6, 4×7.5
0.6
0.7
0.8 1.5×4, 1.8×3, 2.2×3.5, 2.2×4.5, 2.2×5, 2.3×3.8, 2.6×4.3, 2.7×4.2, 2.8×5, 2.8×6.5, 2.8×8, 2.8×10, 2.9×4.7, 3.1×6, 3.2×5.5, 3.4×7.5, 3.5×5.7, 5×7, 5×10, 6.8×9.4, 8.5×11.5 4, 5, 6, 7, 8
0.9
1.0
1.5
2.0
2.5
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0



stainless steel 302,304,304L,316,316L/Water Well Screen/cylindrical wire mesh screen filter

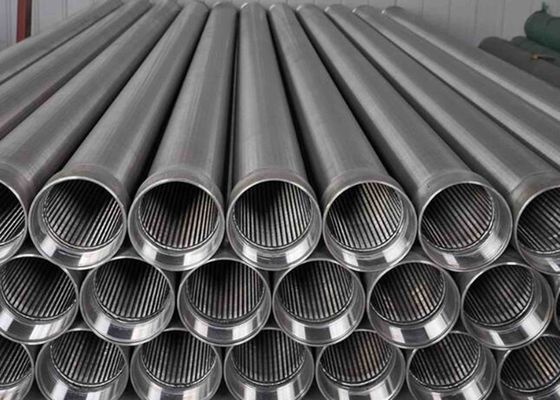

Anti Rust 304 304L 316 316L Filter Mesh Stainless Steel 1



Characteristics:



The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.



Features of products:


1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2) Low cost operation
Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.
3) Reduce the abrasion of the pump

Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.
4) Extend the life span of wells

Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.



Advantage:



A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.



A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.



A uniform and efficient well development due to the continuous slot opening.



Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.



Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.



Uses:



The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.



Packing:

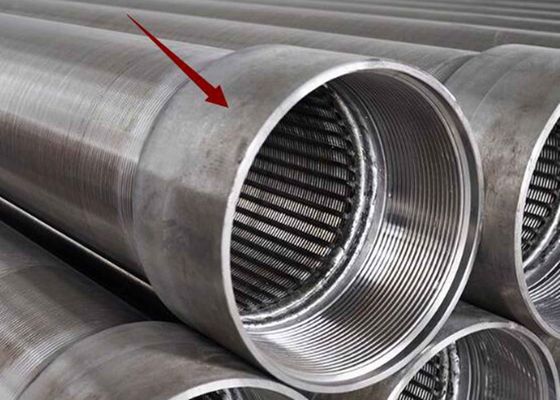

Anti Rust 304 304L 316 316L Filter Mesh Stainless Steel 2
