1.2mm 1.4mm SS Wire Mesh Conveyor Belt Compound Weave

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50m length
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Compound Weave Conveyor Belts Material Stainless Steel
Surface Bright Silver Pitch Of Spiral Wires 6mm To 20mm
Pitch Of Cross Rods 6mm To 20mm Wire Diameter 1.2 Mm, 1.4 Mm, 1.5 Mm, 1.6 Mm, 1.8 Mm, 2 Mm, 2.5 Mm, 3 Mm
Belt Width 200 Mm To 3,000 Mm. Diameter Of Cross Wire 0.9 Mm To 2.6 Mm
Fearutes Smooth Conveying Surface Minimize Marks And Provide Easy Accurate Conveying Applications BAKING, Etc
High Light

0.12'' 1.4mm ss wire mesh conveyor belt

,

TENGLU 0.12'' 1.2mm ss wire mesh conveyor belt

,

TENGLU 0.12'' SS metal mesh conveyor belt

Leave a Message
Product Description

Food Grade Stainless Steel For Small Products Conveying Compound Weave Conveyor Belts



Compound Balanced Weave Belt Introduction:



The mesh of compound balance weave conveyor belts are very closed, so these belts are used in those application which include carring of very small parts, such as nuts bolts, screws, nails etc.



Compound weave conveyor belt supplies extremely close and flat mesh. This is made of stainless steel and high carbon steel. They all have excellent high temperature resistance performance and high tensile strength. All these metals ensure the Compound weave conveyor belt to be a strong, durable and high lifespan product. It is also known as Cord Weave Belt. The structure of Compound weave conveyor belt is similar to the balanced weave conveyor belt, which has multiple spirals and cross rods per pitch. The compound weave conveyor belt has closer mesh than the balanced conveyor belt. The closer mesh makes compound weave conveyor belt a high density and high strength surface.





Specs:



Material: carbon steel, SS 201, SS 304, SS 316, SS 314.

Pitch of spiral wires: 6mm to 20mm.

Pitch of cross rods: 6mm to 20mm.

Wire diameter: 1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.

Belt width: 200 mm to 3,000 mm.

Diameter of cross wire: 0.9 mm to 2.6 mm.

Cross rod number per pitch: 3, 4, 5 or 6 as your request.

Temperature range: -50 °C to 1,150 °C.


Rod number for a spiral Spiral number in 12" Cross rod number in 12" Cross rod diameter Spiral wire diameter
3 53 102 0.47" 0.47"
3 41 102 0.54" 0.54"
3 34 82 0.08" 0.63"
4 33 84 0.08" 0.63"
5 27 83 0.08" 0.63"
3 28 72 0.08" 0.08"
3 20 50 0.12" 0.12"
3 60 132 0.141" 0.141"
3 60 132 0.041" 0.041" × 0.035"
3 84 157 0.035" 0.025"
3 84 157 0.035" 0.03" × 0.02"
3 114 192 0.028" 0.028"
3 140 186 0.032" 0.025"



Advantages:



1. Since the surface is flat and smooth,the belts can carry small items and unstable products.

2. The allowable tension is high,so that heavy load can be transported.

3. The belt strenght against pressure is high,so that the belts can be used for processing under pressure.

4. The belts can be used at high temperature.

5. The belts can be used for textile products refining and cleaning process.



Compound Balanced Belt is used in following areas:



  • BAKING
  • BAKERY
  • BISCUITS
  • TORTILLA
  • HEAT TREATING
  • SMALL PART APPLICATIONS



Styles:

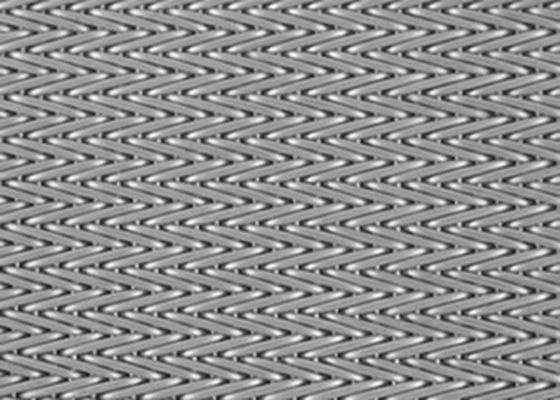

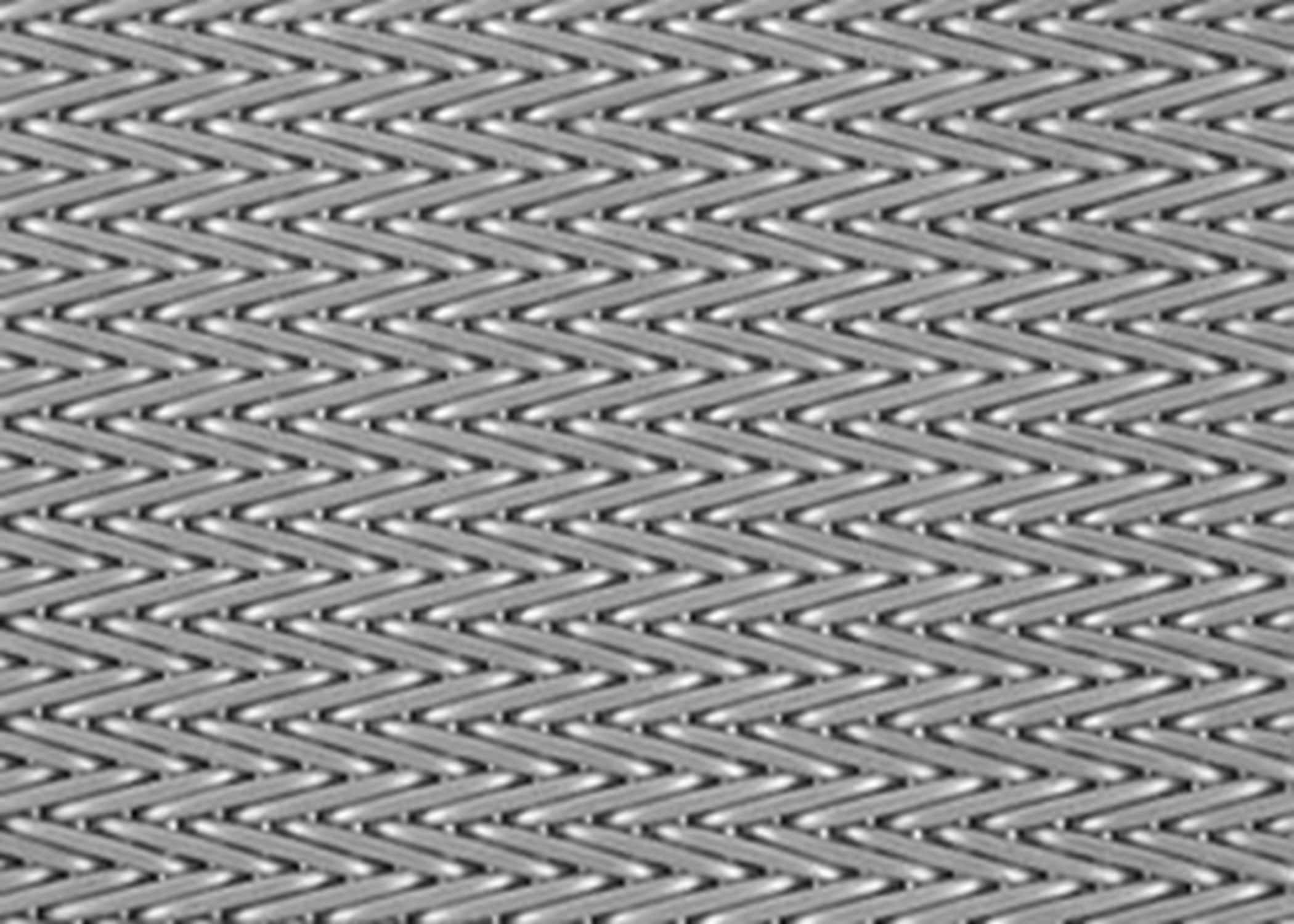

Compound weave conveyor belts are available in round spiral wire or flat spiral wire as your requirements. Meanwhile, it can be manufactured with upturned edge or standard welded edge as shown in the pictures for you to choose from.



1.2mm 1.4mm SS Wire Mesh Conveyor Belt Compound Weave 0

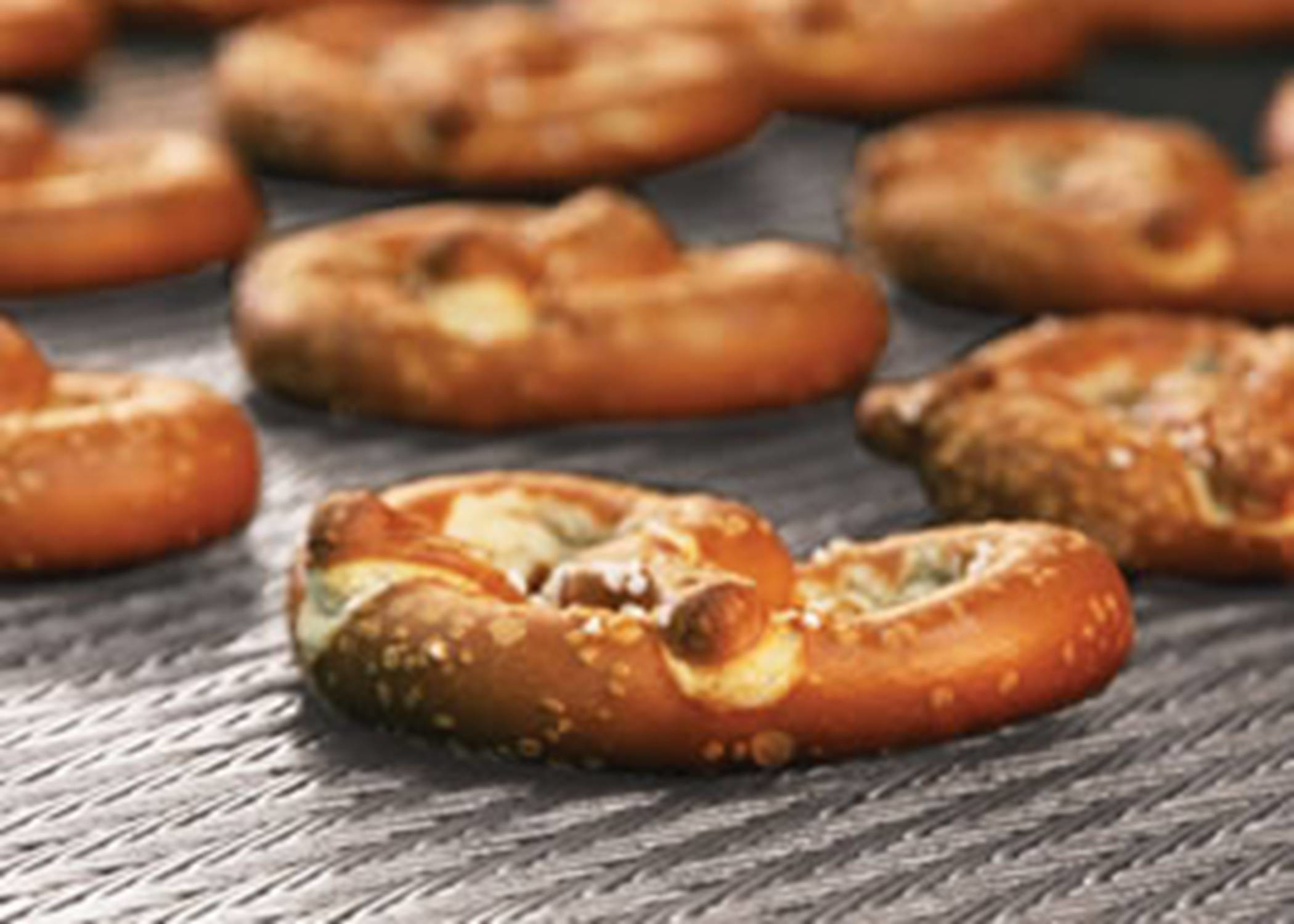

Applications:



Biscuits, tortillas, cookies and crackers baking

Heat treating of small products.

Hardening, tempering, quenching.

Cleaning, drying, cooking, freezing and salting.

Glass works, electrotechnical industry.

Serving as pasteurizing belt, furnace belts, etc.



1.2mm 1.4mm SS Wire Mesh Conveyor Belt Compound Weave 1



Packing:



1.2mm 1.4mm SS Wire Mesh Conveyor Belt Compound Weave 2
