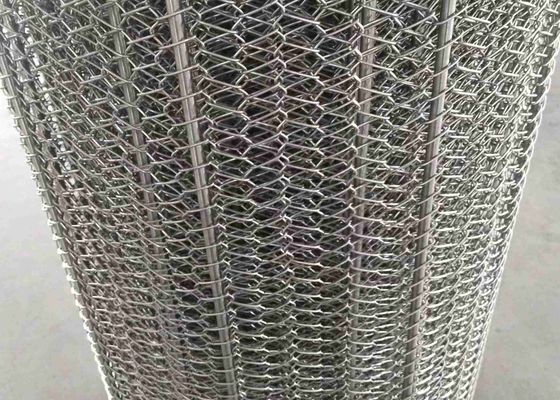

Balance Weave Stainless Steel Wire Mesh Conveyor Belt 0.5m to 3m

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50m length
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Features Quality Cross Rods With Larger Diameter Than Spiral Wires For Higher Durability. Product Name Balance Weave Conveyor Belts
Material Stainless Steel Surface Bright Silver
Type Gravity Conveyor Technique Woven Wire Mesh
Structure Chain Conveyor Weave Style Spiral
Belt Width 0.5m To 3m Applications Food Processes Such As Annealing Glass, Heat Treating And Drying.
High Light

TENGLU 3m 0.5m Balance Weave stainless steel wire mesh conveyor belt


TENGLU 3m 0.5m stainless steel wire mesh conveyor belt


3m wire mesh conveyor belt

Leave a Message
Product Description

Stainless Steel Predominant Choice in Food Industrial Balance Weave Conveyor Belts


Balanced Weave Conveyor Belt

Balanced Weave Conveyor Belt also called balanced belt, it consists of a series of alternating single left-hand and right-hand spirals joined together by a cross-rod connector. With its virtually unlimited choice of mesh selection, it has many advantageous characteristics that make it the most preferred construction for almost any application. It offers a high tensile strength, excellent tracking and maximum flexibility that allows for true belt travel. It is adaptable with several different edge treatments and special attachments.


Sr No. Specifications No. Of Spirals per feet No. Of Cross-rods per feet Spiral wire dia Cross wire dia
1 B-12-12-10-08 12 12 10 swg 08 swg
2 B-12-12-3x2-10 12 12 Flat wire of 3x2 mm 10 swg
3 B-18-12-3x2-10 18 12 Flat wire of 3x2 mm 10 swg
4 B-24-19-10-09 24 19 10 swg 09 swg
5 B-24-18-10-10 24 19 10 swg 10 swg
6 B-24-19-12-10 24 19 12 swg 10 swg
7 B-24-18-14-12 24 18 14 swg 12 swg
8 B-30-15-10-10 30 15 10 swg 10 swg
9 B-36-18-3.5x1.5-10 36 18 Flat wire of 3.5x1.5 mm 10 swg
10 B-36-20-3x2-10 36 20 Flat wire of 3x2 mm 10 swg
11 B-36-20-12-10 36 20 12 swg 10 swg
12 B-36-18-10-10 36 18 10 swg 10 swg
13 B-36-15-10-10 36 15 10 swg 10 swg
14 B-36-24-16-14 36 24 16 swg 14 swg
15 B-36-18-14-12 36 18 14 swg 12 swg
16 B-60-40-2x1.5-14 60 40 Flat wire of 2x1.5 mm 14 swg
17 B-60-40-16-14 60 40 16 swg 14 swg
18 B-60-24-16-14 60 24 16 swg 14 swg
19 B-60-28-18-16 60 28 18 swg 16 swg
20 B-72-24-14-12 72 24 14 swg 12 swg
21 B-72-24-16-14 72 24 16 swg 14 swg


Stainless Steel Balanced Weave Conveyor Belt with Heat Resistant

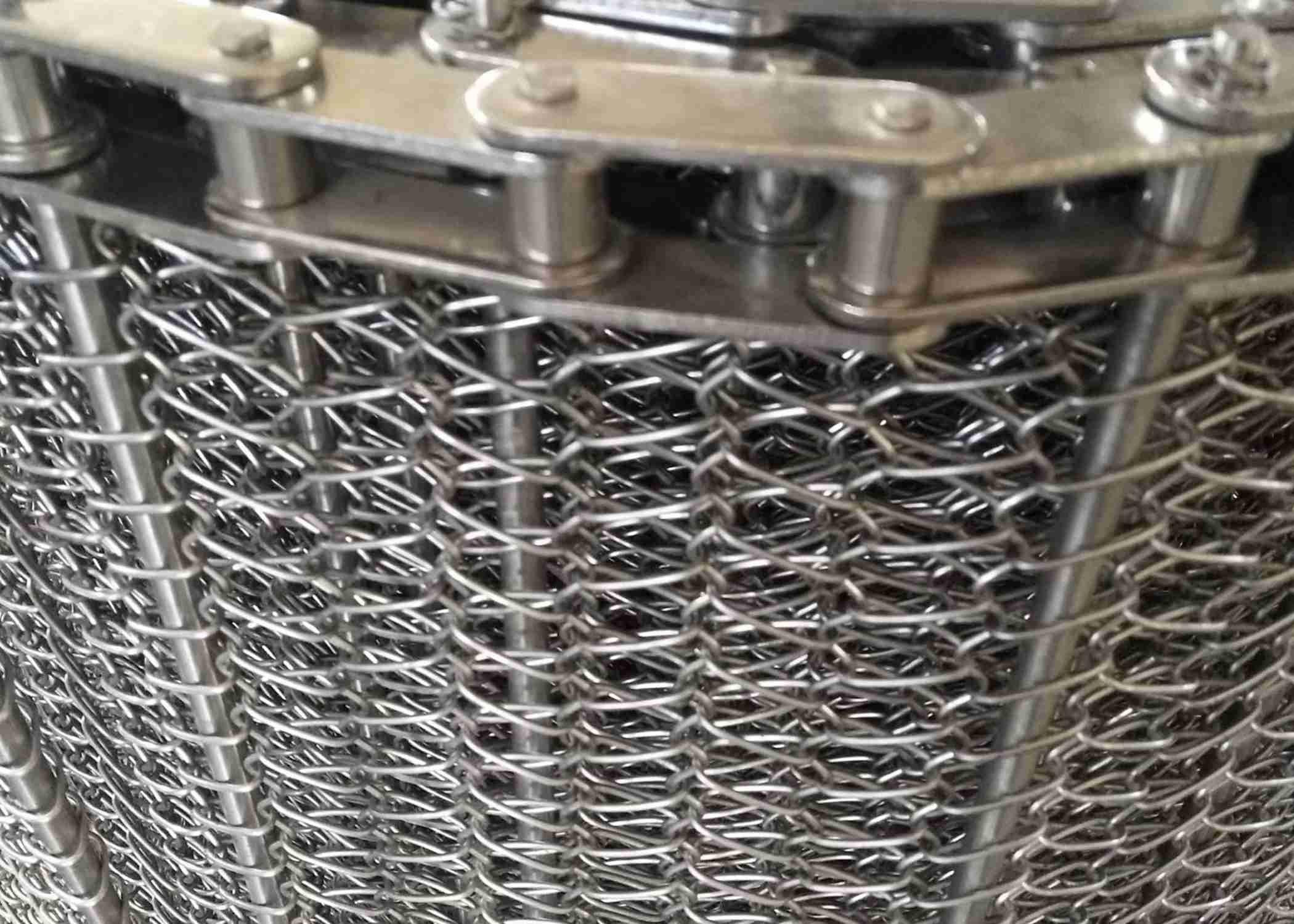

Balance Weave Stainless Steel Wire Mesh Conveyor Belt 0.5m to 3m 1



1. Quality cross rods with larger diameter than spiral wires for higher durability.
2. Never creep to either side.
3. Temperature range: -50°C to 1100°C.
4. Quick and easy to install.
5. Simple maintenance by replacing the broken parts easily.
6. Resistant to acid, alkaline, chemical, abrasion and corrosion.
7. Simple structure with smooth conveying surface.
8. Long service life.
9. Minimum maintenance.


Applications of Balanced Belt


It is mostly used in food processes such as annealing glass, heat treating and drying. It is also used in baking bands. It is used in medium load applications ranging 40 - 1500 degree F. It is too much economical for medium temperature and load conditions.

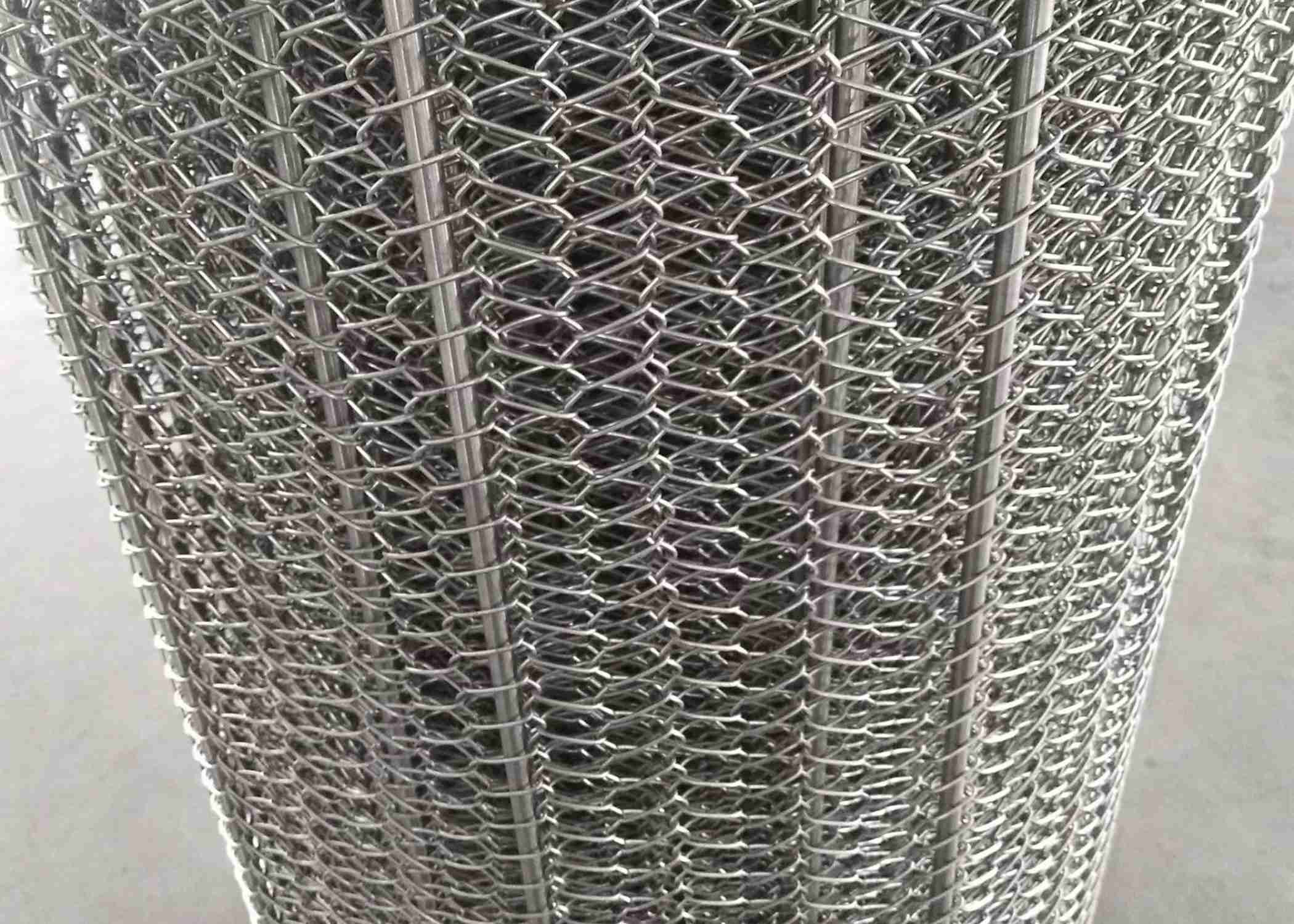

Balance Weave Stainless Steel Wire Mesh Conveyor Belt 0.5m to 3m 2



Our wire mesh conveyor belts product list:


Flat Wire Conveyor Belt
Rod Network Belt
Rod Conveyor Belt
Eye Flex Conveyor Belt
Balanced Weave Conveyor Belt
Compound Weave Conveyor Belt
Universal Weave Conveyor Belt
Conventional Weave Conveyor Belt
Flat Top Chains
Metal Chain Plate Conveyor Belt
Radius Conveyor Belt
Ladder Conveyor Belt
Flat Rolled Baking Belt
Oven Mesh Belt
Flat Flex Conveyor Belt
Flexible Rod Conveyor Belt
Perforated Plate Conveyor Belt
Chain Link Conveyor Belt
Conveyor Belt Accessory: Roller Chain Sprocket, Roller Chains, etc
