DIN 0.9mm to 2.8mm Wire Conveyor Belt Single Loop Edge Or Double Loop Edge

  • DIN 0.9mm to 2.8mm Wire Conveyor Belt Single Loop Edge Or Double Loop Edge
  • DIN 0.9mm to 2.8mm Wire Conveyor Belt Single Loop Edge Or Double Loop Edge
  • DIN 0.9mm to 2.8mm Wire Conveyor Belt Single Loop Edge Or Double Loop Edge
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50m length
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Firm Structure, Positive Drive Without Slipping, Etc Product Name Rod Network Conveyor Belt
Material Stainless Steel Standard AISI, DIN, SUS, Etc
Surface Bright Silver Belt Edge Single Loop Edge, Double Loop Edge
Wire Diameter 0.9mm To 2.8mm Pitch 1/8", 1/4", 1/2", 3/8", 3/4", Etc
Width 0.4m To 4m Application Washing Systems, Drying System, Etc
Highlight

0.12'' 0.9mm Wire Conveyor Belt

,

0.12'' 2.8mm Wire Conveyor Belt

,

DIN wire mesh belts
Leave a Message
Product Description

Stainless Steel Single Loop Edge or Double Loop Edge Rod Network Conveyor Belt





Stainless Steel Rod Network Ladder Belt



Rod Network Ladder Belts are made of made of very wide wire mesh, and are recognizable by their wide-open surface. They are usually moved by a sprocket system. Besides requiring extremely rare maintenance, this kind of conveyor belt allows for easy, hygienic passage of air and liquid both cold and hot, an advantage which makes them ideal for many different applications in the food industry. Besides frying and drying applications, rod network conveyor belts are especially used in the confectionery industry, for covering, glazing and granulating.



Common Materials: AISI/SUS 304, 304L, 316, 316L.



Specifications



Specification of Rod Network Ladder Belt

Wire Diameter

(mm)

Pitch

(mm)

Open Area

(%)

 Edge Type
0.9 4.24 77 single/double
0.9 5.64 82 single/double
1.0 5.5 79 single/double
1.0 5.6 79.5 single/double
1.27 4.3 67 single
1.27 5.5 73 single/double
1.27 6.0 76 single/double
1.27 6.35 77 single/double
1.27 7.26 80 single/ double
1.40 6.40 76 single
1.60 7.26 75 single/ double
1.83 12.00 81 single
1.83 12.70 82 single
2.08 9.60 75 single
2.35 12.70 78 single
2.35 20.32 85 single
2.80 12.70 72 single

Other specifications at your requests.

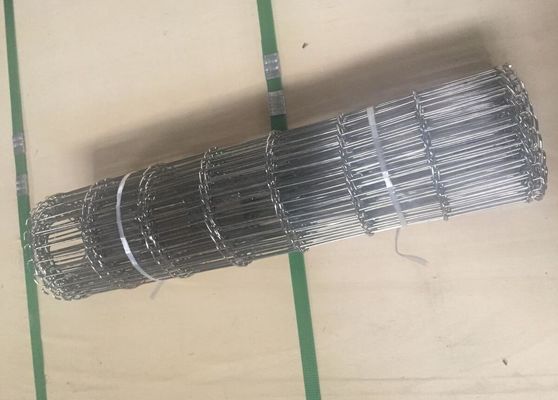

DIN 0.9mm to 2.8mm Wire Conveyor Belt Single Loop Edge Or Double Loop Edge 0

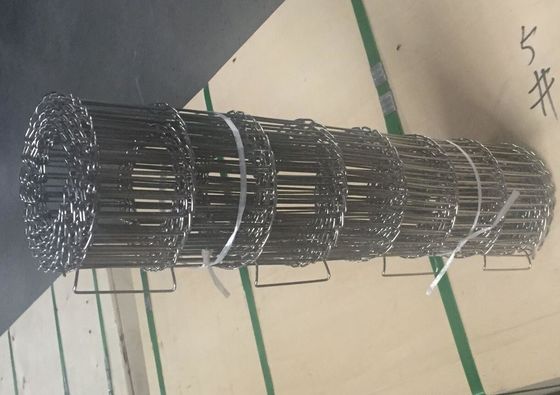

DIN 0.9mm to 2.8mm Wire Conveyor Belt Single Loop Edge Or Double Loop Edge 1



Belt Edge: Single Loop Edge, Double Loop Edge



AISI304, AISI316 Rod Work Ladder Belt, Single Loop Edge & Double Loop Edge



Belt Drawing Details:



AISI304, AISI316 Rod Work Ladder Belt, Single Loop Edge & Double Loop Edge



Features:



1. High open structure - high proportion of open area up to 86% makes the belt efficient in cooling, drying, heating applications.
2. Positive drive without slipping - Rod network belts are normally driven by sprockets positively without need for complicated tracking mechanisms.
3. Stable conveying - With smallest diameter end rolls and drive rolls, the rod network belts provide stable conveying of delicate products.
4. A wide range of sizes - Various sizes with different openness to suit different applications providing superb strength and min contact surface between the products and the belts. Generally, the more the joints cross the width, the stronger the belt.
5. Lower belt mass - low belt mass than balanced weave belts for lower power consumption, faster processing and more product throughput.
6. Cost saving - The high open structure without hidden crevices makes the belt easy to clean and maintain which result in considerable cost saving.



Applications:



The ladder belt has many different applications. Several common applications are mentioned below:

Cooling systems in for example bread & pastry industry.
Belt in filtering installations.
Washing systems.
Drying systems.

Canned food processing.

Conveyor belt in installations for baking, frying, grilling, etc.



Packing:



Warpped with water-proof plastic material, then in wooden box.



DIN 0.9mm to 2.8mm Wire Conveyor Belt Single Loop Edge Or Double Loop Edge 4
