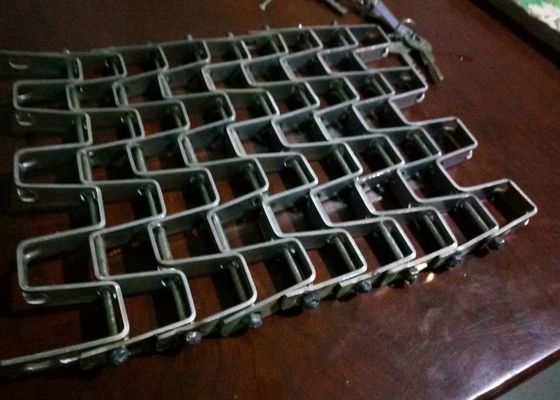

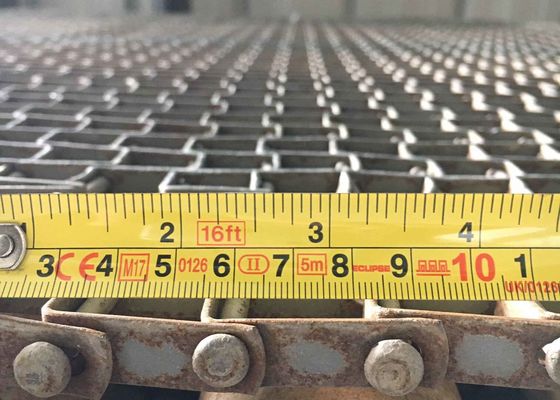

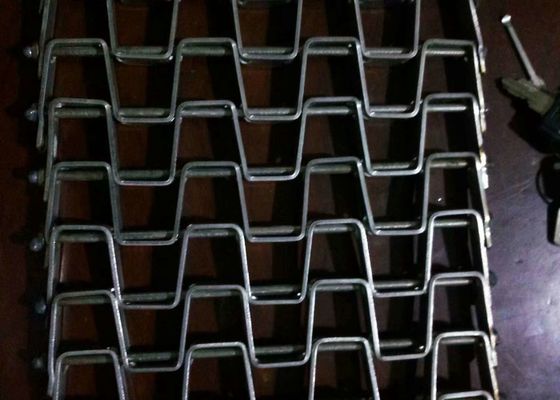

0.105" 0.12" Flat Wire Conveyor Belt Heavy Duty Clinched Edge Weld Edge
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Large Open Area For Excellent Air Circulation. | Product Name | Flat Wire Conveyor Belt |
|---|---|---|---|
| Material | Stainless Steel | Edge Type | Clinched Edge & Welded Edge |
| Duty Type | Standard Duty & Heavy Duty | Mesh Size | 1" × 1", ½" × 1", ½" × ½", ¾" × 1", Etc |
| Flat Strip | 3/8" × .046", 1/2" × .062", Etc | Rod Diameter | 0.105", 0.12", 0.195", Etc |
| Roll Width | To 240" | Applications | Transport, Cooking, Heating, Drying, Cooling, Coating, Etc |
| Highlight | 0.12" Flat Wire Conveyor Belt,0.105" Flat Wire Conveyor Belt,0.105" Heavy Duty stainless steel conveyor |
||
Product Description
Clinched Edge Weld Edge Standard Duty Heavy Duty Flat Wire Conveyor Belt
Stainless Steel Flat Wire Belt Introduction:
Stainless Steel Flat Wire Belt constructed of cross rods and flat metal strips, can provide an open mesh with flat surface, endless splicing, easy air circulation, excellent fluid drainage as well as ease of cleaning. Meanwhile, they are easy to maintain just replacing the section that is damaged or worn down. Offer a flat conveying surface and a maximum open area for free air flow or water drainage. They are easy to clean and are extremely sanitary, especially when manufactured with Ashworth-recommended clinched edges. Clinched-edge treatment of these belts results in a number of additional user benefits which are fully outlined in the product technical bulletin.
Specification:
| Flat Wire Belt Specifications(Imperial Unit) | ||||
| Styles | Mesh size |
Flat Strip (Height × Thickness) |
Rod Diameter | Belt width |
| Standard Duty & Clinched Edge | 1" × 1" | 3/8" × .046" | 0.105" | 4.5" to 240" |
| ½" × 1" | 3/8" × .046" | 0.105" | 4.125" to 240" | |
| ½" × 1" | 3/8" × .046" | 0.105" | 4.125" to 240" | |
| ¾" × 1" | 3/8" × .046" | 0.12" | 4.5" to 240" | |
| Standard Duty & Welded Edge | 1" × 1" | 3/8" × .046" | 0.105" | 3" to 240" |
| ½" × 1" | 3/8" × .046" | 0.105" | 3.25" to 240" | |
| ½" × ½" | 3/8" × .046" | 0.105" | 3" to 240" | |
| ½" × 1" | 3/8" × .046" | 0.12" | 3.25" to 240" | |
| Heavy Duty & Clinched Edge | 1" × 1" | 1/2" × .062" | 0.192" | 10" to 192" |
| ½" × 1" | 1/2" × .062" | 0.192" | 10" to 192" | |
Types:
Standard Duty Clinched Selvage Belting; Standard Duty Welded Selvage Belting; Heavy Duty Welded Selvage Belting; Heavy Duty Clinched Selvage Belting; Key-Turn Heavy Duty Radius Belting.
Materials:
AISI304(DIN1.4301), AISI304L(DIN1.4306), AISI316(DIN1.4401), AISI316L(DIN1.4404), and other stainless steel alloy.
Features:
Large open area for excellent air circulation.
Optional side plates, reinforcing links and flights.
Strong edge avoids snagging or catching even there are conveyor protrusions.
Low maintenance.
Suitable for friction or sprocket drive.
Anti-slipping and last for years if used well.
Durable structure prevents belt from deforming under heavy loads.
Applications:
Transport, Cooking, Heating, Drying, Cooling, Coating, Drainage, Freezing, Enrobing, Frying, Baking, Dough Rolling, Annealing, Battering, Breading, Curing, Dewatering, Shrink-Wrapping, Packing, Forming, Elevating, De-Elevating, Icing, etc
Specifications Drawing:
Packing:
Warpped with plastic film, then in plywood case or wooden case. Or as your requests.
