Spiral Curtain S Type Decorative Metal Mesh Screen

  • Spiral Curtain S Type Decorative Metal Mesh Screen
  • Spiral Curtain S Type Decorative Metal Mesh Screen
  • Spiral Curtain S Type Decorative Metal Mesh Screen
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 30m Length
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Strength, Great Corrosion Resistance, Etc Name Spiral Mesh Curtain S Type
Material Stainless Steel, Brass, Aluminum Shape S
Color Silver, Brass, Bronze, Gold Width 1.0 To 6.0m
Length 0.6m To 30m Application Building Facade, Interior Design
Highlight

S Type Decorative Metal Mesh Screen

,

TENGLU Curtain decorative metal mesh screen

,

TENGLU Spiral decorative metal screen
Leave a Message
Product Description

Spiral Mesh Curtain S Type Mostly With Stainless Steel and Aluminum



S Type Spiral Mesh Curtain The S-Type spiral mesh curtain is also known as coil drapery mesh and pre-coiled spiral wire mesh, it is produced by special weaving machine by pre-coiled spiral wire, the wire's length is the curtain's height. S-Type spiral mesh curtain is widely used in construction and decoration industries.





Material:



Stainless steel: 201,202, 304, 316, 321, 410, 430
Copper: brass, pure copper, phosphor bronze
Pure Aluminum & Aluminum Alloy: 1050, 1060, 1100, 5052, 5056



Features



High strength;

Great corrosion resistance;

No rusting;

Fire prevention;

Lightweight, easy to install;

Allow natural light and air flowing;

Recyclable, environment-friendly.



Specifications:



Roll width: 1m, 1.5m, 2m, 3m, 6m
Panel Length(Height) : 0.6m, 1m, 1.5m, 2m, 3m.
Other size on request.



Opening Size Wire Diameter Max Open Area
W (mm) A (mm) B (mm) D (mm) (%)
3 4 6 0.8 -
4 6 8 0.8 -
4 6 8 1.0 61
5 7 7 0.8 -
5 8 10 1.0 66
6 9 12 1.0 70
6 9 12 1.2 70
7 - - 1.0 73
7 - - 1.2 69
7 - 12 1.2 78
7 - 12 1.4 78
7 12 12 1.2 80
9 - - 1.6 -
12 - - 1.8 -
12 - - 2.0 -
13 - - 1.8 74
13 21 21 1.2 85
13 21 21 1.4 82
13 21 21 1.8 80
16 15 30 2.0 60
16 - - 3.0 66
18 - - 2.5 84
18 30 30 2.5 -




Spiral Mesh Curtain "S" Type Mostly With Stainless Steel and Aluminum

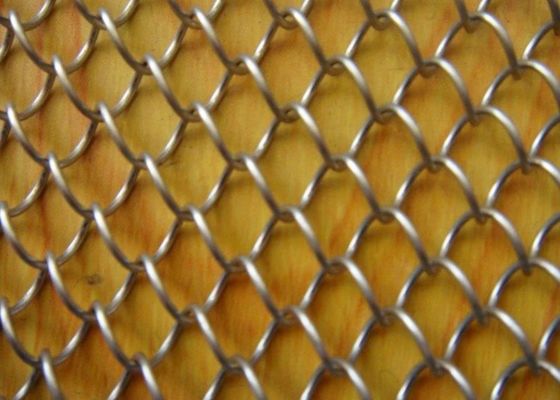

Spiral Curtain S Type Decorative Metal Mesh Screen 1



Application:



Widely used as space divider, wall decoration, lamp shade, fireplace screen, conceal doorways

shower curtain, door curtain, building facade, etc.

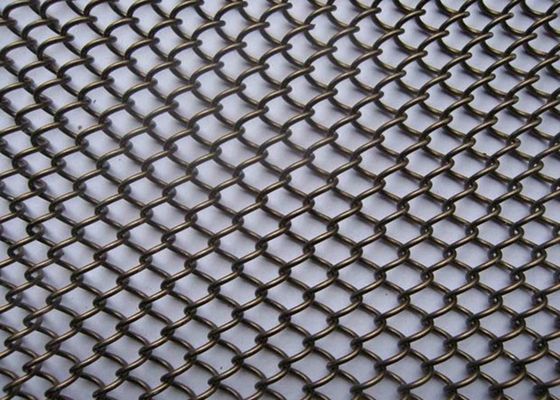

Spiral Curtain S Type Decorative Metal Mesh Screen 2


Packing:



Spiral Curtain S Type Decorative Metal Mesh Screen 3
