SS304 SS316 Decorative Metal Mesh For Sun Shade Cable And Pre Crimped Rod
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cable Rod Mesh | Material | Stainless Steel |
|---|---|---|---|
| WeaveType | Cable Rod Type | Cable Diameter | 2mm*1 |
| Cable Pitch | 17.5mm | Rod Diameter | 1.5mm |
| Rod Pitch | 3.5mm | Application | Building Decorative |
| High Light | SS316 Decorative Metal Mesh,well lighted SS304 Decorative Metal Mesh,Stainless Steel decorative steel screens |
||
Product Description

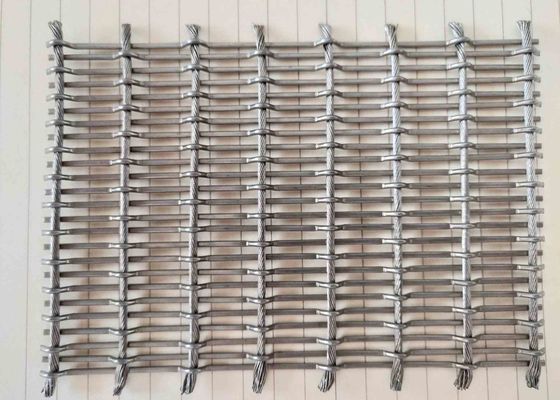

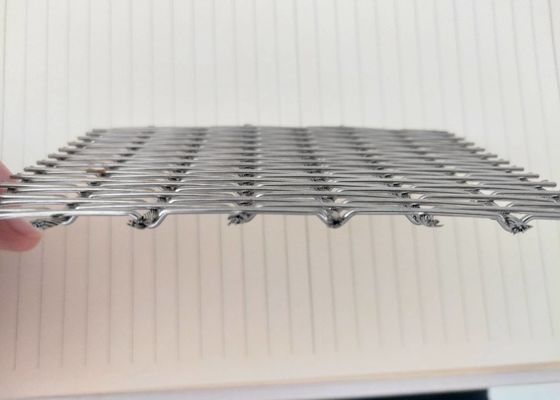

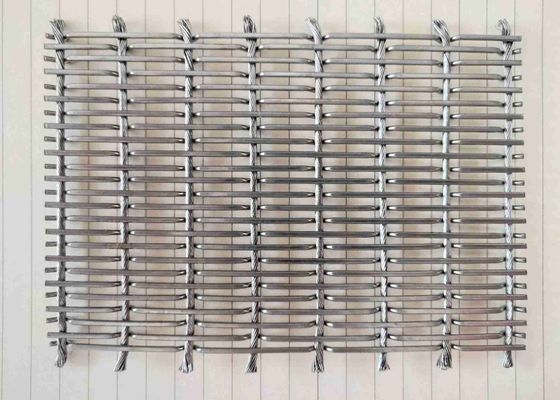

SS304 Cable Rod Mesh for Sun Shade Cable and Pre- Crimped Rod
The cable & rod mesh is made of metal bars or metal braid, according to the weaving form of woven fabric is divided into diameter weft knitting, spiral sleeve knitting and other forms, this structure allows the material to stretch while maintaing the same plane stiffness. Some of the cable & rod mesh can be used as sun shade.
Stainless Steel Cable Rod Mesh
| Material: | SS304, SS304L, SS316, SS316L |
| Cable Diameter: | 2mm×1 |
| Cable Pitch: | 17.5mm |
| Rod Diameter: | 1.5mm |
| Rod Pitch: | 3.5mm |
| Weight: | About 5.5kg/sq M |
| Applications: |
Sun Shade, Rood Divider, etc. |
Normail Specifications:
|
Material: 304, 316, 316L Cable diameter: 0.75mmX4 Cable pitch: 26.4mm Rod diameter: 1.5mm Rod pitch: 3mm Weight: 5.3kg/m2 |
Material: 304, 316, 316L Cable diameter: 1mmX4 Cable pitch: 36mm Rod diameter: 2 mm Rod pitch: 4 mm Weight: 7 kg/m2 |
Material: 304, 316, 316L Cable diameter: 1mmX4 Cable pitch: 36 mm Rod diameter: 2 mm Rod pitch: 4 mm Weight: 7.9 kg/m2 |
|
Material: 304, 316, 316L Cable diameter: 2mmX3 Cable pitch: 80 mm Rod diameter: 3 mm Rod pitch: 10 mm Weight: 6.6 kg/m2 |
Material: 304, 316, 316L Cable diameter: 2mmX4 Cable pitch: 50 mm Rod diameter: 3 mm Rod pitch: 6 mm Weight: 11.56 kg/m2 |
Material: 304, 316, 316L Cable diameter: 3mmX3 Cable pitch: 54 mm Rod diameter: 3 mm Rod pitch: 11 mm Weight: 9.5 kg/m2 |
|
Material: 304, 316, 316L Cable diameter: 2.75mmX2 Cable pitch: 40 mm Rod diameter: 4 mm Rod pitch: 14.5 mm Weight: 9.41 kg/m2 |
Material: 304, 316, 316L Cable diameter: 1.05mmx2 Cable pitch: 36mm Rod diameter: 4 mm Rod pitch: 7 mm Weight: 14.90 kg/m2 |
Material: 304, 316, 316L Cable diameter: 2mmX3 Cable pitch: 80 mm Rod diameter: 3 mm Rod pitch: 10 mm Weight: 6.67 kg/m2 |
Special without in the chart is available as your request.
Material:
Stainless Steel 300 series. Brass, Aluminum, Copper are available.
Features:
The cable & rod mesh with non-flammable, strong, functional, easy to maintain, easy to shape, estraordinary service life, more environmentally friendly and fire ety requirements. It's easy to install, fast, can be used in large areas, but also only for local decorative embellishment. It's unique shape, elegant, decorative efect is vivid, strong, diverse, different light, different environments, different time periods, different angles of observation, the effect is different, can be applied to a variety with the effect, highlighting the elegant temperament, extraordinary personality, noble taste.
Applications:
Used as cable shielding mesh, curtain wall mesh, architectural mesh,internal wall cladding, antique pickel plated,
architectural cables mesh, room divider, sunshade screen, elevator panel, partition walls, elongated mesh, etc.
Packing:
