0.45mm 0.6mm Copper Facade Mesh , Decorative Woven Wire Mesh

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 30m Length
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Copper Facade Mesh Material Brass, Copper
WeaveType Cable Rod Type Cable Diameter 0.45m, 0.6mm, 1mm, 2mm, 3mm, Etc
Cable Pitch 3.5mm, 5.5mm, 36mm, 40mm, 50mm, Etc Rod Diameter 0.5mm, 0.8mm, 1.5mm, 2mm, Etc
Rod Pitch 1.6mm, 2mm, 3mm, 4mm, 6mm, 11mm, 15mm, Etc Application Building Decorative
High Light

Copper facade mesh

,

0.6mm facade mesh

,

0.45mm decorative woven wire mesh

Leave a Message
Product Description

Copper Facade Mesh Copper Rods Cable Mesh Building Decoration

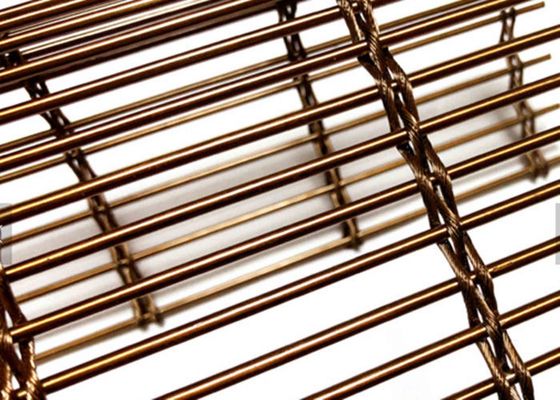

Copper/ Brass Facade Mesh- Cable Rod Type

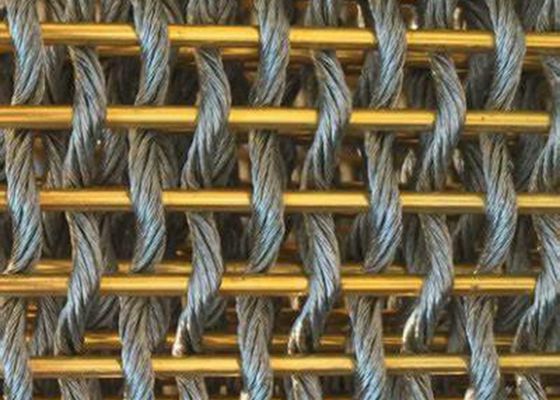

Brass facade mesh is made with braided wire ropes across the brass rods. wire ropes and metal rods every line which are woven well are parallel. And they are mutually connected by offset curved sleeves. This structure allows the material to stretch while maintaining the same plane stiffness in the other. The material with unlimited durability can bear the stress and deformation without damage. Brass and copper facade mesh are widely used in high buildings, elevators, luxury office buildings, hotels, grand ballroom, business hall and other buildings for indoor and outdoor decorations.



Specifications:


Sizes: 2000mm × 2500mm, 2134mm × 1830mm, 2440mm × 1830mm, 1500mm × 2000mm, 1220mm × 1830mm, 1500mm × 2550mm, 1600mm × 2000mm, 1860mm × 2520mm, 1524mm × 2134mm, etc.

Brass/Copper Facade Mesh—Cable Rod Type

Rope Diameter

(mm)

Rope NO.

Rope Pitch

(mm)

Rod Diameter

(mm)

Rod Pitch

(mm)

3 3 40 3 11
2.75 2 40 4 15
2 4 50 3 6
2 3 80 3 10
1.75 4 26.4 1.5 3
1.05 2 36 4 7
1 4 36 2 4
0.6 2 5.5 0.8 2
0.45 3 3.5 0.5 1.6
Special without in the chart is available as your request.

0.45mm 0.6mm Copper Facade Mesh , Decorative Woven Wire Mesh 0


Material: Copper, Brass.



Features:



Aesthetic and attractive appeal.
High strength and unique texture.
Bright transparency and refined structure.
Fashionable design and practical function.
UV resistance and fire resistance.
Shock resistance and impact resistance.
Excellent sound insulation and safety performance.
More optional choice and long service life.



Applications:


Facade decorative mesh products are widely used in high buildings, elevators, luxury office buildings, hotels, grand ballroom, business hall and other buildings for indoor and outdoor decoration. Besides, also can be used as laminated glass mesh.

0.45mm 0.6mm Copper Facade Mesh , Decorative Woven Wire Mesh 1



Seaworthy Packing: waterproof film then in carton or wooden case.


0.45mm 0.6mm Copper Facade Mesh , Decorative Woven Wire Mesh 2



Please look at following drawing, we need material, diameter of cable, diameter of rod, width x length and quantity to offer an exact quote.
