AISI 6mmx1mm Stainless Steel Metal Mesh For Architectural Decoration
Product Details
| Features | Durable | Product Name | Balanced Flat Spiral Wire Weave Mesh |
|---|---|---|---|
| Material | Stainless Steel Flat Wire | Standard | AISI, DIN, SUS, Etc |
| Weave Type | Spiral Weave | Applications | Widely Used In The Curtain Of Base Construction |
| Highlight | TENGLU 1mm stainless steel metal mesh,spiral weave 6mm stainless steel metal mesh,AISI stainless steel wire mesh |
||
Product Description

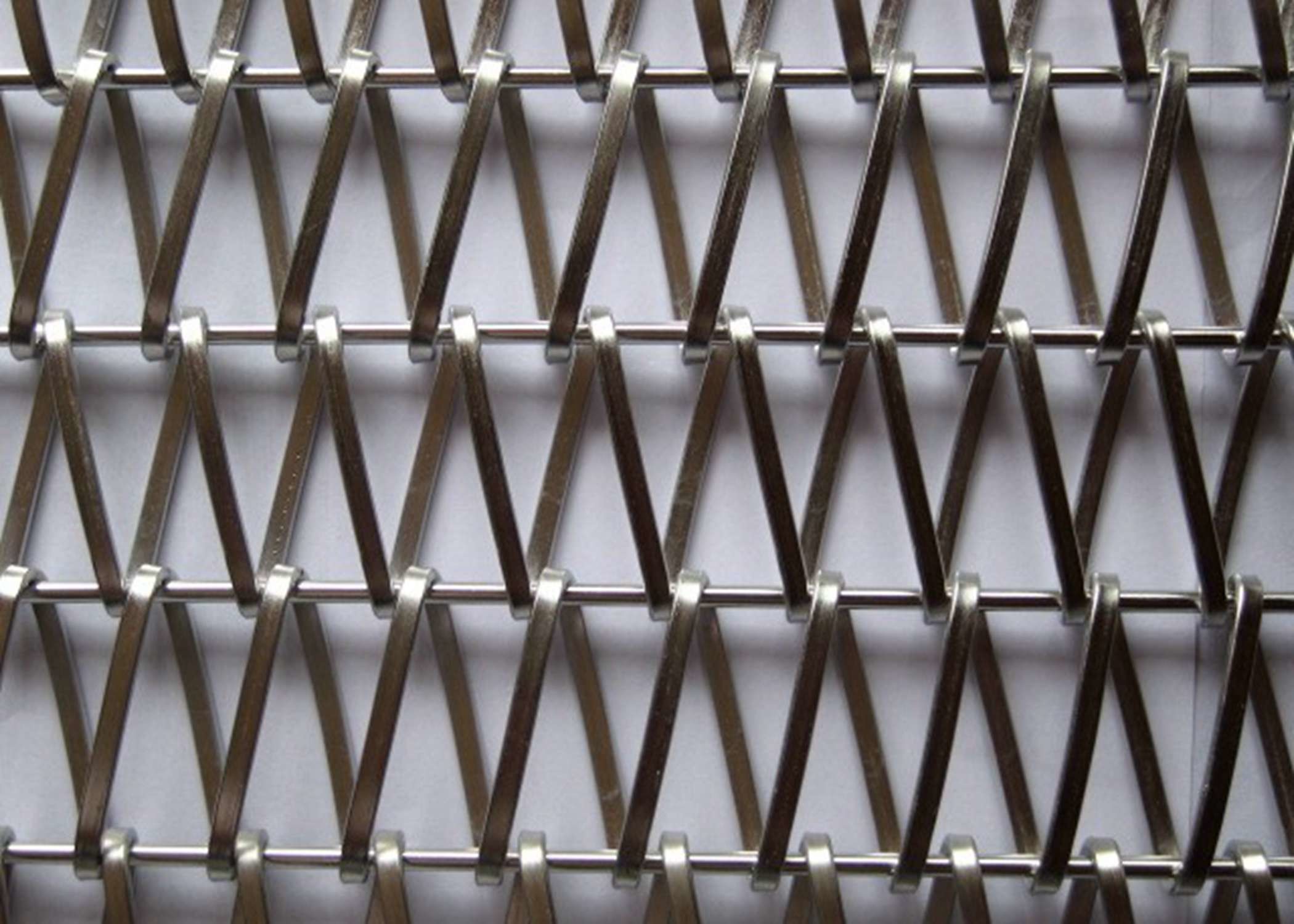

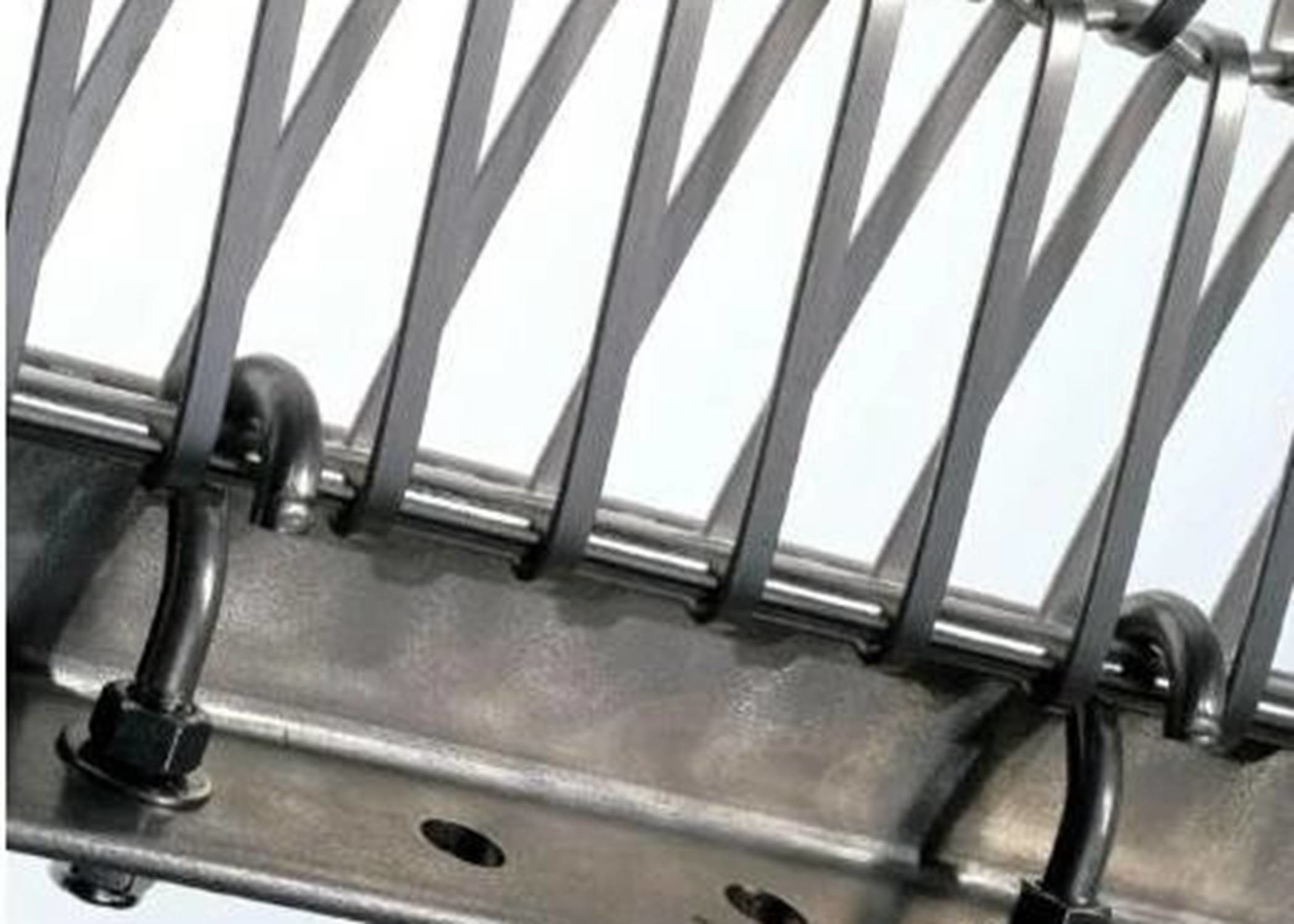

Stainless Steel Balanced Flat Spiral Wire Weave Mesh for Architectural Decoration
Balanced Spiral Weave Mesh Architectural Facade, also called spiral metal mesh belts, is made of high quality of stainless steel flat wire and rod. It can be used as a decorative materials in industrial buildings. The spiral wire with cambered bent, bright metal color shows another sense. This kind of mesh is more and more used as curtain walls, ceilings, isolation wall, curtain screens and so on.
| Flat Wire Spiral Weave Mesh for Wall Facade | |
| Material | Stainless Steel 304/316 |
| Spiral Diameter | 6mm x 1mm |
| Spiral Pitch | 36mm |
| Cross Rod Diameter | 3mm |
| Cross Rod Pitch | 64.5mm |
| Open Area | 64% |
| Weight | 3.8kg/㎡ |
| Flat Wire Spiral Weave Mesh for Wall Facade | |
| Material | Stainless Steel 304/316 |
| Spiral Diameter | 4mm x 2mm |
| Spiral Pitch | 20mm |
| Cross Rod Diameter | 3.5mm |
| Cross Rod Pitch | 40mm |
| Open Area | 55% |
| Weight | 9.3kg/㎡ |
Features:
Durable, luxuriant high-grade, high technology content,and is widely used in the curtain of base construction, condole top, stairs, elevators, luxurious office buildings, hotels, luxury ballroom, business hall indoor and outdoor decoration of buildings. Under the illuminate of lamplight, it will be magnificent, elegant and delicate.
Applications:
Wire mesh facades;
Shade screens;
Architecture ceilings;
Metal draperies for walls, partition and isolation screens;
Staircases isolation screen, elevator cabins screen;
Floor covering fabrics;
Other special uses.
Shade screens;
Architecture ceilings;
Metal draperies for walls, partition and isolation screens;
Staircases isolation screen, elevator cabins screen;
Floor covering fabrics;
Other special uses.
We need to know: material, spiral flat wire diameter, spiral pitch, cross rod diameter, cross rod pitch. Following example for reference.
Packing: Warpped with plastic film, then in wooden case.
