0.2m To 3.0m Decorative Metal Mesh , X Type Stainless Steel Wire Rope Mesh
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | X Type Rope Mesh | Material | Stainless Steel Rope |
|---|---|---|---|
| Weave Type | X-Type | Width | 0.2m To 3.0m |
| Common Length | 30m, 100m | Applications | Architecture Applications, For Staircases, Facades And Ceilings. |
| Highlight | 3.0m Decorative Metal Mesh,0.2m Decorative Metal Mesh,X Type Stainless Steel Wire Rope Mesh |
||
Product Description
X Type Cable/ Rope Mesh With Stainless Steel for Architecture Applications

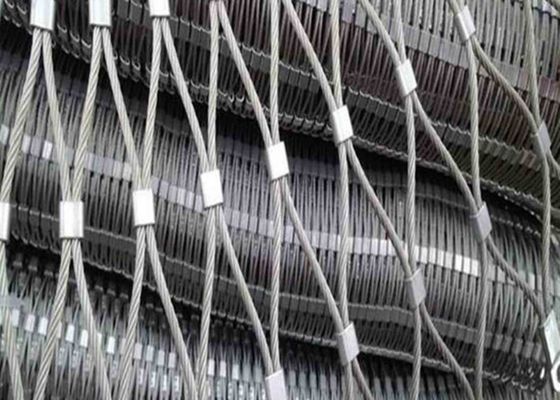

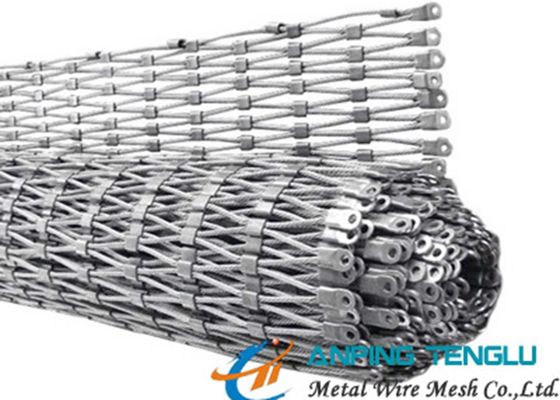

Stainless Steel X-Type Cable Mesh
X-Type cable mesh is also known as flexible rope mesh, use stainless steel wire as raw material, produced into 7 x 7 (or 7 x 19) wire rope, then joined with stainless steel ferrules constructed a rhombus mesh. This type rope mesh has excellent impacting-resistant and breaking resistant force, it is widely used in security system applications.
Specifications:
Structure: 7×7
| Specifications of X-Type Rope Mesh(7×7) | ||||
|
Cable Diameter (mm) |
Opening Size MW×MH (mm) |
Transparency (%) |
Weight (kg/㎡) |
Min. Tensile Strength (KN) |
| 1.0 | 25×43 | 88.4 | 0.91 | 0.63 |
| 1.0 | 30×52 | 90.6 | 0.68 | 0.63 |
| 1.0 | 35×61 | 92.0 | 0.54 | 0.63 |
| 1.0 | 40×69 | 93.3 | 0.44 | 0.63 |
| 1.0 | 50×87 | 94.8 | 0.32 | 0.63 |
| 1.0 | 60×104 | 95.8 | 0.25 | 0.63 |
| 1.0 | 70×121 | 96.4 | 0.20 | 0.63 |
| 1.0 | 80×139 | 96.9 | 0.17 | 0.63 |
| 1.5 | 25×43 | 82.6 | 1.71 | 1.55 |
| 1.5 | 30×52 | 85.9 | 1.31 | 1.55 |
| 1.5 | 40×69 | 89.9 | 0.87 | 1.55 |
| 1.5 | 50×87 | 92.2 | 0.64 | 1.55 |
| 1.5 | 60×104 | 93.7 | 0.50 | 1.55 |
| 1.5 | 70×121 | 94.6 | 0.41 | 1.55 |
| 1.5 | 80×139 | 95.3 | 0.35 | 1.55 |
| 1.5 | 100×173 | 96.3 | 0.27 | 1.55 |
| 1.5 | 120×208 | 97.0 | 0.22 | 1.55 |
| 1.5 | 140×242 | 95.5 | 0.18 | 1.55 |
| 1.5 | 160×277 | 97.8 | 0.15 | 1.55 |
| 1.5 | 180×312 | 98.0 | 0.14 | 1.55 |
| 2.0 | 40×69 | 86.1 | 1.45 | 2.75 |
| 2.0 | 50×87 | 89.3 | 1.07 | 2.75 |
| 2.0 | 60×104 | 91.4 | 0.85 | 2.75 |
| 2.0 | 70×121 | 92.6 | 0.70 | 2.75 |
| 2.0 | 80×139 | 93.6 | 0.60 | 2.75 |
| 2.0 | 100×173 | 95.0 | 0.45 | 2.75 |
| 2.0 | 120×208 | 95.9 | 0.36 | 2.75 |
| 2.0 | 140×242 | 96.6 | 0.30 | 2.75 |
| 2.0 | 160×277 | 97.1 | 0.26 | 2.75 |
| 2.0 | 180×312 | 97.5 | 0.23 | 2.75 |
| 2.0 | 200×346 | 97.8 | 0.20 | 2.75 |
| Note: α=60° | ||||
Structure: 7×19
| Specifications of X-Type Rope Mesh(7×19) | ||||
|
Cable Diameter (mm) |
Opening Size MW×MH (mm) |
Transparency (%) |
Weight (kg/㎡) |
Min. Tensile Strength (KN) |
| 3.0 | 50×87 | 85.2 | 2.48 | 5.12 |
| 3.0 | 60×104 | 87.1 | 1.94 | 5.12 |
| 3.0 | 70×121 | 89.0 | 1.59 | 5.12 |
| 3.0 | 80×139 | 90.5 | 1.34 | 5.12 |
| 3.0 | 100×173 | 92.6 | 1.01 | 5.12 |
| 3.0 | 120×208 | 93.9 | 0.81 | 5.12 |
| 3.0 | 140×242 | 94.9 | 0.68 | 5.12 |
| 3.0 | 160×277 | 95.6 | 0.58 | 5.12 |
| 3.0 | 180×312 | 95.9 | 0.51 | 5.12 |
| 3.0 | 200×346 | 96.3 | 0.45 | 5.12 |
| 4.0 | 200×346 | 95.0 | 0.70 | 5.12 |
| Note: α=60° | ||||
Other specifications according to your requirements.
Specifications:
Dimond Opening Sizes: 25mm to 200mm(MW), 43mm to 436mm(MH); 60
Cable Diameters: 1.0 mm to 4.0 mm.
Roll Width: 0.2m, 0.6m, 1.0m, 1.2m, 2.0m, 3.0m.
Roll Length: 2m, 10m, 15m, 30m.
Materials:
Stainless Steel 201, 202; 304, 304L, 316, 316L, 321; 410, 420, 430. The commonly constructed materials are 304 and 316 stainless steel.
Features:
Stable and strong;
High security and ety;
Allows ample light and airflow;
Transparent and flexible;
Innovative and durable;
Sustainability and recycling.
Applications:
In LED applications, as support part;
In zoo applications, for security screen of animal cages and enclosures;
In architecture applications, for green wall, parking, bridges, staircases, facades and ceilings.
Packing: Warpped with plastic film, then in wooden case.
