18 to 60 mesh Plain Weave Wire Mesh
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Smooth Surface | Product Name | Black Wire Cloth |
|---|---|---|---|
| Material | Black Wire/ Iron Wire | Woven Type | Plain Weave, Twill Weave, Dutch Weave |
| Mesh Counts | 18 To 60 Per Inch | Roll Width | 0.5m To 1.5m |
| Roll Length | 30m | Outer Shape | Disc, Square Panels Or In Rolls |
| Standard | ASTM | Usage | Filtration Industry |
| Highlight | 60 Mesh Plain Weave Wire Mesh,18 mesh plain weave wire mesh,Black Wire Cloth |
||
Product Description
Black Wire Cloth 18 to 60mesh With Features of Uniform meshes Smooth surface
Black woven wire cloth introduction:

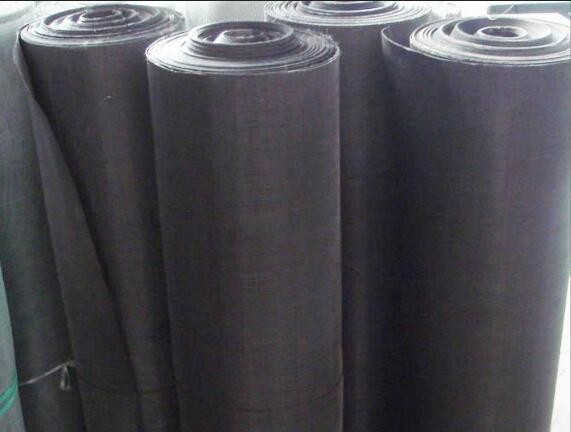

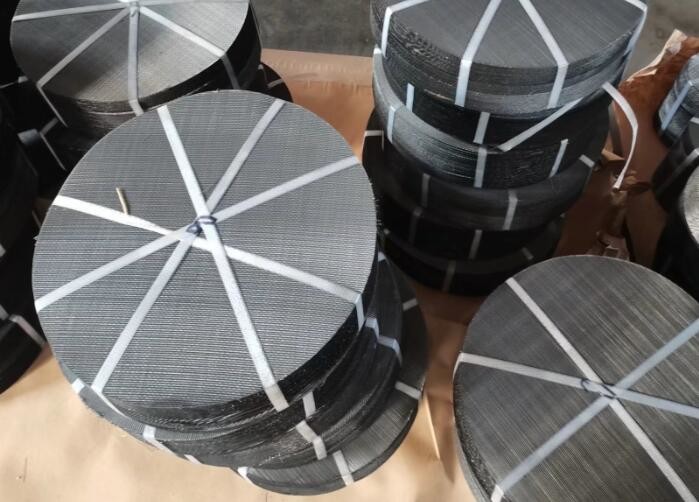

Black woven wire cloth is made of low carbon steel wire without any surface treatment. It is also called black wire cloth, iron cloth. The black wire is woven through plain weave, twill weave and dutch weave. Black woven wire mesh is commonly supplied in rolls, we can also cut to pieces in round, rectangular, square, oval and other shapes as your requirements.
Black woven wire mesh has equal meshes and smooth surface, it can be used for different applications, such as filtering gas and liquid in the plastic recycling, rubber industry, oil industry and other fields.
Commen Specifications(Sheet 1)
| Black Wire Cloth | |||
| Mesh | Wire Diameter (bwg) | Specification | Weight (kg) |
| 18x18 | 0.45mm | 3'x100' | 50.8 |
| 20x20 | 0.35mm | 3'x100' | 34.1 |
| 22x22 | 0.30mm | 3'x100' | 27 |
| 24x24 | 0.33mm | 3'x100' | 36.4 |
| 26x26 | 0.33mm | 3'x100' | 39.4 |
| 28x28 | 0.30mm | 3'x100' | 35.1 |
| 30x30 | 0.30mm | 3'x100' | 37.6 |
| 32x32 | 0.20mm | 3'x100' | 17.8 |
| 34x34 | 0.22mm | 3'x100' | 22.9 |
| 36x36 | 0.22mm | 3'x100' | 24.2 |
| 38x38 | 0.22mm | 3'x100' | 25.6 |
| 40x40 | 0.20mm | 3'x100' | 22.3 |
| 42x42 | 0.17mm | 3'x100' | 16.9 |
| 44x44 | 0.17mm | 3'x100' | 17.7 |
| 46x46 | 0.17mm | 3'x100' | 18.5 |
| 48x48 | 0.17mm | 3'x100' | 19.3 |
| 50x50 | 0.17mm | 3'x100' | 20.1 |
| 56x56 | 0.17mm | 3'x100' | 22.5 |
| 60x60 | 0.17mm | 3'x100' | 24.2 |
| Roll Width: 0.6-1.5meter | |||
Commen Specifications(Sheet 2)
| Black Wire Cloth Dutch Weave | |
| Mesh | Wire Diameter (mm) |
| 12X64 | 0.58/0.64 |
| 14X88 | 0.50/0.33 |
| 24X110 | 0.36/0.25 |
| 30X150 | 0.23/0.18 |
| 40X200 | 0.18/0.13 |
Material:
Super quality low carbon steel wire.
Patterns:
Plain weave, twill weave, plain dutch weave and twill dutch weave while plain weave is the most popular one. Wire cloth plain and twill weave are all in square opening, while Dutch weave in rectangular opening.
General sizes:
Normally we provide plain steel wire cloth from 10mesh to 80mesh in square opening, in rolls 30m long and in width of 36",48",0.6m, 1m, 1.2m. Other sizes also available at customers specific requirements.
Packing:
Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
