AISI 1.6mm to 4mm Wire Conveyor Belt Bright Silver
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Strength And Excellent Carrying Ability. | Product Name | Eyelink Belt |
|---|---|---|---|
| Material | Stainless Steel | Standard | AISI, DIN, SUS, Etc |
| Surface | Bright Silver | Wire Diameter | 1.6mm To 4mm |
| Cross Rod Diameter | 4mm To 8mm | Belt Width | 50mm To 7m |
| Belt Length | Any Desired Length | Applications | Food Grade |
| High Light | 0.105'' AISI Wire Conveyor Belt,0.12'' 4mm Wire Conveyor Belt,0.12'' 1.6mm steel mesh belt |
||
Product Description

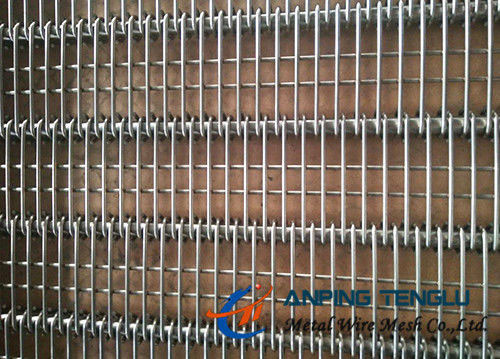

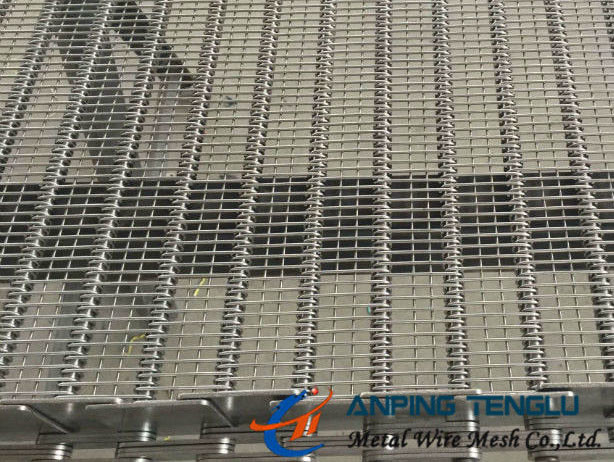

AISI Stainless Steel Eyelink Belt AISI Standard for Food Grade Wire Ring Belt
Stainless Steel Eyelink Belt
Eyelink belts are durable and designed to be flexible, combine a flat, stable surface with the dimensional stability and robustness of metal and are well suited to convey heavy loads and unstable or fragile products that require good support from the conveyor belt. This kind of belt is ideal for food freezing, frying, cleaning, baking and other applications where no cross support is required.
Features:
High strength and excellent carrying ability.
Open flat surface for superb air circulation and fluid drainage.
High reliability, durability with long service life even being used in 24/7 product line.
A wide range of materials and sophisticated designs for virtually every application.
Offer continuous product support minimizing product marking.
Smooth and single level surface without product entrapment.
Excellent resistance against shock and lateral forces.
Applications:
This belt is familiar in a diverse field of applications since the eye link conveyor belt is a really stable, accurate and trustworthy belt. Especially the combination with the opportunities in driving elements causes the belt to be used in many different branches and markets. Several common examples are:
Oven belts in bread, pastry and potato processing industries
Belts in cooling and freezing systems
Diverse applications in potato-. grocery and fruit processing industries
Belts in sterilisation tunnels for for example the pharmaceutical industry
Belts in drying and pasteurizing systems
Belts in industrial cleaning systems.
Specifications:
| Standard Eyelink Belt Specifications | |||
|
Belt Pitch (Inch) |
Eye flex Wire Dia. (Inch) |
Cross Rod Dia. (Inch) |
Minimum Gap Spacing (Inch) |
| 0.98" | 0.08" | 0.2" | 0.08" |
| 1.00" | 0.08" | 0.2" | 0.08" |
| 1.18" | 0.06" | 0.16" | 0.06" |
| 1.18" | 0.08" | 0.16" | 0.08" |
| 1.18" | 0.08" | 0.2" | 0.08" |
| 1.25" | 0.08" | 0.2" | 0.08" |
| 1.97" | 0.06" | 0.2" | 0.06" |
| 1.97" | 0.06" | 0.2" | 0.06" |
| 1.97" | 0.08" | 0.2" | 0.08" |
| 1.97" | 0.1" | 0.2" | 0.1" |
| 1.97" | 0.1" | 0.24" | 0.1" |
| 1.97" | 0.12" | 0.31" | 0.12" |
| 2.00" | 0.06" | 0.2" | 0.06" |
| 2.00" | 0.06" | 0.31" | 0.06" |
| 2.00" | 0.08" | 0.24" | 0.08" |
| 2.00" | 0.08" | 0.31" | 0.08" |
| 2.00" | 0.10" | 0.24" | 0.10" |
| 2.00" | 0.10" | 0.31" | 0.10" |
| 2.00" | 0.12" | 0.31" | 0.12" |
| 2.00" | 0.16" | 0.31" | 0.16" |
| 2.36" | 0.08" | 0.2" | 0.08" |
| 2.36" | 0.10" | 0.2" | 0.10" |
| 2.76" | 0.16" | 0.28" | 0.16" |
| 2.95" | 0.10" | 0.2" | 0.10" |
| 2.95" | 0.10" | 0.31" | 0.10" |
| 3.94" | 0.12" | 0.31" | 0.12" |
Please let us know:
1) Material
2) Wire Diameter
3) Spiral Pitch
4) Rod Diameter
5) Rod Pitch
6) Total Width
7) Length
