Single Loop 1mm To 3mm Wire Conveyor Belt For Food Processing Wire Ladder Belt
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Large Open Area. | Product Name | Wire Ladder Belt |
|---|---|---|---|
| Material | Stainless Steel | Surface | Bright Silver |
| Wire | 1mm To 3mm | Mesh Hole | 30mm To 100mm |
| Chain Pitch | 5mm To 15mm | Belt Width | 0.2m To 2m |
| Length | 1m To 100m | Application | Cooling Systems In For Example Bread & Pastry Industry. |
| High Light | 0.12'' 3mm Wire Conveyor Belt,0.12'' 1mm Wire Conveyor Belt,0.12'' Single Loop steel mesh conveyor belt |
||
Product Description

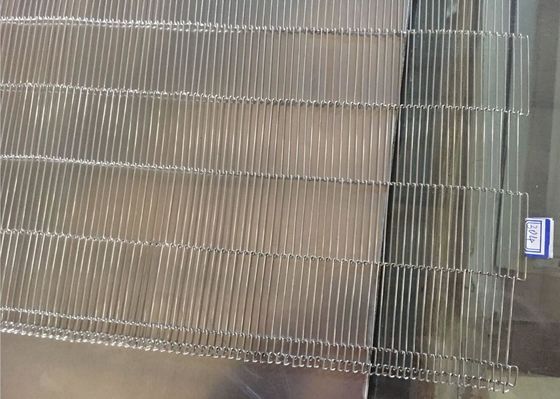

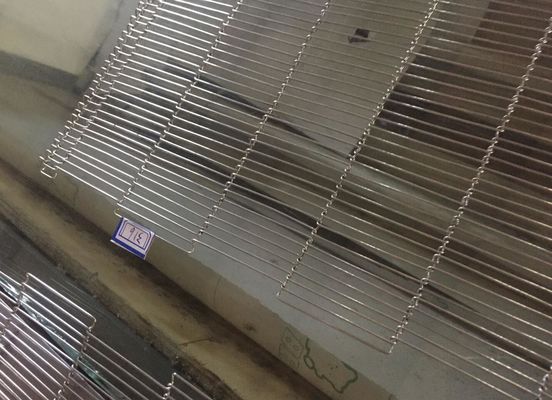

Stainless Steel Single Loop End Belt Type for Food Processing Wire Ladder Belt
Stainless Steel Wire Ladder Belt
Ladder belt is also called chocolate conveyor belt(flat flex wire mesh conveyor belt). It is made by assembling the successively bent wires. Ladder Belt is a simple and inexpensive type of belt which enables a positive sprocket drive to be used. Light weight&open construction makes this belt popular in baking and food processing. Usually, stainless steel material is the most widely used among our customers.
Specifications
| Common Specifications of Ladder Belt | |||||||
| Pitch(mm) | 7.26mm | 7.26mm | 6.00mm | 7.26mm | 12.7mm | 7.26mm | 7.26mm |
| Wire Diameter(mm) | 1.57mm | 1.57mm | 1.27mm | 1.57mm | 2.34mm | 1.57mm | 1.27mm |
| No. of Spaces | 3 | 5 | 7 | 7 | 7 | 7 | 9 |
| Overall Width(mm) | 203mm | 356mm | 400mm | 457mm | 500mm | 560mm | 600mm |
| Item Name | specifcation | Max | Min | Remark |
| Flat flex belt | Width | 2.0m | 0.2m | |
| Length | 200m | 1.0m | ||
| Wire diameter | 3.0mm | 1.0mm | ||
| Mesh hole width | 100mm | 30mm | non welded | |
| Chain pitch | 15.0mm | 5.0mm | ||
| Edge treatment width | 10.0mm | 20.0mm | bend link | |
| Material grade | Q195 or Q235 | |||
| ss 201, 304, 316L, 430 | ||||
| Driven type | Sprockets driven directly | no need chains | ||
Other specifications at your requests.
Common Materials:
AISI/SUS 304, 304L, 316, 316L.
Belt Drawing Details:
Features:
Large open area.
Small transfers.
Non-slip positive drive.
Very low belt mass for improved operating efficiency.
Accurate tracking.
Hygienic design, Easy to clean, clean-in-place capability.
USDA approved.
Applications:
The ladder belt has many different applications. Several common applications are mentioned below:
Cooling systems in for example bread & pastry industry.
Belt in filtering installations.
Washing systems.
Drying systems.
Canned food processing.
Conveyor belt in installations for baking, frying, grilling, etc.
Packing: Warpped with water-proof plastic material, then in wooden box.
