Low Carbon Steel 10 to 60 mesh Wire Mesh Filters
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Even Meshes And Smooth Surface | Product Name | Black Wire Cloth |
|---|---|---|---|
| Material | Low Carbon Steel Wire | Weaving | Plain Weave, Twill Weave, Dutch Weave |
| Shape | Round, Rectangular, Square, Oval, Also Can Be Customized | Wire | 0.15 To 0.6mm |
| Mesh | 10 To 60 Mesh | Width | 0.914 To 1.2m |
| Length | Commonly Is 30m, Other Specs Can Be Customized. | Application | Widely Used As The Filtration Material In Various Fields |
| High Light | 60 Mesh Wire Mesh Filters,10 Mesh Wire Mesh Filters,Black Wire Cloth Filter |
||
Product Description

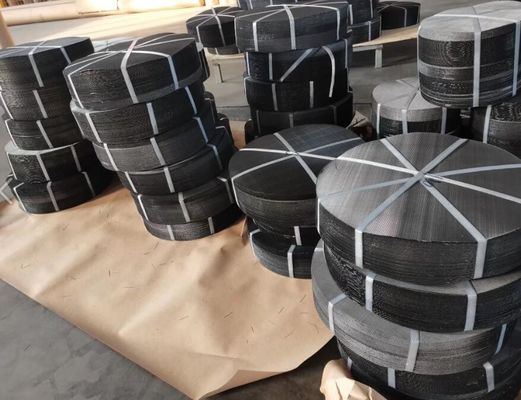

Black Wire Cloth Filter Disc Round Shape Square Shape for Filters Wire Mesh Filters
Black iron wire cloth Introduction:
Black iron wire cloth is made in plain steel wire,so it is also called"black wire cloth",which is widely used as filters in rubber industry,plastics industry and grain industry.
Black wire cloth is made of low carbon steel wire. It is also called black woven wire mesh, iron wire cloth. The black wire is woven through plain weave, twill weave and dutch weave. Black woven wire mesh is commonly supplied in rolls, we can also cut to pieces in round, rectangular, square, oval and other shapes as your requirements.
Black wwire cloth has equal meshes and smooth surface, it can be used for different applications, such as filtering gas and liquid in the plastic recycling, rubber industry, oil industry and other fields.
General sizes:
Normally we provide plain steel wire cloth from 10mesh to 80mesh in square opening, in rolls 30m long and in width of 36",48",0.6m, 1m, 1.2m. Other sizes also available at customers specific requirements.
Commen Specifications(Sheet 1)
| Black Wire Cloth | |||
| Mesh | Wire Diameter (bwg) | Specification | Weight (kg) |
| 18x18 | 0.45mm | 3'x100' | 50.8 |
| 20x20 | 0.35mm | 3'x100' | 34.1 |
| 22x22 | 0.30mm | 3'x100' | 27 |
| 24x24 | 0.33mm | 3'x100' | 36.4 |
| 26x26 | 0.33mm | 3'x100' | 39.4 |
| 28x28 | 0.30mm | 3'x100' | 35.1 |
| 30x30 | 0.30mm | 3'x100' | 37.6 |
| 32x32 | 0.20mm | 3'x100' | 17.8 |
| 34x34 | 0.22mm | 3'x100' | 22.9 |
| 36x36 | 0.22mm | 3'x100' | 24.2 |
| 38x38 | 0.22mm | 3'x100' | 25.6 |
| 40x40 | 0.20mm | 3'x100' | 22.3 |
| 42x42 | 0.17mm | 3'x100' | 16.9 |
| 44x44 | 0.17mm | 3'x100' | 17.7 |
| 46x46 | 0.17mm | 3'x100' | 18.5 |
| 48x48 | 0.17mm | 3'x100' | 19.3 |
| 50x50 | 0.17mm | 3'x100' | 20.1 |
| 56x56 | 0.17mm | 3'x100' | 22.5 |
| 60x60 | 0.17mm | 3'x100' | 24.2 |
| Roll Width: 0.6-1.5meter | |||
Commen Specifications(Sheet 2)
| Black Wire Cloth Dutch Weave | |
| Mesh | Wire Diameter (mm) |
| 12X64 | 0.58/0.64 |
| 14X88 | 0.50/0.33 |
| 24X110 | 0.36/0.25 |
| 30X150 | 0.23/0.18 |
| 40X200 | 0.18/0.13 |
Material: Super quality low carbon steel wire.
Patterns:
Plain weave, twill weave, plain dutch weave and twill dutch weave while plain weave is the most popular one. Wire cloth plain and twill weave are all in square opening, while Dutch weave in rectangular opening.
Features:
Even meshes and smooth surface.
Outstanding filtering performance.
Widely applications.
Long service life.
Applications:
The black woven wire mesh is widely used as the filtration material in various fields.
l Plastic recycling.
l Rubber industry.
l Industrial filtration.
l Oil and chemical filtration.

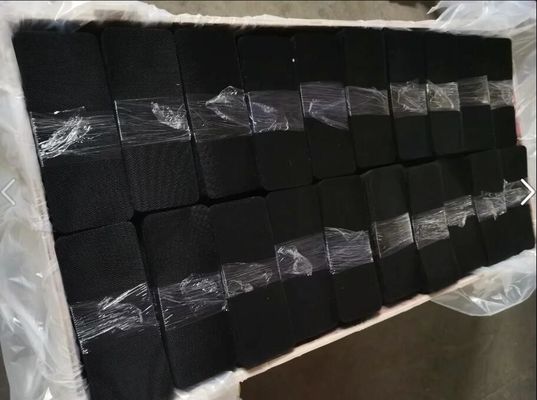

Packing:
