Al Ni Cu Stainless Steel Micro Mesh Screen 0.2mm To 1.0mm

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Plastic out side then in pallet or wooden box.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Features Excellent Strength To Weight Ratio. Product Name Micro Expanded Metal Mesh
Material Stainless Steel Surface Bright Silver
LWD×SWD 2.0 To 20.0mm × 1.0 To 10.0mm Thickness 0.2mm To 1.0mm
Max Width 2.5m Length 30m Or As Reuqired
Application Filtration, Batteries, Etc Hole Diamond, Hexagonal
High Light

TENGLU Cu Stainless Steel Micro Mesh Screen


TENGLU Ni stainless steel micro mesh screen


1.0mm micro mesh screen

Leave a Message
Product Description

Micro Hole Expanded Metal SS Al Ni Cu Material Diamond Hole Expanded Metal Mesh


Micro Expanded Metal Mesh Stainless Steel Introduction:


Micro expanded metal is a special expanded metal with small opening, it can made from carbon steel, stainless steel, copper, aluminum, nickel, titanium and other alloys. With the features of good ventilation, lighting, heat dissipation, high conductivity, sound absorption and filter and protect properties, micro expanded metal is widely used as filters, screening, coverings for audio speakers, radios and record players, electrochemical conductor in new batteries and sound insulation in medical, automotive, chemical, filtration and oil industries.

The main technology of micro expanded metal is stretching and expanding, which will not lose any material, so it is much more economical alternative to perforated metal.


Micro expanded metal is a very versatile and economical product, which is widely used as filter elements support, speaker grill covering, rain gutter filter, battery grid plate and other wide range of applications.


Hole patterns of micro expanded metal can be diamond, square, round, hexagonal. Hole type of micro expanded metal raised/standard hole and flattened hole.




Stainless Steel:201, 202, 205, 304, 304L, 316, 316L, 321
Steel: Q195, Q215, Q235
Copper: red copper plate (C10200, C11000), brass plate(CuZn40, CuZn37, CuZn35, CuZn30, CuZn20, CuZn5)
Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)
Nickel: N2, N4, N6, nickel alloy 2080, monel 400, monel 600

Note: SS304, SS316 is the most common material.



Micro Expanded Mesh General Specifications:


Thickness 0.2mm-1.0mm
Short Way of Diamond 1.0mm-10.0mm
Long Way of Diamond 2.0mm-20.0mm
Strand Width 0.2mm-2.0mm
Max Width 2500mm


Some Common Specifications



Expanded Metal

Hole size(MM) Plate size (MM)
SWD LWD Thickness Strand
2.0 3.0 0.5 0.5
2.5 4.5 0.5 0.6
3.0 6.0 0.5 0.7
3.2 5.7 0.5 1.2
4.0 8.0 0.5 1.0
5.0 10.0 1.0 1.0
5.7 12.7 1.0 1.5

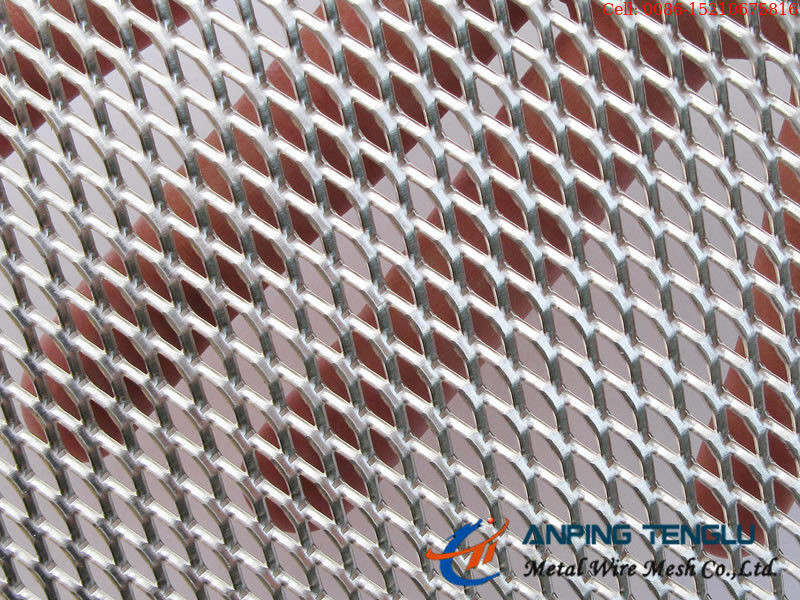

Micro Expanded Metal With Diamond, Hexagonal Hole; S.S., Al, Ni, Cu Material


Standard Expanded Metal is directly slit and stretched by punching machines without other processing,The strand width and bond come in with an angle with the plate surface. This kind structure increase the strength and hardness of expanded metal,it also brings better anti-slipping and reinforcing performance.

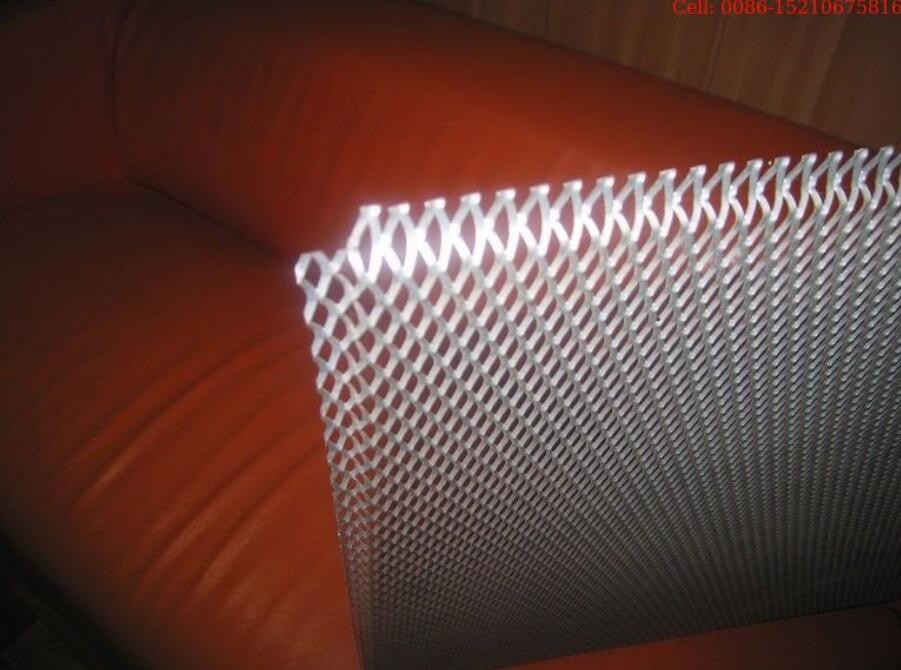

Raised Expanded Metal Diamond Hole With 1.22*2.44m, 1m*2m Panel Size





One-piece construction.
Easy to install.
Excellent strength-to-weight ratio.
Low wind resistance.
Easy to cut and shear.
Available in many styles and hole patterns.




1) Gutter filter.
Micro expanded metal can be used individually or used combined with woven wire mesh as gutter filter. It can block falling leaves entering and blocking the gutter. The meshes permit air, sunlight and rain passing through to ensure the gutter dry and clean. Additional, the small meshes of expanded metal and woven wire mesh can keep out wasps and other pests. When you use it, just fasten them on existing rain gutters, no need to replace existing rain gutter.


2) Batteries grid plate.
The micro expanded metal is key component in battery manufacturing. It is flexible and with high surface area and cost-effective. The mesh openings allow fluids flowing through them. Additional, the micro expanded metal is conductive, it allows the transport of the protons from the anode to the cathode through the membrane. The micro expanded metal can be made into coils, discs and almost any shapes as required.


3) Filtration.

The micro expanded metal with fine thickness, prevision engineered mesh openings, percent open area is widely used as filtration material in physical, chemical and other applications. Additional, the micro expanded metal can provide a consistently high level of precision and strength. Micro expanded metal has good filtering or retention performance no matter for air, light, solid or liquid.


4) EMI/RFI shielding.
Micro expanded metal can blocking and shielding Electromagnetic Interference (EMI) or Radio Frequency Interference (RFI) and other interference or unwanted frequency signals in aerospace, automotive, telecommunication or electronics industry. It adopts copper or other conductive materials to supply efficient shielding. Shapes, sizes and shielding performance can be customized according to your requirements.


5) Speaker grill covering.
Micro expanded metal provides excellent sound absorption and reducing the decibel levels in acoustic noise reduction applications. It is widely used in the microphones, loud speakers, speaker grilles to protect sensitive membranes while allowing a uniform permeability of sound.


6) Other applications of micro expanded metal.
Daily supplies.
Plant supporting shelves.
Metal gratings.
Sun shading.




Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type
