0.5'' 0.25'' Stainless Steel Welded Wire Mesh Panels Bright Silver
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Firm Structure | Material | Stainless Steel |
---|---|---|---|
Color | Bright Silver | Type | Welded |
Hole Shape | Square Hole | Opening Size | 1", 1/ 2", 1/ 4", Etc |
Width | Up To 2m | Length | 30m |
Surface Treatment | Polished | Application | Fencing |
High Light | 0.5in stainless steel welded wire mesh panels,0.25in stainless steel welded wire mesh panels,Bright Silver welded wire mesh panels |

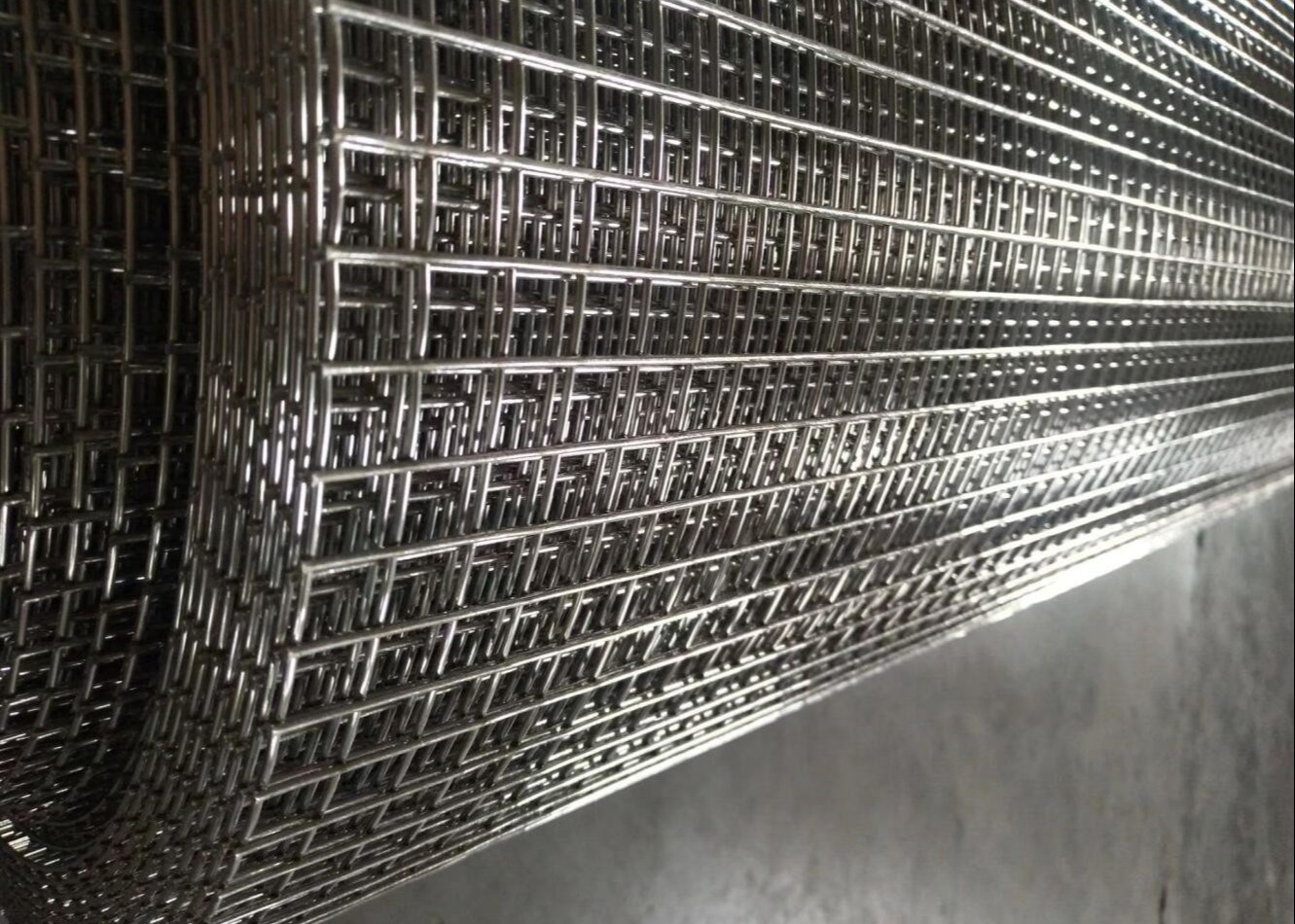

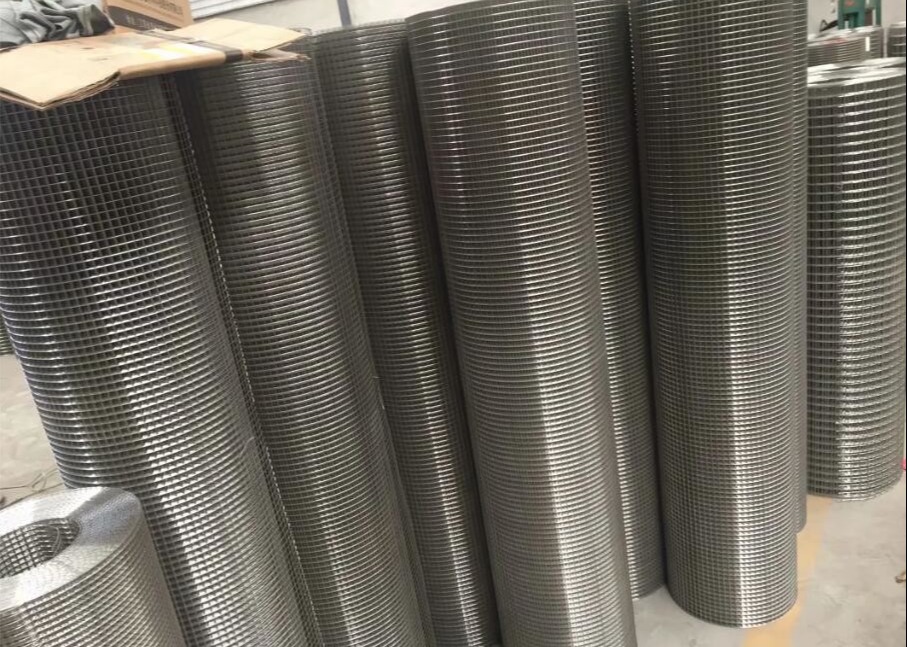

Bright Silver Stainless Steel Polished Surface SS Welded Wire Mesh
Stainless Steel Welded Wire Mesh Introduction
Stainless Steel Welded Wire Mesh is also called stainless steel welded mesh, it is a grid that consists perpendicular wire strands, which are welded at each intersection, the joining of the wires at the intersection is achieved by electric resistance welding.
Welded Wire Mesh Stainless Steel Filter Disc is cut from stainless steel welded wire meshes, mainly with 1", 1/2", 1/4" mesh sizes. Stainless steel 304, 304L, 316, 316L grades are very common materials in our factory. With it's firm structures it will not loose or scattered when cut welded wire mesh into small pieces.
Surface Treatment: Polished
Characteristics:
Stainless Steel Welded Mesh offer excellent characteristics such as corrosion resistance, oxidation resistance, acid resistance, alkali resistance, aging resistance, sunshine resistance and weather resistance. Besides this kind of product has flat even surface and strong structure, therefore this product has a long service life. Good material life of up to several decades.
Features:
Compared with other wire meshes, stainless steel welded mesh has many good properties, such as strong structure, beautiful outlook, corrosion resistance, acid resistance, alkali resistance and long service life, it is not easy to loosen even be cut into parts or exerted force on the parts. Products through sophisticated automation technology processing machinery is made of flat surface, solid structure, strong integrity, even if the cut or in part under pressure not happen slack phenomenon.
Applications:
Industrial fan & machine guards;
Small critter control;
Air vents & soffit screens;
Food applications;
Industrial separation, etc.
Specifications:
Welded Wire Mesh | ||||
Mesh Size (Inch) |
Wire Diameter (Inch) |
Opening (Inch) |
Opening Area (%) |
Material (Stainless Steel) |
1” | 0.047 | 0.953 | 90% | SS304 |
1” | 0.047 | 0.953 | 90% | SS316 |
1” | 0.022 | 0.978 | 95% | SS304 |
1” | 0.022 | 0.978 | 95% | SS316 |
1/2” | 0.047 | 0.453 | 82% | SS304 |
1/2” | 0.047 | 0.453 | 82% | SS316 |
1/2” | 0.063 | 0.437 | 76% | SS304 |
1/2” | 0.063 | 0.437 | 76% | SS316 |
1/2” | 0.022 | 0.478 | 91% | SS316 |
1/4” | 0.028 | 0.222 | 78% | SS304 |
1/4” | 0.032 | 0.218 | 76% | SS304 |
1/4” | 0.032 | 0.218 | 76% | SS316 |
1/4” | 0.047 | 0.203 | 66% | SS304 |
1/4” | 0.022 | 0.228 | 83% | SS316L |
Other Specifications as your requests.
Inspection:
Packing:
Wrapped with plastic bags or plastic films, then put into cartons/wooden cases.
