SS 316L Dutch Wire Mesh 0.90X0.71mm To 0.036X0.024mm Plain Weave & Twill Weave

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price 56usd to 2000usd
Packaging Details warp with plastic film and waterproof pater, then in pallets or wooden cases
Delivery Time one month
Payment Terms 30% TT in advance, balance before delivery
Supply Ability 2000rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Surface Treatment Pickling And Passivation, Polishing. Other Metals Including Brass, Copper And Other Alloy Materials.
Type Dutch Wire Mesh Mesh Count Up To 325/2300
Material Stainless Steel 304, 304L, 316, 316L, Etc Thickness 0.086mm To 1.2mm
Application Mainly Used To Filter And Separate Liquid And Slurry Products Color Silver
High Light

Stainless Steel 316L Dutch Wire Mesh

,

ss316L plain dutch weave mesh

,

Twill Weave SS Dutch Wire Mesh

Leave a Message
Product Description

Stainless Steel 316L Dutch Wire Mesh, Wire Diameter 0.90X0.71mm To 0.036X0.024mm, Plain Weave & Twill Weave

Product Description:

Stainless Steel Dutch Wire Mesh is a kind of wire mesh woven with stainless steel wires. It features corrosion resistance, excellent wearability, excellent anti-fatigue properties, and long service life. It is widely used in industrial, commercial, and residential applications. The stainless steel Dutch Wire Mesh is available in different wire diameters ranging from 0.90X0.71mm to 0.036X0.024mm, and a variety of weave types such as plain dutch, twill dutch, and reverse dutch. It also comes in other metals including brass, copper, and other alloy materials. The surface treatment options include pickling and passivation, as well as polishing. The mesh count varies from 70/40 to 325/2300.



Features:

  • Product Name: Stainless Steel Dutch Wire Mesh
  • Type: Dutch Wire Mesh
  • Color: Silver
  • Aperture: 4um To 350um
  • Wire Diameter: 0.90X0.71mm To 0.036X0.024mm
  • Weave Type: Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch
  • Dutch Wire Mesh: 70/40 to 325/2300


Applications:

QIANPU stainless steel dutch wire mesh is made of high quality stainless steel wire, and is mainly used to filter and separate liquid and slurry products. It is available in plain dutch weave, twill ductch weave, with mesh count ranging from 70/40 to 325/2300. The aperture size varies from 4um to 350um, and the length can be customized from 10m, 20m, 30m, 50m and so on. The weight is from 0.43kgs/m2 to 6.45kgs/m2. It is certified by ISO, and has minimum order quantity 10 rolls. The price is from 56USD to 2000USD. It is packaged in warp with plastic film and waterproof pater, then in pallets or wooden cases. The delivery time is one month. Payment terms are 30% TT in advance, balance before delivery. The supply ability is 2000 rolls per month.



Technical Parameters:

Property Value
Material Stainless Steel 304, 304L, 316, 316L, etc.
Type Dutch Wire Mesh
Thickness 0.086mm to 1.2mm
Width 0.2m, 0.5m, 0.9m, 1m, 1.2m, 1.5m, 2.0m, etc.
Wire Diameter 0.90x0.71mm to 0.036x0.024mm
Aperture 4um to 350um
Length 10m, 20m, 30m, 50m or customized
Weight 0.43kgs/m2 to 6.45kgs/m2
Surface Treatment Pickling and Passivation, Polishing
Packing Waterproof Paper and Plastic Film, then in Wooden Cases
Applications Filtration industry, Anti-corrosion


Customization:

Stainless Steel Dutch Wire Mesh
Brand Name: QIANPU
Place of Origin: Anping of China
Certification: ISO
Minimum Order Quantity: 10Rolls
Price: 56usd to 2000usd
Packaging Details: warp with plastic film and waterproof pater, then in pallets or wooden cases
Delivery Time: one month
Payment Terms: 30% TT in advance, balance before delivery
Supply Ability: 2000rolls per month
Aperture: 4um To 350um
Mesh Count: 70/40 to 325/2300
Length: 10m, 20m, 30m, 50m Or Customized
Other metals including: Brass, Copper And Other Alloy Materials.
Surface Treatment: Pickling And Passivation, Polishing.
QIANPU Stainless Steel Dutch Wire Mesh is designed for the filtration industry, and provides a wide range of stainless steel mesh count from 70/40 to 325/2300 meshes, with customized length and aperture. It is made of quality stainless steel and other alloy materials, with pickling and passivation, and polishing surface treatment. It is ISO certified and comes with a minimum order of 10 rolls. Packaging and delivery time is also available. Price range is from 56usd to 2000usd.

Support and Services:

We provide technical support and service for Stainless Steel Dutch Wire Mesh products. Our experienced team of experts are dedicated to providing comprehensive help and assistance with all aspects of the product, from installation and setup to operation and maintenance. We are available to answer any questions you may have and provide advice and solutions tailored to your specific needs.

We are committed to ensuring that our customers get the most out of their Stainless Steel Dutch Wire Mesh product. Our team of dedicated technicians are available to provide on-site technical support for any installation, setup, or maintenance needs. We also offer telephone and online technical support for any questions or concerns you may have.

We strive to keep up with the latest advancements in technology, so you can be sure that our Stainless Steel Dutch Wire Mesh product is always up to date with the latest features and capabilities. We also provide regular updates and maintenance checks to ensure that your product is always running optimally.



Packing and Shipping:

Stainless Steel Dutch Wire Mesh Packaging and Shipping:

The stainless steel Dutch wire mesh is packaged on wooden pallets and securely wrapped with plastic. The pallets are then securely strapped to ensure the safety of the mesh during transportation. If necessary, additional protective packaging material can be used to further secure the product for delivery. The pallets are then loaded onto trucks or ships for transport.

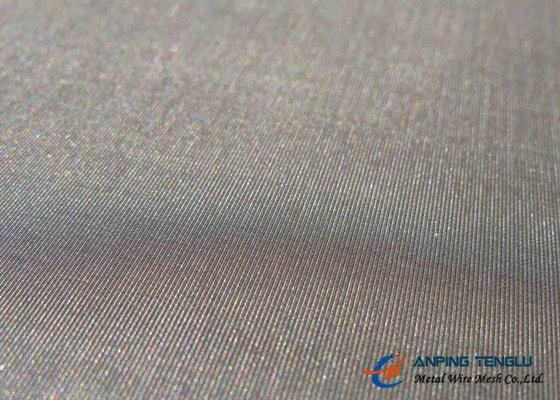

 SS 316L Dutch Wire Mesh 0.90X0.71mm To 0.036X0.024mm Plain Weave & Twill Weave 0

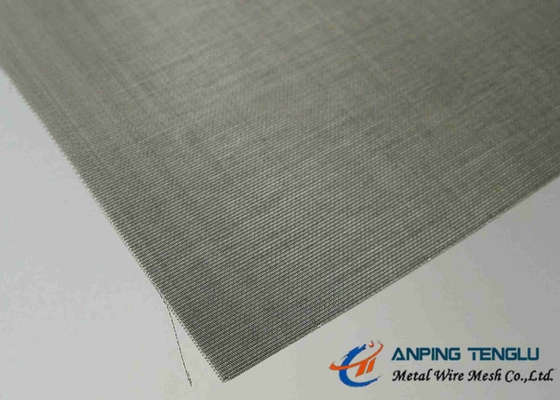

SS 316L Dutch Wire Mesh 0.90X0.71mm To 0.036X0.024mm Plain Weave & Twill Weave 1



FAQ:

  • Q: What is the brand name of Stainless Steel Dutch Wire Mesh? A: The brand name is QIANPU.
  • Q: Where is the origin of Stainless Steel Dutch Wire Mesh? A: The origin is Anping of China.
  • Q: Does the Stainless Steel Dutch Wire Mesh have certification? A: Yes, the Certification is ISO.
  • Q: What is the Minimum Order Quantity of Stainless Steel Dutch Wire Mesh? A: The Minimum Order Quantity is 10Rolls.
  • Q: What is the Price for Stainless Steel Dutch Wire Mesh? A: The Price is from 56usd to 2000usd.
