25mm Opening 2.5mm Ss Welded Wire Mesh Square Hole Galvanized
Place of Origin | Anping of China |
---|---|
Brand Name | QIANPU |
Certification | ISO |
Minimum Order Quantity | 50 Panels |
Price | Negotiable |
Packaging Details | Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets. |
Delivery Time | 20 days |
Payment Terms | T/T, Western Union, L/C |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Prevent Rusting | Product Name | Galvanized Welded Wire Mesh |
---|---|---|---|
Material | Galvainzed Wire | Standard | ASTM, Australian Standard |
Type | Welded | Hole Shape | Square Hole |
Surface Treament | Weld After Galvanized And Weld Before Galvanized | Opening Size | 25mm |
Width | 1.2m, 2m, Etc | Application | Security Fencing, Mesh Container, Cages, Etc |
Highlight | 25mm opening ss welded wire mesh,2.5mm ss welded wire mesh,galvanized square hole stainless welded mesh |

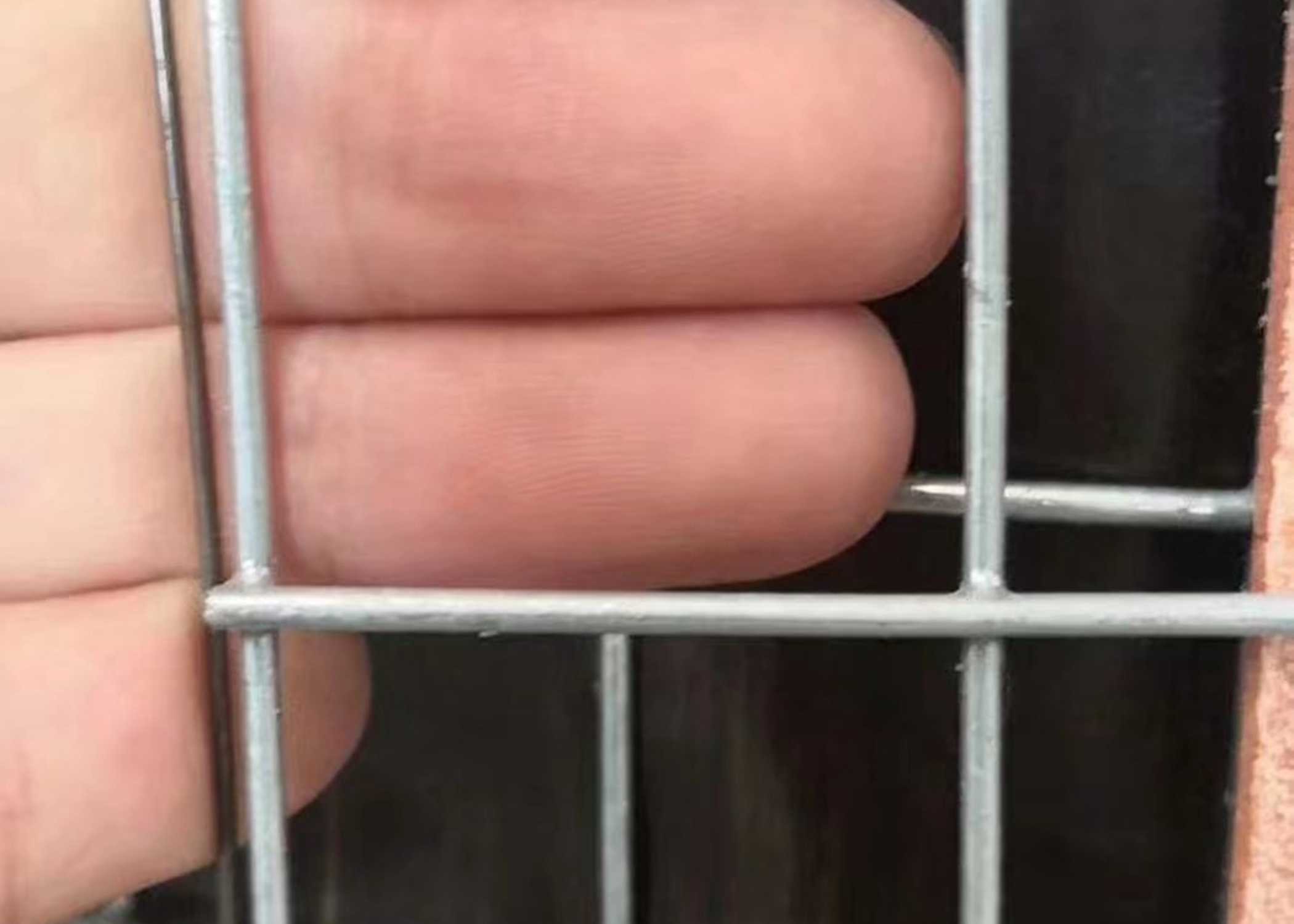

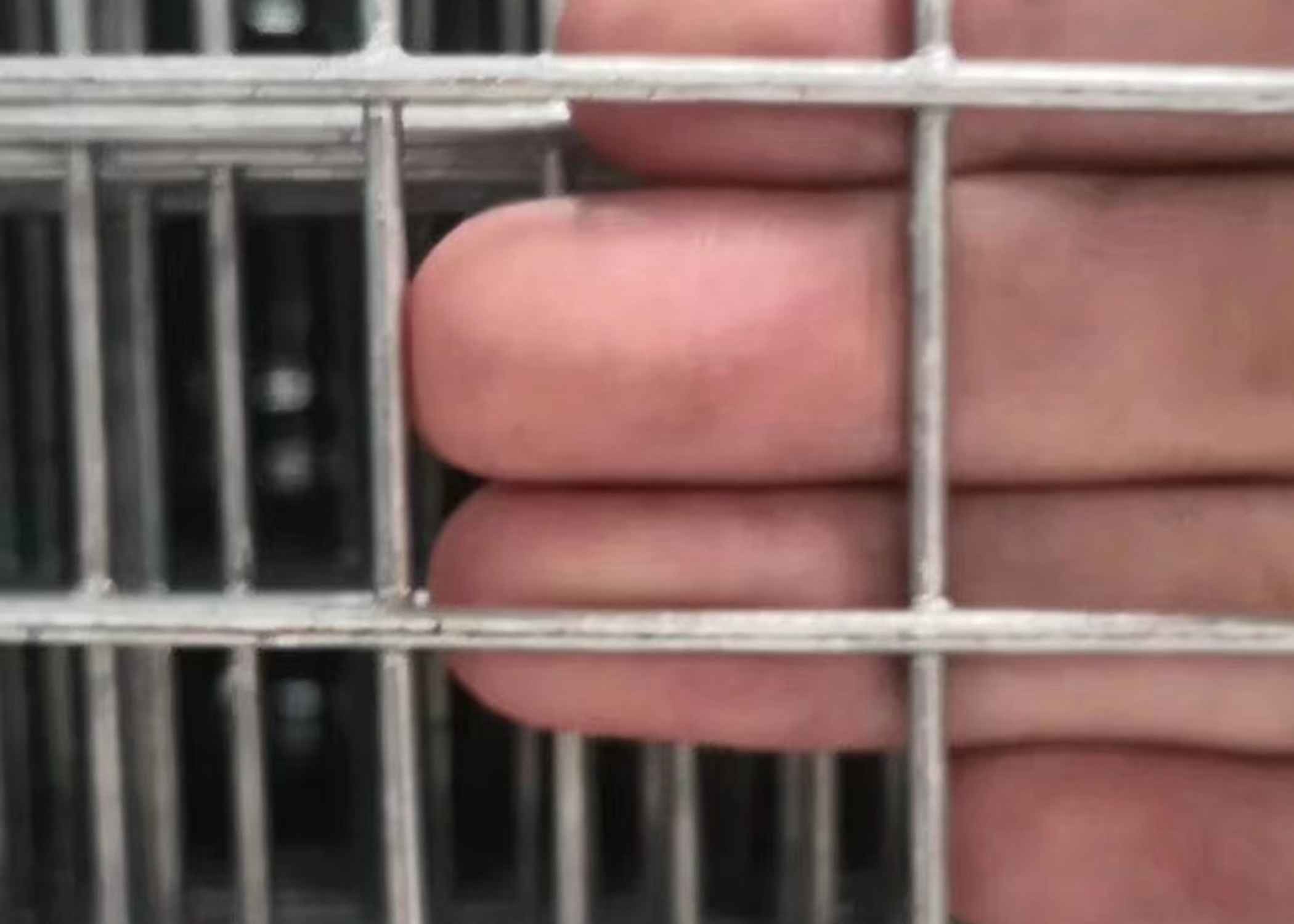

25mm Opening 2.5mm Wire Square Hole Galvanized SS Welded Wire Mesh
Galvanized Welded Wire Mesh
Welded wire mesh is one popular materials in concrete, construction and industry. It is made of low carbon steel wire, stainless steel wire after welding and surface treating. Welded wire mesh fabric is widely used in building construction, protection system, filtration, food, agriculture and so on.
Hot-Dipped galvanized welded wire mesh panels/sheets or rolls are generally made up of plain steel wire. At the time of processing it goes through a hot zinc covering process. This type of welded mesh ware with square opening is ideal for animal cage structuring, fabricating the wire boxes, grilling, partition making, grating purposes and machine protection fencing.
Hot-Dipped galvanized welded wire panels or rolls characteristics: flat and uniform surface, firm structure, good integrity and excellent good corrosion resistant.
This type of welded wire have two processing in manufacturing process, galvanizing welded mesh before or after welding. The galvanized welded wire mesh after welding is better than before welding for the corner of welding. With the hot-dipped galvanizing, welded wire can prevent corrosion in daily application.
Material:
Hot dipped galvanized steel/ iron wire
Electronic galvanized steel/ iron wire
Galvanized and Welded: Weld after galvanzied and Weld before galvanized
Galvanizing can occur either before or after wire mesh is manufactured – both in woven form or welded form. Galvanized before woven wire mesh or galvanized before welded wire mesh indicates the individual wires, themselves, used to manufacture the mesh have been galvanized before the mesh is woven or welded. Depending on the mesh (or opening size) and diameter wire, this is usually the less expensive option, especially if custom manufacturing is required.
Galvanized after woven and galvanized after welded wire mesh is exactly as it sounds. The material is manufactured, normally in carbon or plain steel, and is often placed in a galvanizing tank, thereby producing a galvanized after woven or welded specification. Generally speaking, this option is more expensive, depending on availability and other variables, but does offer a higher level of corrosion resistance. This added level of corrosion resistance is most noticeable at the joint or intersection of galvanized after welded wire mesh specification.
Specifications:
Opening Size | Wire Diameter | ||
Inch | mm | SWG | mm |
1/4" × 1/4" | 6.4 mm × 6.4 mm | 22# - 24# | 0.6 mm - 0.7 mm |
3/8" × 3/8" | 10.6 mm × 10.6 mm | 19# - 22# | 0.7 mm - 1.0 mm |
1/2" × 1/2" | 12.7 mm × 12.7 mm | 16# - 23# | 0.6 mm - 1.6 mm |
5/8" × 5/8" | 16 mm × 16 mm | 18# - 21# | 0.8 mm - 1.2 mm |
3/4" × 3/4" | 19.1 mm × 19.1 mm | 16# - 21# | 0.8 mm - 1.6 mm |
1" × 1/2" | 25.4 mm × 12.7 mm | 16# - 20# | 0.9 mm - 1.6 mm |
1" × 1" | 25.4 mm × 25.4 mm | 14# - 21# | 0.8 mm - 1.2 mm |
1 1/2" × 1 1/2" | 38 mm × 38 mm | 14# - 19# | 1.0 mm - 2.0 mm |
1" × 2" | 25.4 mm × 50.8 mm | 14# - 16# | 1.6 mm - 2.0 mm |
2" × 2" | 50.8 mm × 50.8 mm | 12# - 16# | 1.6 mm - 2.6 mm |
2" × 3" | 50 mm × 75 mm | 13# - 16# | 1.6 mm - 2.3 mm |
3" × 3" | 75 mm × 75 mm | 12# - 16# | 1.6 mm - 2.6 mm |
2" × 4" | 50 mm × 100 mm | 13# - 14# | 2.0 mm - 2.3 mm |
4" × 4" | 100 mm × 100 mm | 13# - 14# | 2.0 mm - 2.3 mm |
8" × 8" | 200 mm × 200 mm | 13# - 14# | 2.0 mm - 2.3 mm |
Other sizes as your special request.
Hole Opening: 25mm or 1"
Features:
It can withstand the corrosion caused by atmospheric / environmental or major chemical reactions.
It can resist high temperatures without going under any deformity which makes it highly recommended for fire ety doors in any building.
It has remarkable creep strength and Rupture strength.
It repels the Bacteria which makes it ideally suitable material for the venue such as Hospitals, educational Institutes, Hotels and even at home and office where higher degree of hygiene is required.
Due to its natural finish, product does not require regular cleaning or maintenance making it most suitable for public places.
Applicatioins:
Galvanized is not a metal or alloy; it is a process in which a protective zinc coating is applied to steel to prevent rusting. In the wire mesh industry, however, it is often treated as a separate category because of its wide spread use in all types of applications. Some of the more popular uses and applications of galvanized wire mesh are listed below:
Fencing, caging & enclosures
Farm, garden & agricultural use
Window & ety guards
Archeological use
Building & construction projects
Infill panels
High security applications
Landscaping & gabions
Wall & stone retention
Greenhouse use
Particle separation
General industrial use
Packing:
Each roll with polyfilm with water proof paper, outside wooden pallets.
