Product Details
Features Firm Structure Product Name Wedge Wire Screen
Material Stainless Steel Profile Wire Triangle Wire
Support Rod Triangle Wire, Round Rod, Flat Bar, Wedge Wire Slot Size 0.05mm To 10.0mm
Panel Width 500mm - 2000mm Panel Length 500mm - 3000mm
Applications Sieving And Filtration Standard AISI, DIN, SUS, Etc
Highlight

10mm Wire Mesh Filters

,

0.05mm Wire Mesh Filters

,

2000mm ss mesh filter
Leave a Message
Product Description

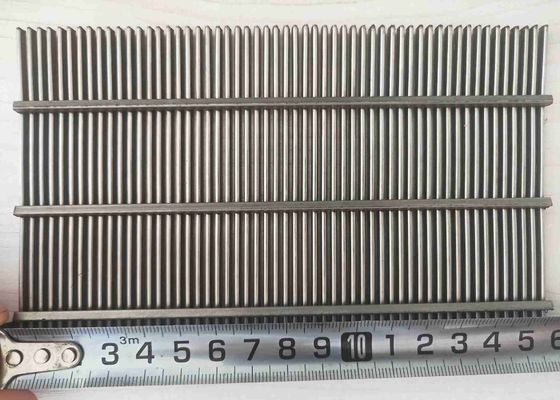

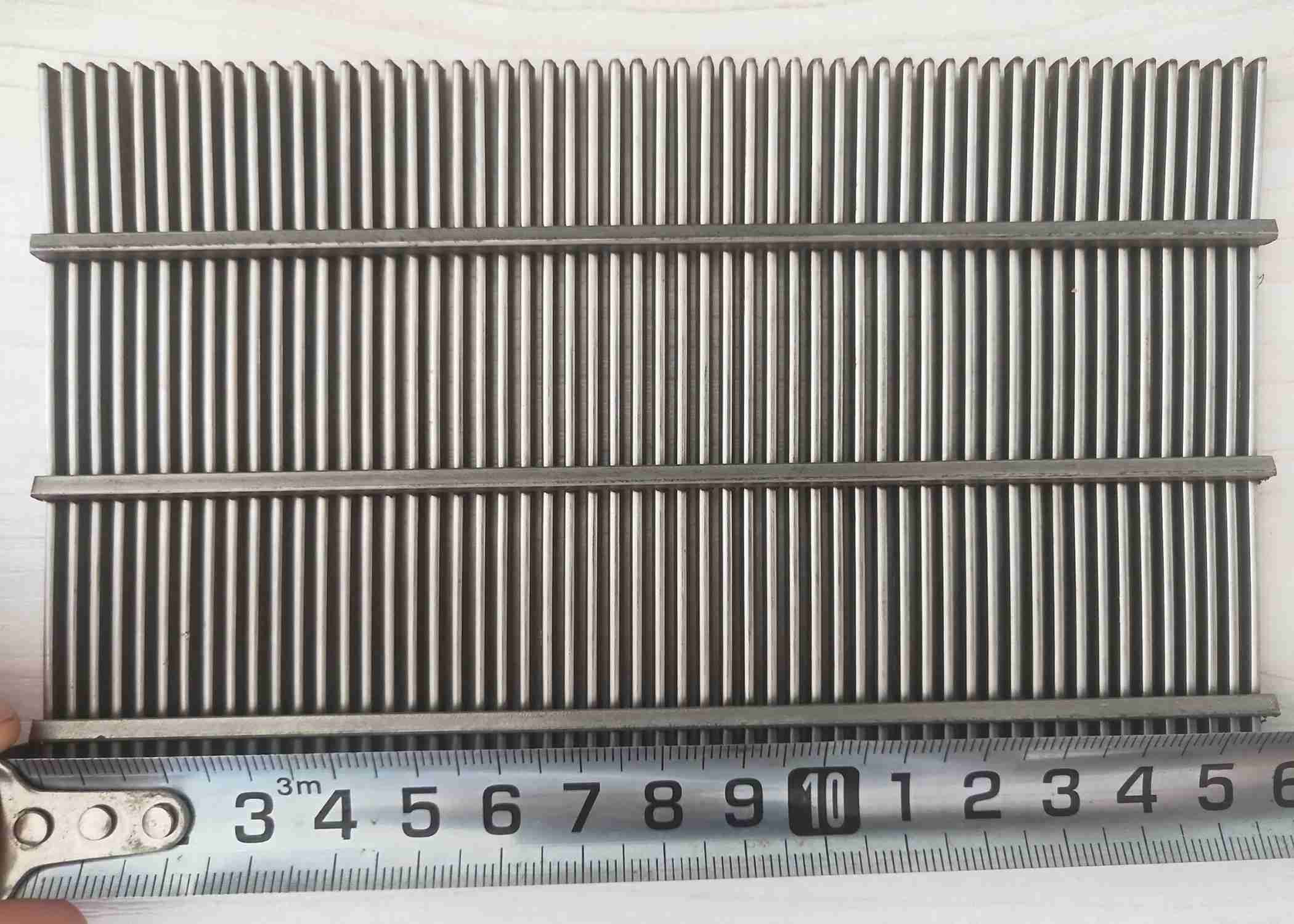

Flat Type Screen 0.05mm to 10mm Slot Hole Stainless Steel Wedge Wire Screen

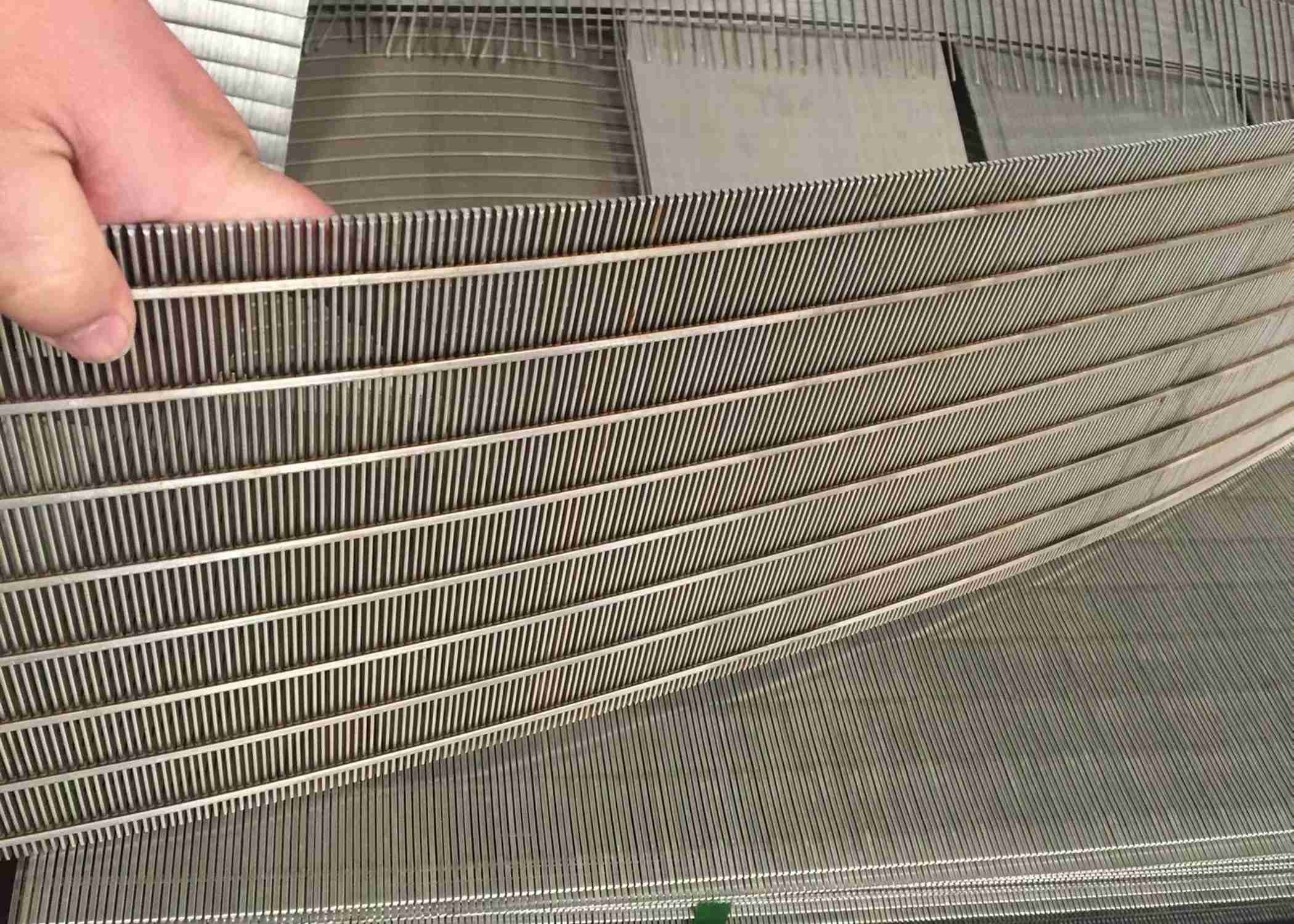

Wedge Wire Screen Flat Panels/Flat Wedge Screen Panels



Welded wedge wire screen panels can be constructed using rectangular support rods or round support rods. They are the most widely used type of wedge wire screens mainly in the mineral processing both for stationery as well as vibratory decks.



Wedge wire screen panels, also called wedge wire flat screens, wedge wire panels. Wedge wire is a welded steel structure, where the surface profiles are welded at each intersection at 90° angles onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows. Mainly used for filtration, separation and retention media.



Materials: Stainless Steel 304, 304L, 316, 316L, etc.



Flat Wedge Screen Panesl Specifications:



Slot size: 0.05mm - 10mm.
Panel width: 500mm - 2000mm.
Panel length: 500mm - 3000mm.



Slot Size

(mm)

 Profile Wire(mm) Support Rod(mm)
Triangle Wire Triangle Wire Round Rod Flat Bar Wedge Wire
0.05 0.5×1, 1×2 - - -
0.10 - - -
0.15 - - -
0.20 2, 3 - -
0.25 2, 3 - -
0.3 1.5×4, 2.2×3.5, 2.2×4.5, 2.8×5 2, 3 - -
0.4 2.2×3.5, 2.2×4.5, 2.8×5.0, 3.1×6.0, 2.8×6.5, 3.4×7.5 3, 4, 5, 6 - -
0.5 2×25, 3×25, 4×25 3×5, 4×6, 4×7.5
0.6
0.7
0.8 1.5×4, 1.8×3, 2.2×3.5, 2.2×4.5, 2.2×5, 2.3×3.8, 2.6×4.3, 2.7×4.2, 2.8×5, 2.8×6.5, 2.8×8, 2.8×10, 2.9×4.7, 3.1×6, 3.2×5.5, 3.4×7.5, 3.5×5.7, 5×7, 5×10, 6.8×9.4, 8.5×11.5 4, 5, 6, 7, 8
0.9
1.0
1.5
2.0
2.5
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0



Other specifications as your requests.



0.05mm To 10mm Wire Mesh Filters 0



Technical Parameter of Flat Wedge Screen:



0.05mm To 10mm Wire Mesh Filters 1



Slot Size (S): The distance between each profile wire.

Profile Wire: Triangle wire is common type.

Support Rod: Triangle wire is common type. It can also be round rod, flat bar, wedge wire.

Support Rod Distance (P): The distance between each support rod.



Features:



Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.
High-precision slot sizes: precise slot sizes are available to meet customer´s requirements.
Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.
Low pressure-drop.
Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.



Applications:



Flat wedge wire screens are used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centers or malls. It can also solve the problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.



The flat wedge screens have the round type, square type, rectangular type. The detailed specification of profile wire and support rod can be supplied as special application.



Packing:



Wedge wire screen panels are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.
