Stainless Steel Decorative Woven Wire Mesh

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Aesthetic And Attractive Appeal. | Product Name | Cable And Rod Metal Mesh Screen |
---|---|---|---|
Material | Stainless Steel, Aluminum, Brass, Etc | WeaveType | Cable Rod Type |
Wire Pitch | 1.5mm - 120mm | Wire Diameter | 1.2mm - 4mm |
Rod Diameter | To 8mm | Max Width | 6m |
Max Length | 120m | Appliation | Facade, Celing, Screen, Partitions, Etc |
Highlight | TENGLU 1.75mm Stainless Steel Decorative Woven Wire Mesh,TENGLU 1.75mm Decorative Woven Wire Mesh,120mm stainless steel wire mesh |

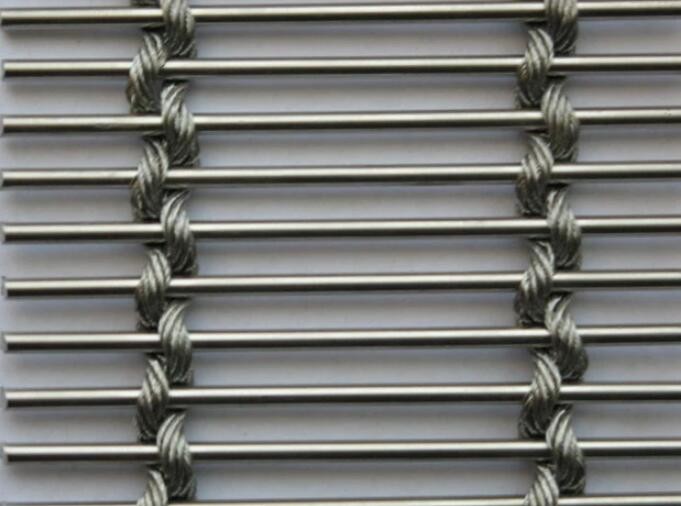

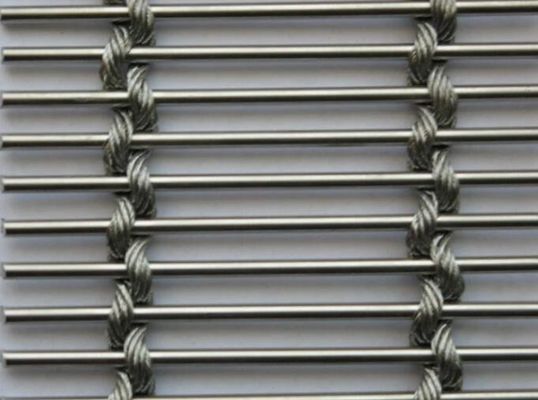

Stainless Steel Internal Desgin Cable and Rod Metal Mesh Screen
Introduction:
Cable and Rod Metal Mesh for Architecture and Decoration Stainless Steel Cable Rod Woven Mesh is made of the bar or metal cable.It is composed of various patterns of transverse metal bar passing through the vertical metal cable. The materials used include stainless steel and high strength corrosion resistant chromium steel.
Its inherent stability and varying degrees of transparency make crimped wire building facade mesh become an incredible versatile mesh suitable for many interior and exterior applications. We can offer you various styles of crimped wire mesh for building facade.
Cable Rod Architectural Decoration Specifications:
Rod Cable Mesh Specifications |
|||||||
Material |
Cable Dia. |
Cable Pitch |
Rod Dia. |
Rod Pitch |
Thickness |
Max Width |
Max Length |
SS |
1mm×4 |
26.4mm |
1.5mm |
4mm |
3.5mm |
6m |
120m |
SS |
2.75mm×2 |
40mm |
4mm |
14.5mm |
9.5mm |
6m |
60m |
SS |
2.75mm×3 |
110mm |
4mm |
14.5mm |
9.5mm |
6m |
60m |
SS |
2.5mm×4 |
80mm |
3mm |
6.5mm |
8mm |
6m |
60m |
SS |
2mm×3 |
65mm |
3mm |
13mm |
7mm |
6m |
120m |
SS |
2.75mm×3 |
120mm |
4mm |
13mm |
9.5mm |
6m |
100m |
SS |
2mm×4 |
50mm |
3mm |
6mm |
7mm |
6m |
60m |
SS |
2mm×4 |
44mm |
3mm |
6mm |
7mm |
6m |
60m |
SS |
2mm×4 |
76mm |
3mm |
6mm |
7mm |
6m |
60m |
SS |
2mm×3 |
80mm |
3mm |
10mm |
7mm |
6m |
120m |
SS |
1mm×4 |
36mm |
2mm |
3.75mm |
4mm |
6m |
120m |
SS |
1mm×4 |
36mm |
2mm |
4mm |
3.5mm |
6m |
120m |
SS, Al |
2.5mm×4 |
50mm |
3mm |
7mm |
8mm |
6m |
100m |
SS |
2mm×4 |
80mm |
3mm |
7mm |
7mm |
6m |
100m |
SS |
2.5mm×4 |
50mm |
3mm |
6mm |
8mm |
6m |
60m |
SS |
4mm×4 |
47.5mm |
3mm |
15mm |
11mm |
6m |
100m |
SS |
2.75mm×3 |
68mm |
4.5mm |
14.5mm |
10mm |
6m |
100m |
SS |
2.5mm×5 |
85mm |
2mm |
6mm |
7mm |
6m |
100m |
SS |
2mm×5 |
50mm |
3mm |
10mm |
7mm |
6m |
100m |
SS, Al |
2mm |
6mm |
2mm |
8mm |
6mm |
3m |
30m |
SS |
1.6mm |
3.2mm |
0.6×1.75mm |
6mm |
3.8mm |
4m |
30m |
SS |
3mm |
5mm |
3mm |
10mm |
9mm |
6m |
30m |
SS, Al |
1.6mm |
3.2mm |
3mm |
10mm |
6.2mm |
3m |
30m |
Cu |
0.48mm |
3.5mm |
0.5mm |
1.6mm |
1.5mm |
4m |
120m |
SS |
2.5mm |
7mm |
2mm |
7mm |
7mm |
4m |
36m |
SS |
2.5mm |
5mm |
2mm |
6mm |
7mm |
6m |
60m |
SS |
2.5mm |
6mm |
2mm |
8mm |
7mm |
4m |
60m |
SS |
2.5mm |
6mm |
2mm |
8mm |
5mm |
4m |
30m |
Note: “SS”-Stainless Steel; “Cu”-Copper; “Al”-Aluminum. |
Special without in the chart is available as your request.
Material: Stainless Steel, Aluminum, Copper.
Features:
Aesthetic and attractive appeal.
High strength and unique texture.
Bright transparency and refined structure.
Fashionable design and practical function.
UV resistance and fire resistance.
Shock resistance and impact resistance.
Excellent sound insulation and ety performance.
More optional choice and long service life.
Applications:
Facade, Celing, Screen, Partitions, Elevators, Walls, Curtains, ety and Security, Column Covers, Interior Design, Solar Management, etc.
Seaworthy Packing: waterproof film then in carton or wooden case.
